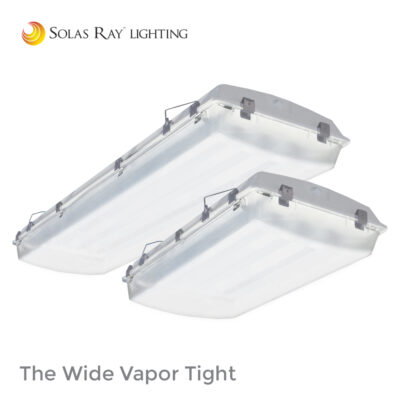

SVW Series – The Wide Vapor Tight
Weatherproof Industrial LED Lighting
CERTIFICATIONS / RATINGS
• UL Listed
• IP65 / IP66 / IP67
• NEMA 4X
• NSF
• RoHS Compliant
• UL-F1 Rated
• DLC Listed*
• See Specification Sheet For Complete Listing
KEY FEATURES AND BENEFITS
• Weatherproof wide area lighting for wet location and wash-down applications.
• Stainless steel cam latches are included standard.
• UL 5VA fiberglass enclosure (will not melt or burn).
• UL approved for through wiring.
• Poured in place gasket and cam latches seal the fixture.
• Occupancy sensor and emergency battery options available.
• Acrylic lens option is impact modified and recommended in areas with UV exp.
• Polycarbonate lens option is best in extreme temperature and high abuse areas.
• Lenses available in ribbed or smooth, frosted or clear.
• 0-10 V dimmable.
• 2ft and 4ft lengths available.
• UL F1 rated (suitable for outdoor use/exposure to ultraviolet light).
• Buy American Act compliant. BABA compliant.
DOWNLOADS
SPECIFICATIONS
| Voltage | 120-277 / 347-480 VAC |
| Wattage | 72W / 108W / 144W / 148W / 185W / 222W / 258W / 293W |
| Color Temp | 3000 / 3500 / 4000 / 5000 Kelvin |
| Housing | UL 5VA Fiberglass |
| Color | White |
| Lens | Acrylic / Polycarbonate |
| Ambient Temperature | -30°C (-22°F) to 45°C (113°F) |
| Lifetime | >50,000 hrs L70 |
| CRI | >80 |
| Power Factor | >0.90 |
| Protection | IP65 / IP66 / IP67 |
| Entrance | 1/2” diameter hole |
| Warranty | 5 Year Limited Warranty |
LUMENS (SVW2 – 2′ Models)
| 72W | 108W | 144W |
| ~10,000 | ~15,000 | ~20,000 |
LUMENS (SVW4 – 4′ Models)
| 148W | 185W | 222W | 258W | 293W |
| ~20,000 | ~25,000 | ~30,000 | ~35,000 | ~40,000 |
*64 configurations are DLC 5.1 qualified. Consult factory for more information.
See specification sheet for product ordering selection, mounting options, weights and dimensions.
