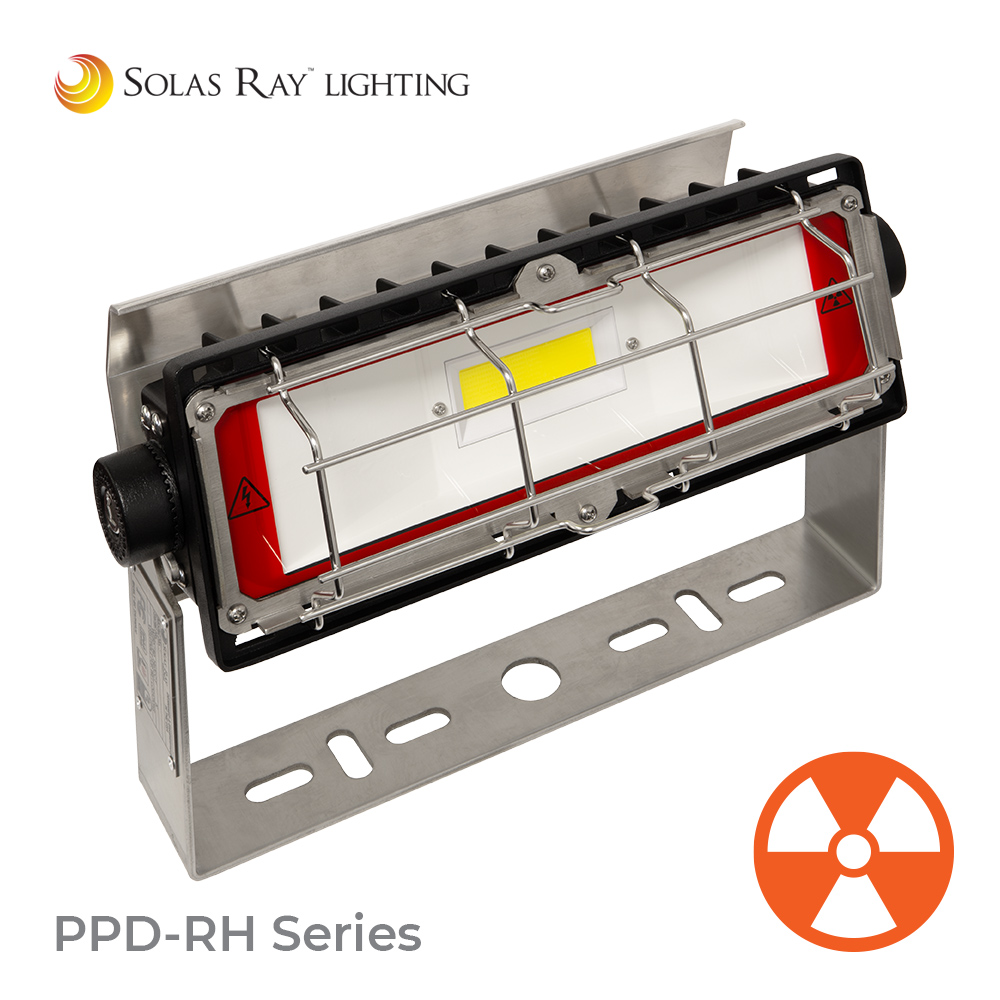

PPD-RH Series – Radiation Hardened / Nuclear Ready LED Lighting
300 kGy / 30 Mrad rated LED Light
GAMMA radiation exposure was tested in ENEA – National Atomic Energy Research Institute (NARI). GAMMA dose speed – 3.3 kGy/h.
CERTIFICATIONS / RATINGS
• UL Listed
• UL1598
• IP68
• FCC
• See Specification Sheet For Complete Listing
KEY FEATURES AND BENEFITS
• Radiation hardened LED task light engineered for temperature extremes, wet environments, and long term reliability.
• Certified radiation resistance up to 300kGy / 30Mrad (megarad)
• Features radiation-resistant components and multiple shielding solutions to increase longevity in high radiation environments.
• LED module features several layers of radiation protection.
• Ambient temperature range of -80°C (-112F) to 115°C (239°F).
• Great solution for punishing environments.
• Proprietary Driver-on-board (driver-less) LED modules.
• Replaceable LED modules for low long term cost and long fixture life.
>15kV surge protection.

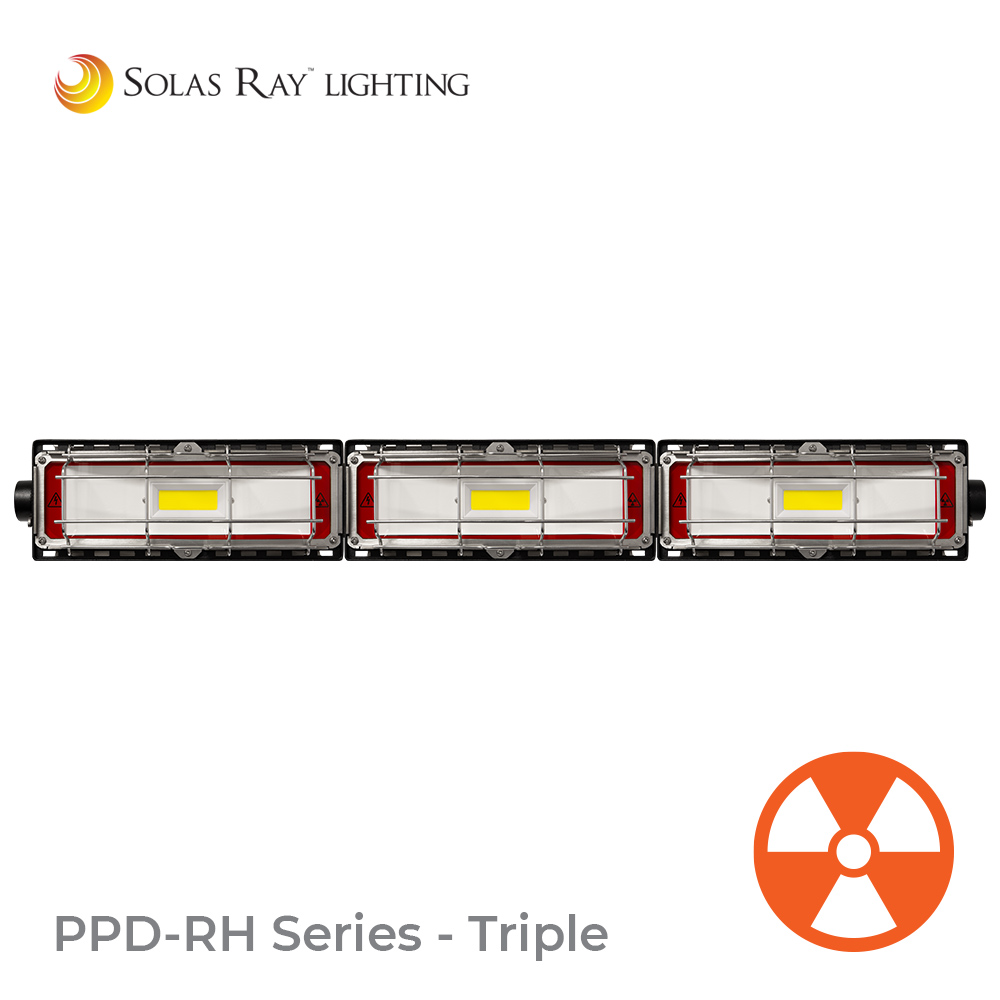

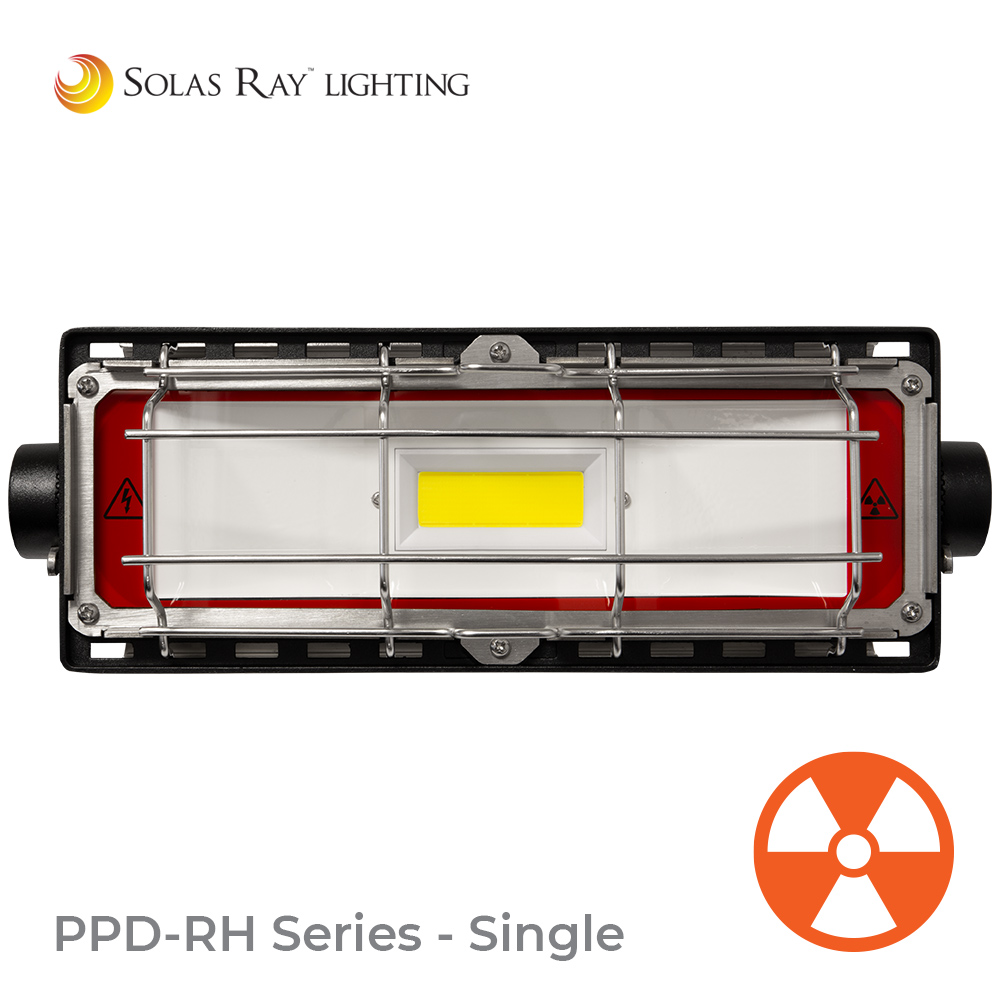

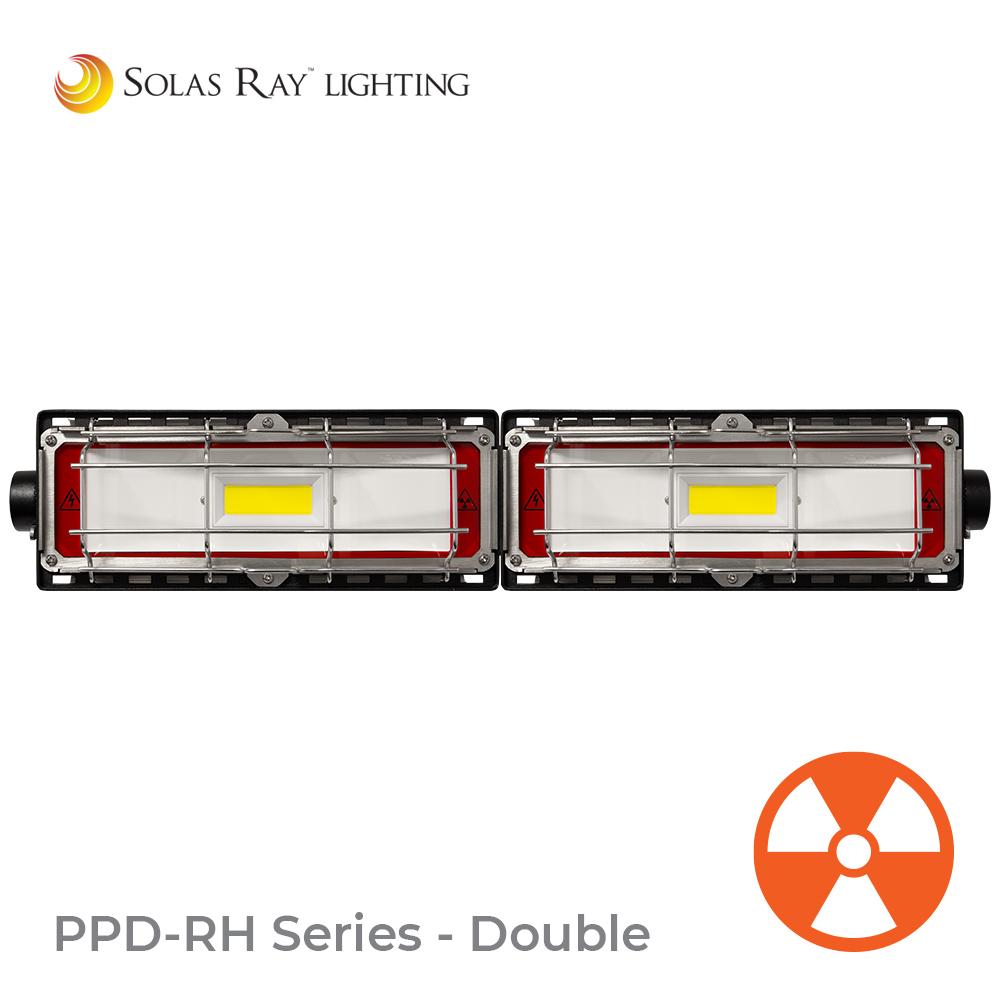

• Available in single, double or triple configurations.
• High vibration resistance featuring Nord-Lock® washers.
• Optional chemical repellent PVDF coating for extra tough corrosion resistance.
• AWM style 4476 – 600V / 200°C rated power cord / stainless steel cable gland.
• Trade Agreement Act Compliant.
• *Not rated for safety-related nuclear zones. See information at the bottom of this page.
EXTENSIVE RADIATION HARDENING
Engineered for extreme radiation environments up to 300kGy – the ideal solution for nuclear facilities, particle accelerators, and radiation-intensive medical centers. The PPD-RH series includes multiple anti-radiation measures to protect against high-energy, low-energy, alpha, beta, gamma, X-rays and neutron radiation. SEE SPECIFICATION SHEET P2 FOR MORE DETAILS.
DOWNLOADS
APPLICATIONS INCLUDE
Nuclear Power Plants
• (Non-Safety-Related-Zones)
• SMR – Small Modular Reactors
• Peripheries & maintenance corridors
• Waste processing & auxiliary buildings
• Dry cask storage facilities
• Fusion reactors
• Containment buildings
Nuclear Fuel Reprocessing & Storage
• Fuel pool lighting
• Gamma/Neutron shielded areas
• WMB (waste management buildings)
• SFDS (spent fuel dry storage areas)
• LILRW (low and intermediate level radioactive waste buildings)
Medical Radiation Facilities
• Gamma knife & particle therapy rooms
• Radiation-shielded labs
Defense & Military Installations
• Nuclear warhead assembly facilities
• Underground command bunkers
• Nuclear testing facilities
Research Institutes & Particle Accelerators
• Collider tunnels
• Synchrotron radiation stations
Other
• Industrial radiography detection areas
SPECIFICATIONS
| Voltage | 120VAC / 277VAC / 347VAC / 480VAC |
| Wattage | 20W / 35W / 40W / 60W / 70W / 105W |
| Color Temp | 5000 Kelvin |
| Housing | Die-cast aluminum |
| Color | Black |
| Lens | 5mm Quartz Glass |
| Ambient Temperature | -80°C (-112F) to 115°C (239°F) |
| Lifetime | ~100,000 hrs L70 @ 65°C |
| ~26,280 hrs L70 @ 105°C | |
| CRI | >70 |
| Beam Angle | 110° |
| Protection | IP68 |
LUMENS (20W Modules)
| PPD-20X1 | PPD-20X2 | PPD-20X3 |
| 2,500 | 5,000 | 7,500 |
LUMENS (35W Modules)
| PPD-35X1 | PPD-35X2 | PPD 35X3 |
| 4,375 | 8,750 | 13,125 |
*SAFETY-RELATED NUCLEAR ZONES
The PPD-RH Series of nuclear ready LED lights are not rated for safety-related nuclear zones. These special zones require additional testing and certification beyond their ability to survive in high radiation environments and may require hazardous location rated fixtures. In a nuclear power plant, safety-related zones are areas containing systems, structures, and components whose proper functioning is crucial for preventing or mitigating the release of radioactive materials that could harm the public or the environment. These zones are defined by their critical role in maintaining reactor safety, ensuring safe shutdown, and preventing uncontrolled releases during design-basis events.
See specification sheet for product ordering selection, mounting options, weights and dimensions.
