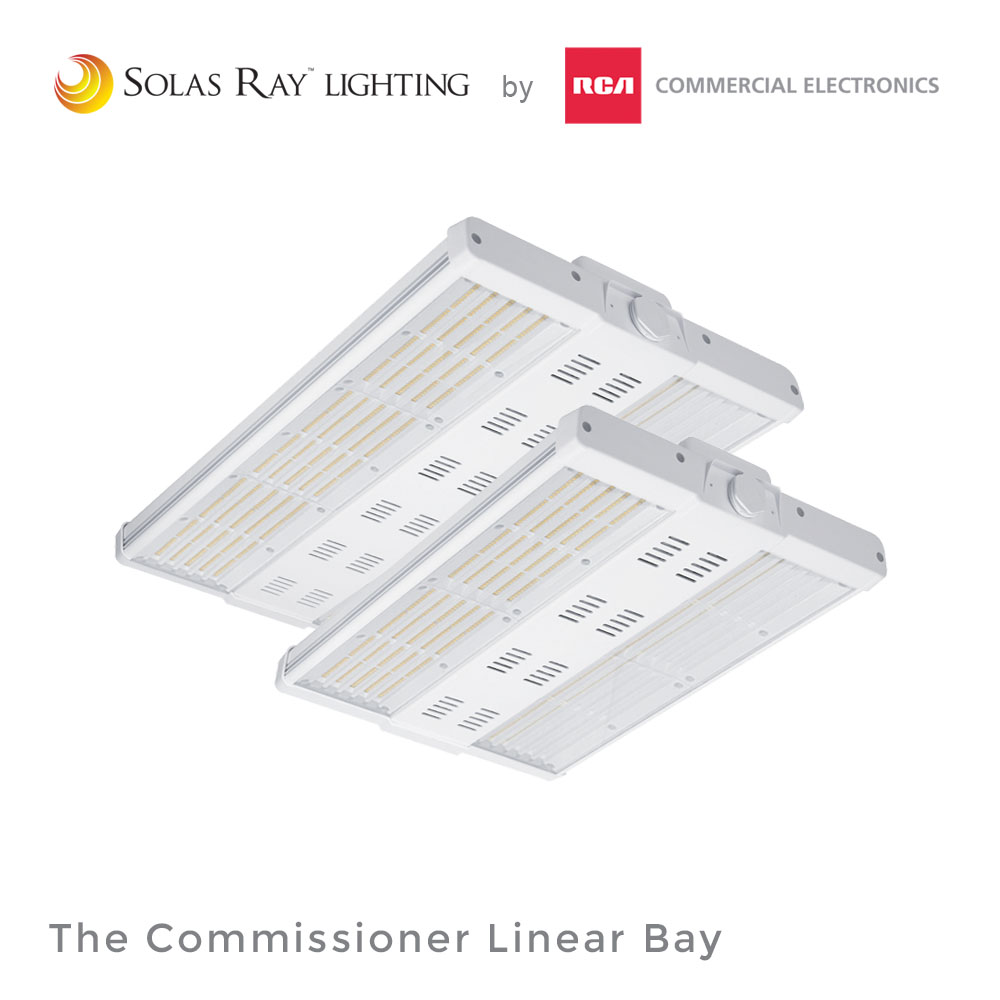

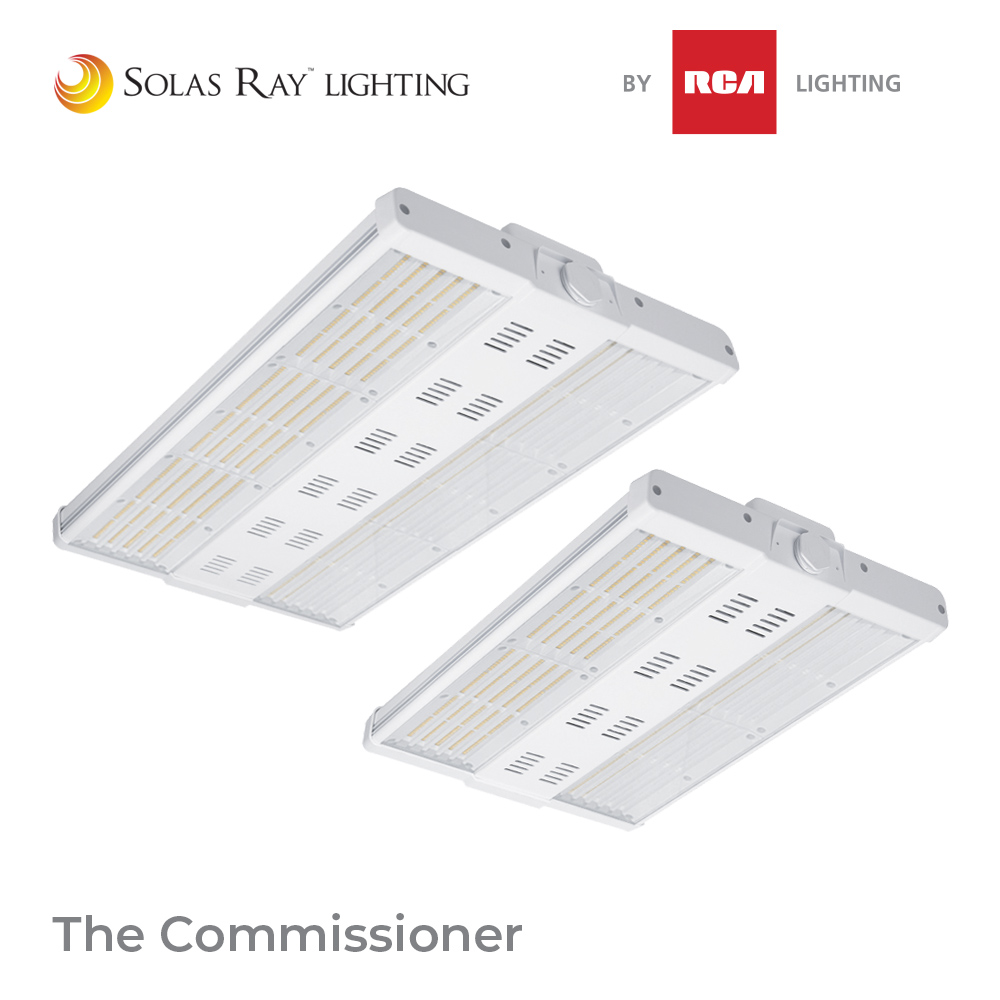

HB Series – The Commissioner™
Wireless Control High Bay Lighting System
CERTIFICATIONS / RATINGS
• UL Listed
• DLC 5.1 Premium
• UL1598
• RoHS Compliant
FEATURES AND BENEFITS

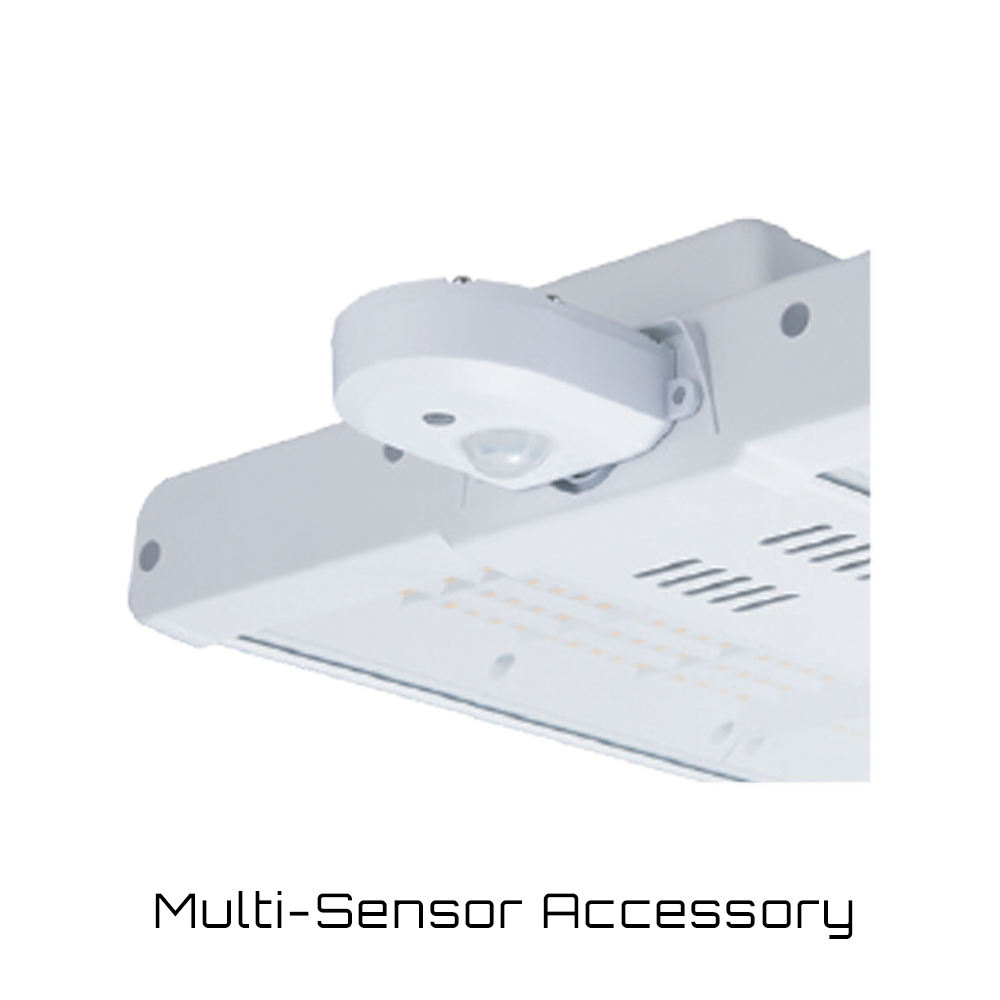

• Field installable occupancy sensor / wireless module multi-sensor.
• ZigBee® ready bay light quickly converts to a SMART (IOT) product with Sensor Connect feature.
• Easy Commissioning High and Low Bay Lighting.
• High-bays and sensors stocked and sold separately.
• Compact size. 28” by 14” fixture offers up to 36,000 lumens. 19” by 14” fixture offers up to 24,000 lumens.
• DLC 5.1 Premium listed.
• Wide and narrow light distribution patterns.

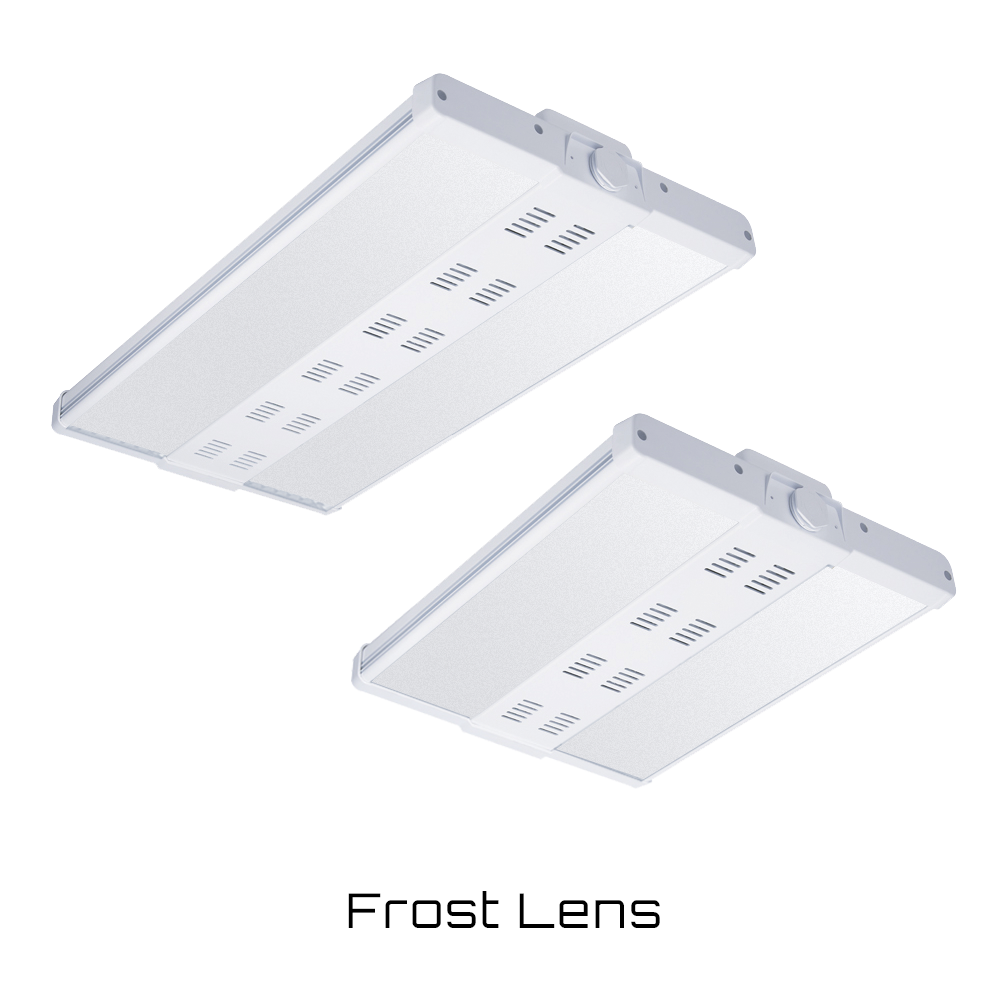

• Clear and frosted lens options for product performance and application flexibility.
• Lightweight extruded aluminum housing design.

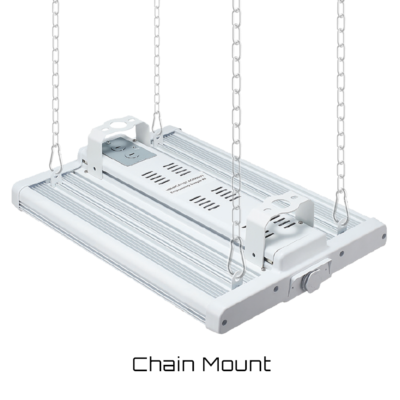

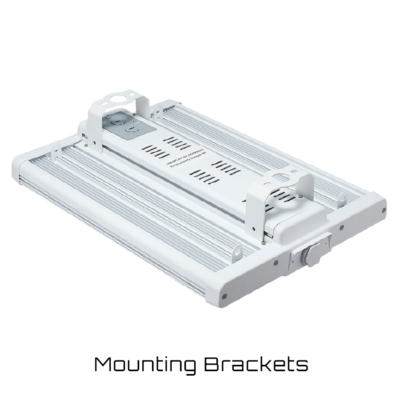

• Aircraft cable mounting kit included, with multiple mounting options available.
• 0-10v dimming.
• Trade Agreement Act compliant.
DOWNLOADS
SPECIFICATIONS
| Voltage | 120 – 277 VAC |
| Wattage | 80W / 160W / 240W |
| Color Temp | 4000 / 5000 Kelvin |
| Housing | Aluminum alloy |
| Color | White |
| Lens | Polycarbonate (clear or frosted*) |
| Lifetime | 70,000 hrs L70 |
| CRI | 80+ |
| Beam Angles | 110°x 60°* (aisle) / 110°x 110° (wide) |
| Ambient Temperature | -30°C (-22°F) to 50°C (122°F) |
| Power Factor | ≥ 0.90 |
| Efficacy | Up to 150 lm/W |
| Warranty | 5 Year Limited Warranty |
LUMENS
| Kelvin | 80W | 160W | 240W |
| 5000K | 12,000 | 24,000 | 36,000 |
| 4000K | 11,700 | 23,400 | 35,000 |
See specification sheet for product ordering selection, mounting options, weights and dimensions.
