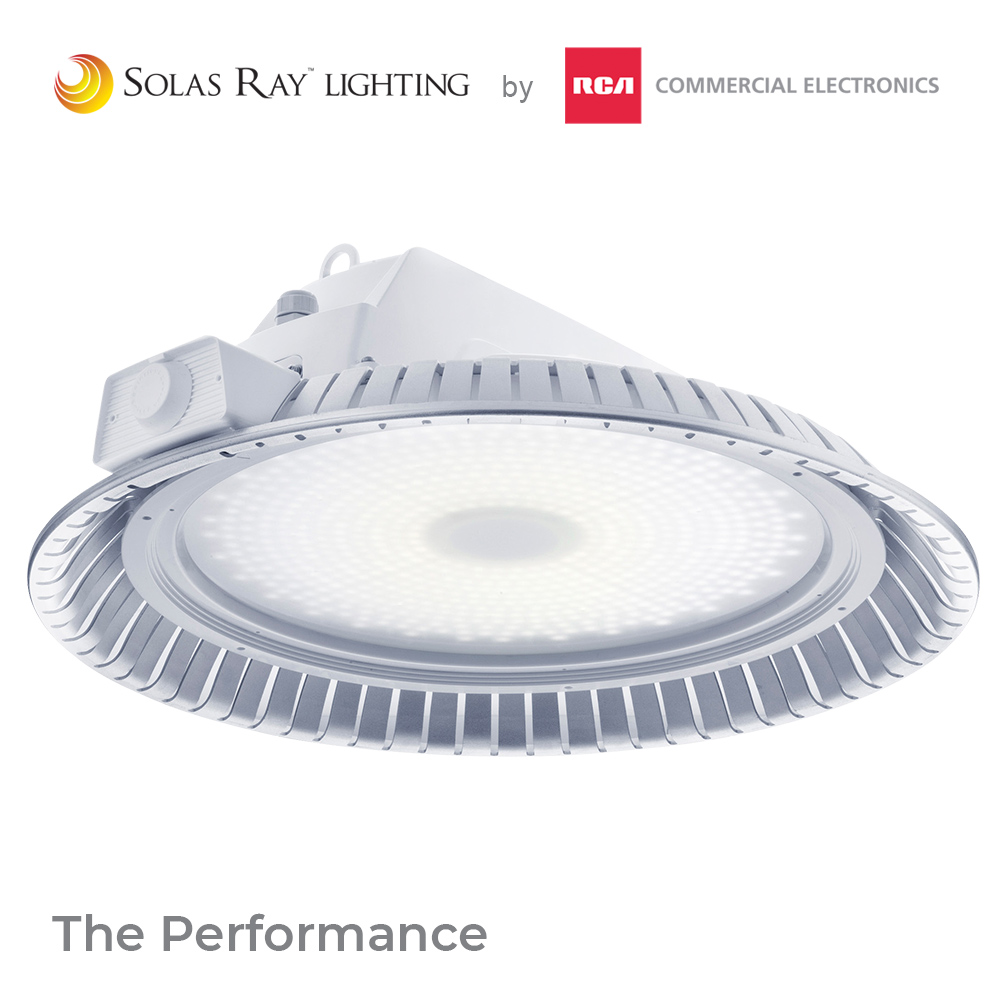

HB Series – The Performance™ High Bay
Wireless Control High Bay Lighting System
CERTIFICATIONS / RATINGS
• UL Listed
• DLC 5.1 Premium
• IP65
• NSF Rated
FEATURES AND BENEFITS
• ZigBee® ready bay light quickly converts to a SMART (IOT) product with Sensor Connect feature.
• Combination of high lumen output with low glare.
• DLC 5.1 Premium listed.
• 90˚ beam angle (65° optional on 136W models).
• Impressive up to 140 lm/W efficacy.
• Fully gasketed and sealed, rated for NSF and Wet Locations.
• PET diffuser lens standard.
• External driver increases performance in high ambient temperatures.
• 0-10V dimming drivers are standard.
• Easily apply occupancy motion sensor.
• Features the “power-connect” cable joiner with 10′ cord standard.
• Center mounting loop and 2 aircraft cable mounting loops included standard.
• Optional bracket and aircraft cable kit mounting available.
• Trade Agreement Act compliant.
DOWNLOADS
SPECIFICATIONS
| Voltage | 120-277 VAC |
| Wattage | 93W / 136W |
| Color Temp | 4000 / 5000 Kelvin |
| Housing | Dual layer structured aluminum |
| Color | White |
| Lens | Tempered glass + frosted PET |
| Lifetime | 70,000 hrs L80 |
| CRI | 83+ |
| Beam Angles | 90° / 65°(136W models only) |
| Ambient Temperature | -22°C (-8°F) to 50°C (122°F) |
| Power Factor | cos ≥ 0.90 |
| Protection | IP65 |
| Warranty | 5 Year Limited Warranty |
LUMENS
| Kelvin | 93W | 136W |
| 4000K | 12,800 lm | 18,700 lm |
| 5000K | 13,020 lm | 19,040 lm |
See specification sheet for product ordering selection, mounting options, weights and dimensions.
