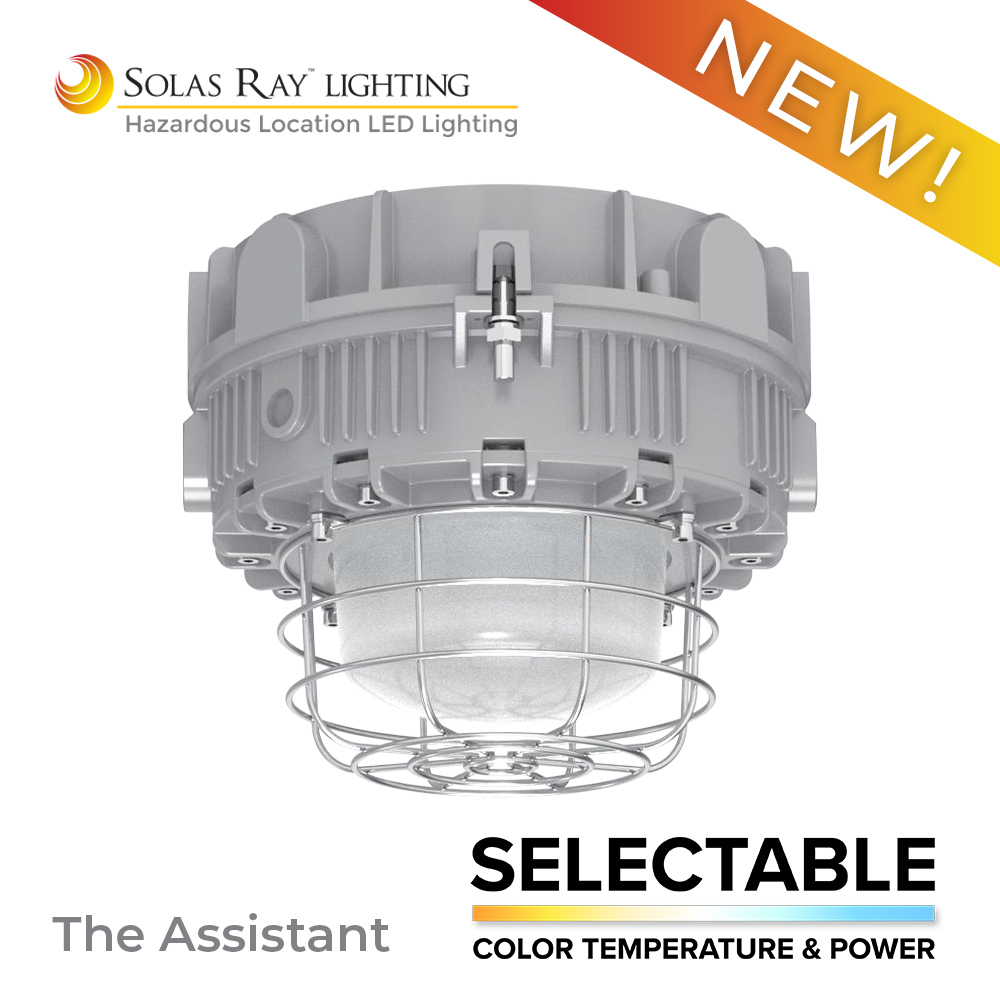

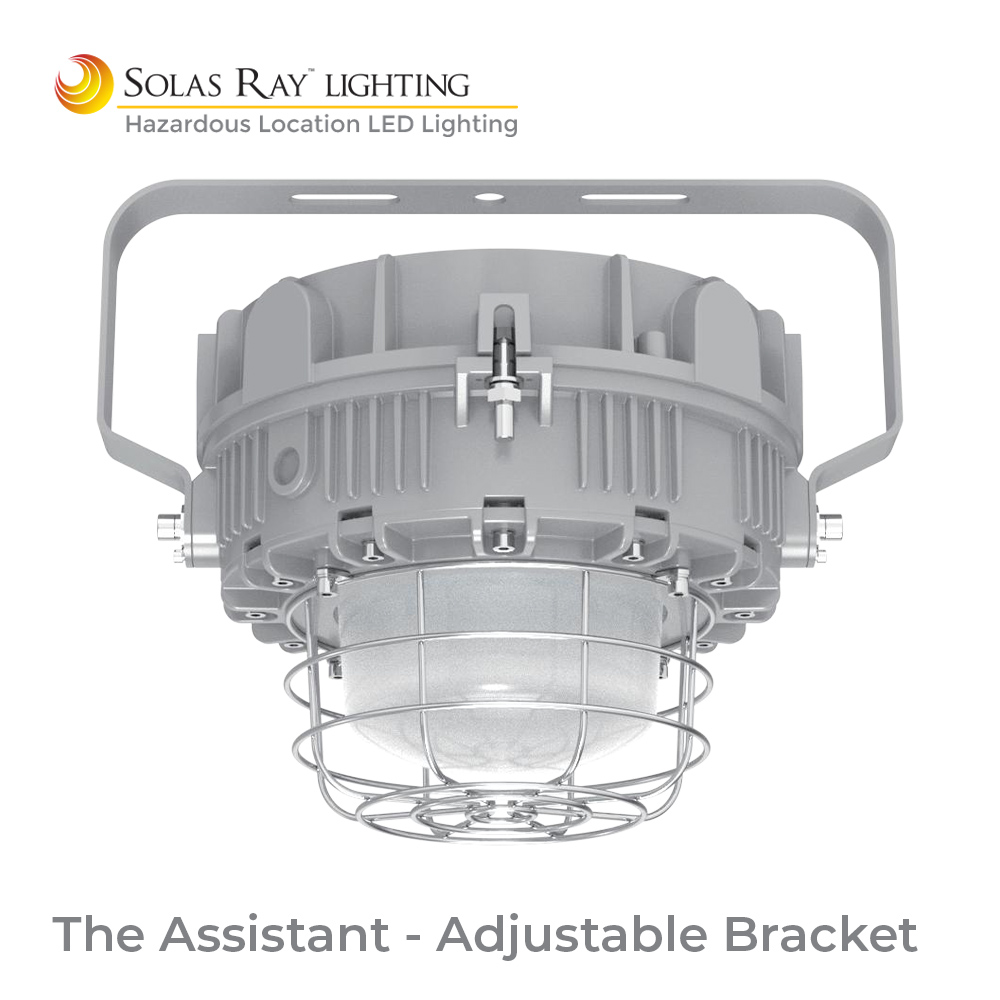

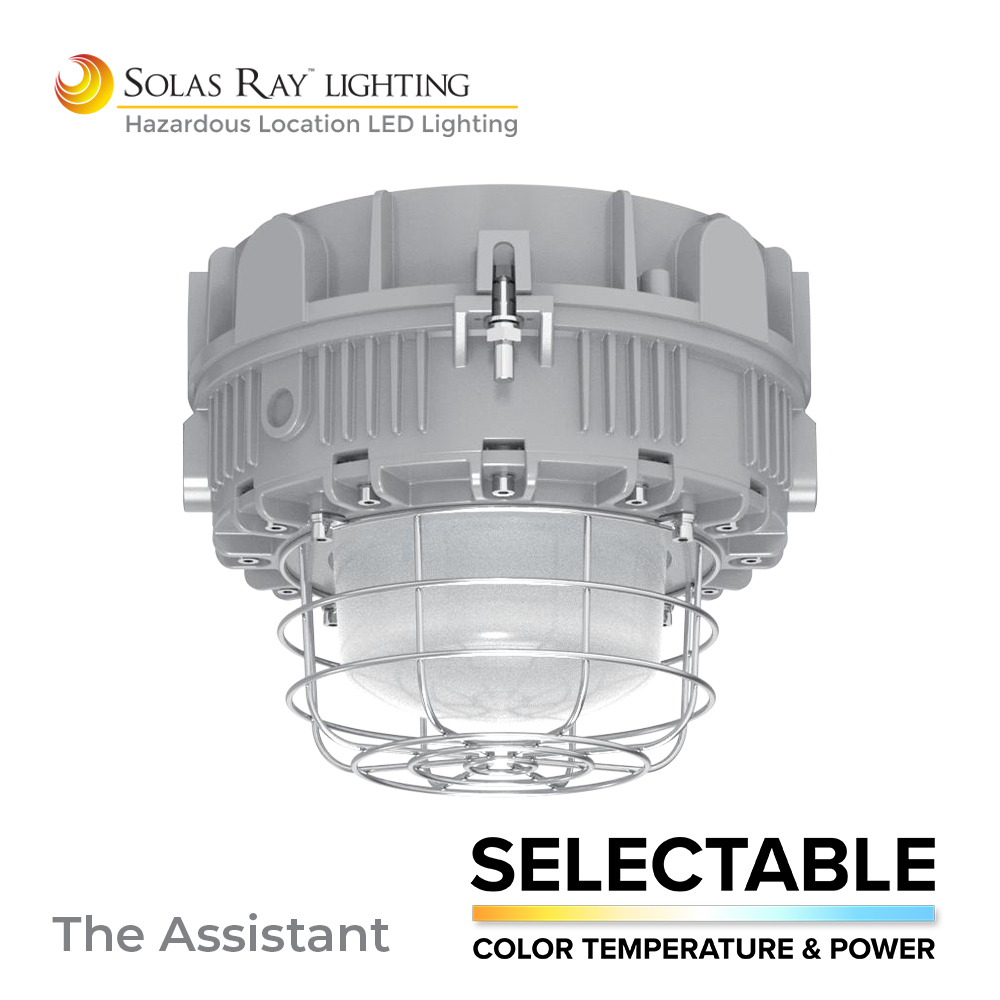

HJQA Series – The Assistant™

Hazardous Location LED Light

CERTIFICATIONS / RATINGS

UL STANDARDS
• UL 844 – Hazardous Locations | UL 1598 | UL 1598A

NEC and CEC
• Class I, Div 2 – Groups A, B, C, D
• Class II, Div 1 – Groups E, F, G
• Class II, Div 2 – Groups F, G
• Class III

• IP66
• IK08 / IK10*
• See Specification Sheet For Complete Listing

KEY FEATURES AND BENEFITS

• Hazardous Location lighting with selectable CCT and power.
• Standard drop lens makes the Assistant™ the perfect replacement for HID/Incandescent walkway lighting.
• Ideal choice for high moisture, dirty, corrosive, windy, snowy, high temperature or high vibration environments (Vibration 3G certified).
• *IK10 rated when configured with a wire guard, IK08 without wire guard.

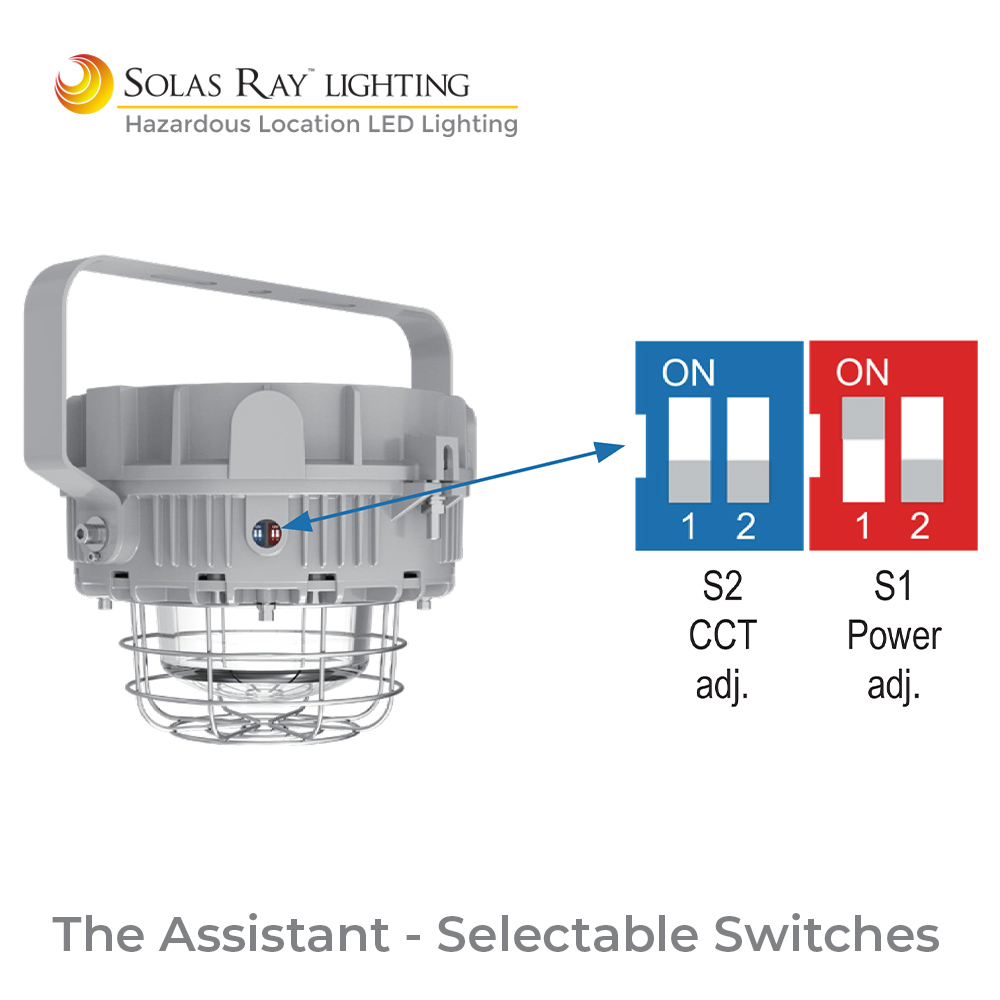

• Conveniently set color temperature and wattage with DIP switches.
• 1-10V Dimming.
• 500 hours salt spray test passed.
• 304 stainless steel hardware.

DOWNLOADS

SPECIFICATIONS

Voltage	120-277VAC / 277-480VAC
Wattage	40W / 50W / 60W (Selectable)
Color Temp	4000 / 5000 / 6500 Kelvin (Selectable)
Housing	Die-cast aluminum
Color	Gray
Lens	Tempered glass / polycarbonate
Efficacy	150 Lm/W
Power Factor	> 0.95
Entry	3/4” NPT
Ambient Temperature	-40°C (-40°F) to 55°C (131°F)
T-Rating	T4A
Lifetime	100,000+ hrs LM80
Beam Angles	40° / 60° / 90° / 120° / Type II / Type III / Type V
Protection	IP66 / IK08 / IK10 with Wire Guard
Warranty	5 Year Limited Warranty
