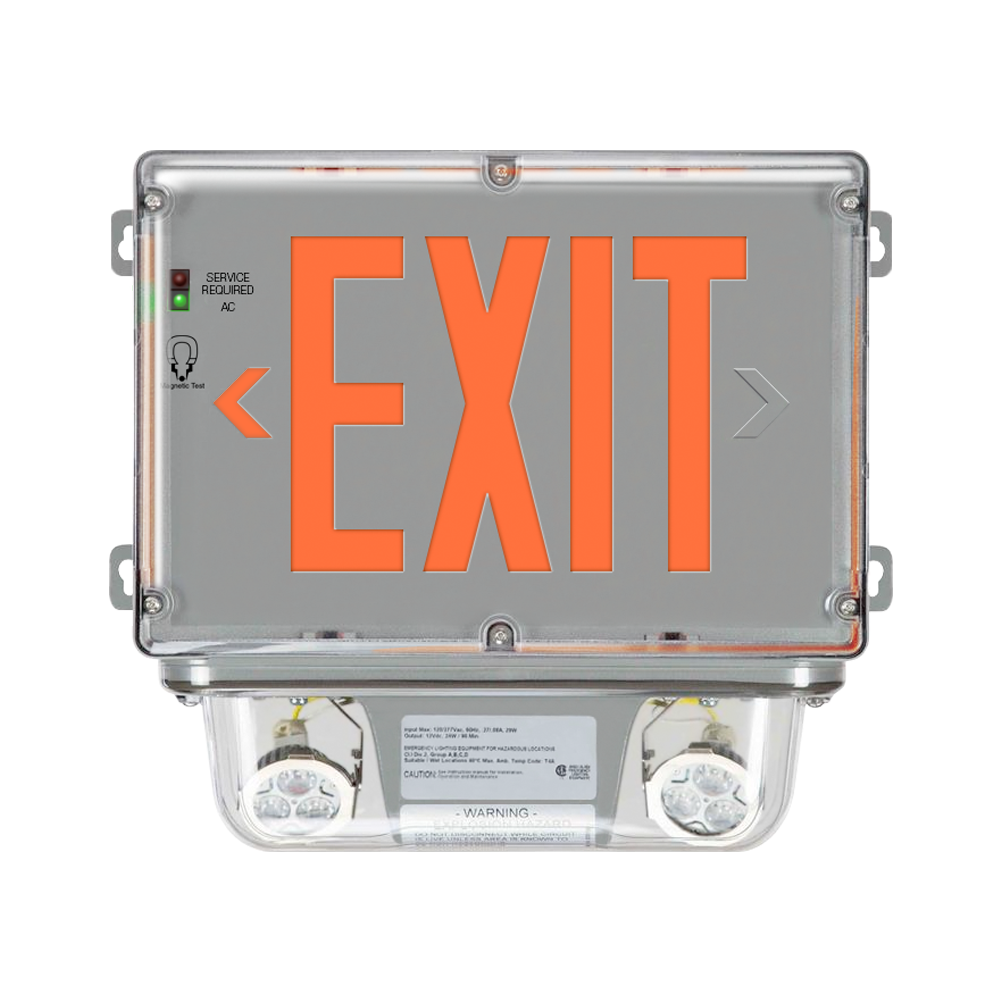

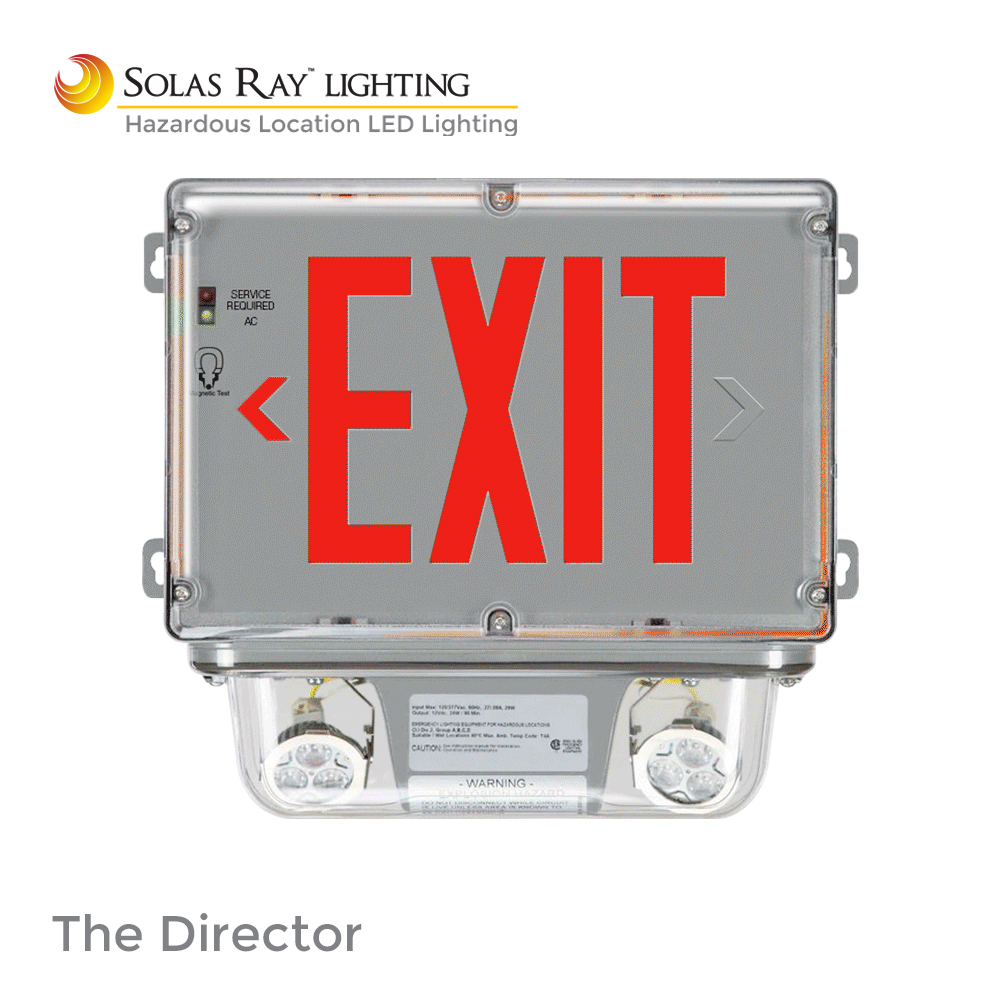

HEL Series – The Director™
Hazardous Location Emergency LED Exit Sign
CERTIFICATIONS / RATINGS
UL STANDARDS
• UL 844 │ UL944
NEC and CEC
• Class I, Div 2 – Groups A, B, C, D
• CSA
• NEMA 3/4/4X/12
• NFPA101 (Life Safety Code)
• NFPA 70-NEC
• See Specification Sheet For Complete Listing
KEY FEATURES AND BENEFITS
• LED exit sign with two (2) emergency 4 watt LED lamp heads.
• 6V-20W nickel-cadmium battery for 90 minutes of emergency illumination.
• NEC, OSHA and NEMA compliant for above classes and groups.
• Meets NFPA101 (Life Safety Code), NFPA 70-NEC and OSHA illumination standards.
• Damp and wet location.
• NEMA 3, 4, 4X, and 12 rated
• 10°C (50°F) to 40°C (104°F) ambient temperature capabilities.
• Includes advanced diagnostics (non-audible) / magnetic test switch.
• Fully gasketed housing frame.
• Heavy-duty vandal-resistant polycarbonate faceplate.
• Heavy-duty aluminum backplate.
• Vandal-resistant UV stabilized polycarbonate lamp cover.
• Stainless steel tamper-proof screws.
• 6 inch red exit lettering / field-selectable chevrons.

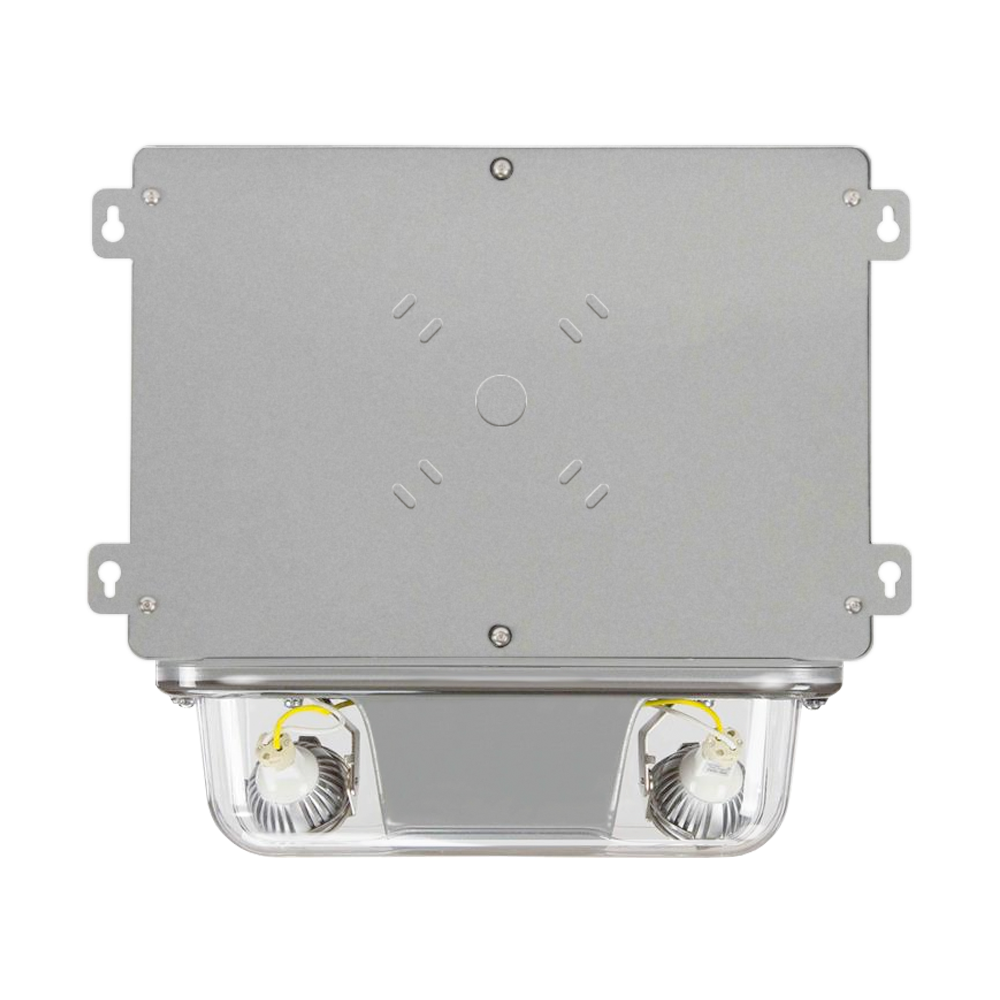

• Backplate features universal knockouts for a standard 4” junction box and 4 eyelets used in wall mount applications.

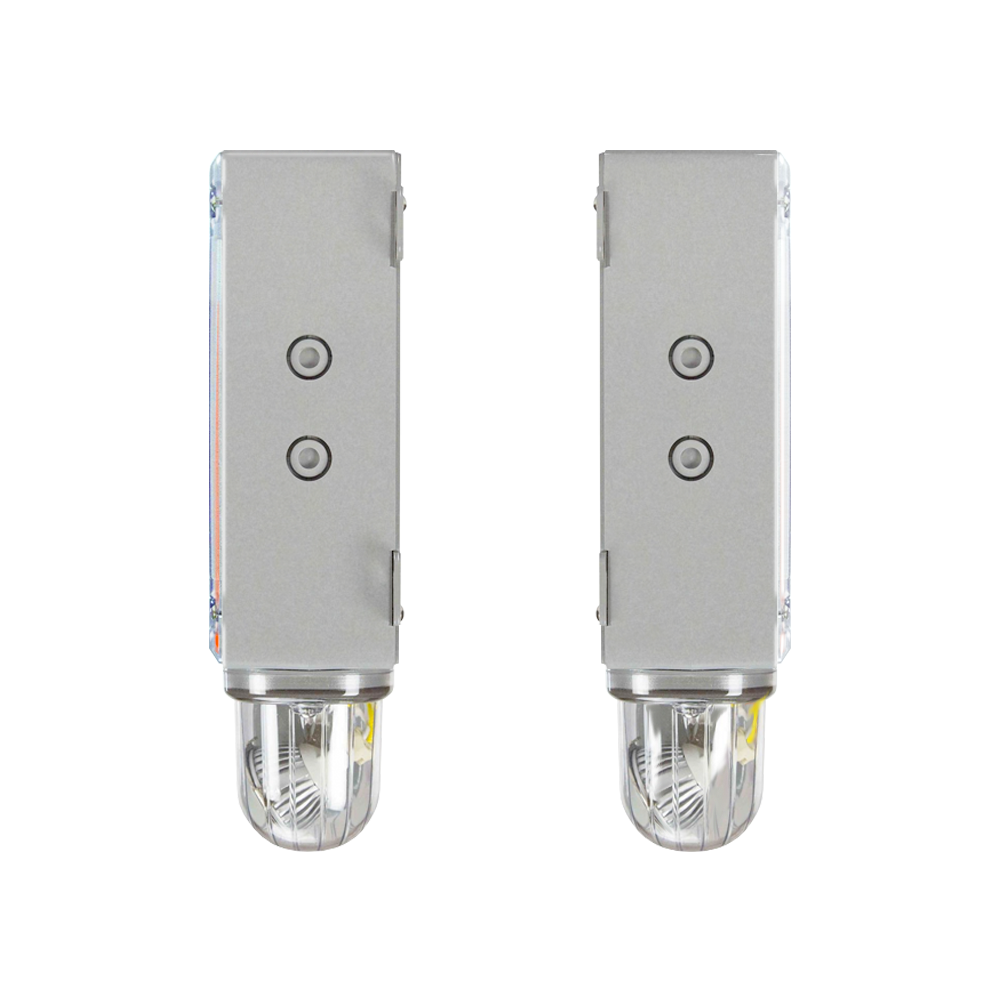

• 1/2” conduit entry on top and sides.
DOWNLOADS
SPECIFICATIONS
| Voltage | 120VAC / 277VAC |
| Wattage | Stand-By – 8W (sign only) |
| EM Mode – 16W (sign + 2X 4W 6V LED lamps) | |
| Housing | Polycarbonate housing / aluminum backplate. |
| Color | Gray with red exit lettering. |
| Ambient Temperature | 10°C (50°F) to 40°C (104°F) |
| T-Rating | T4A |
| Battery Type | 6V nickel-cadmium battery |
| Battery Watts | 20W |
| Battery Runtime | 90 minutes |
| Warranty | 5 Year Limited Warranty |
See specification sheet for product ordering selection, mounting options, weights and dimensions.
