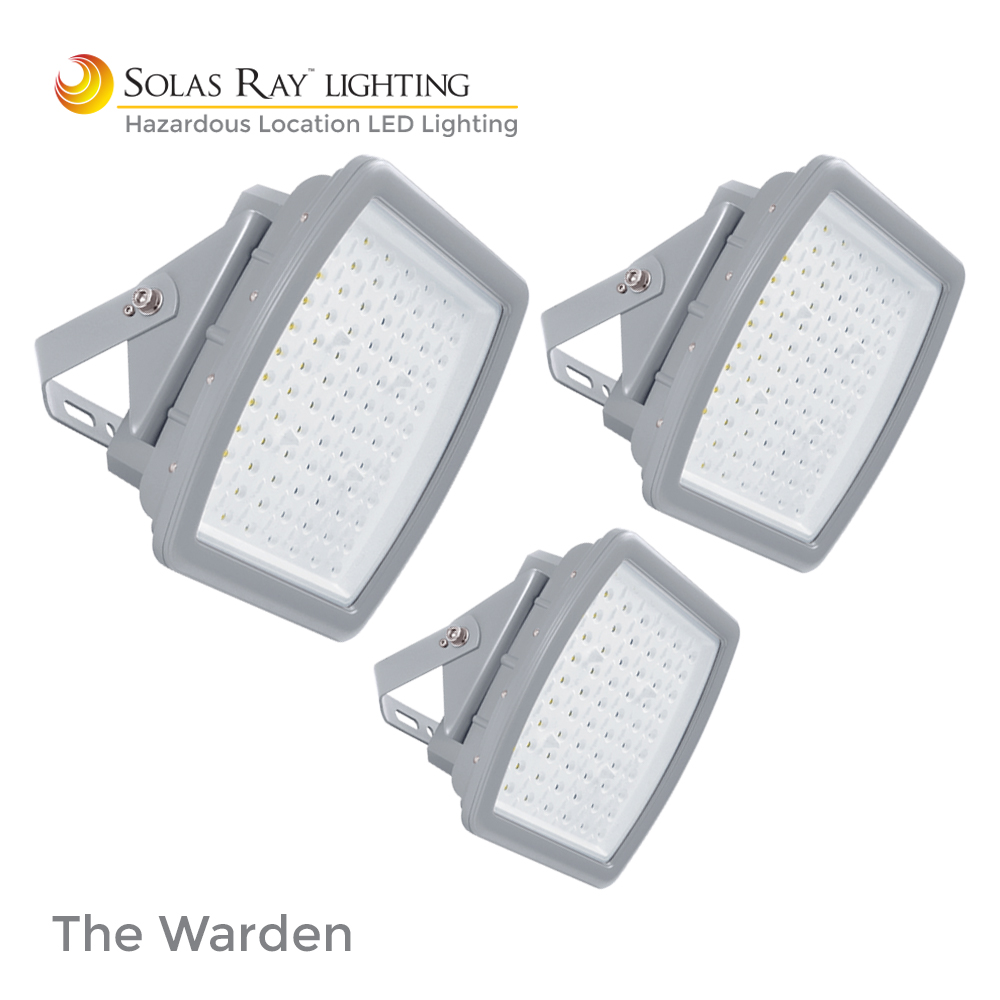

HCS Series – The Warden
CERTIFICATIONS / RATINGS
UL STANDARDS
• UL 844 – Hazardous Locations │ UL1598A
NEC and CEC
• Class I, Div 2 – Groups A,B,C, D
• DLC
• CSA C22.2 No. 137
• CSA C22.2 No. 250.0
• RoHS Compliant
• IP67
• IEC / IECEx
• See Specification Sheet For Complete Listing
KEY FEATURES AND BENEFITS
• 46,250 Max Lumens.

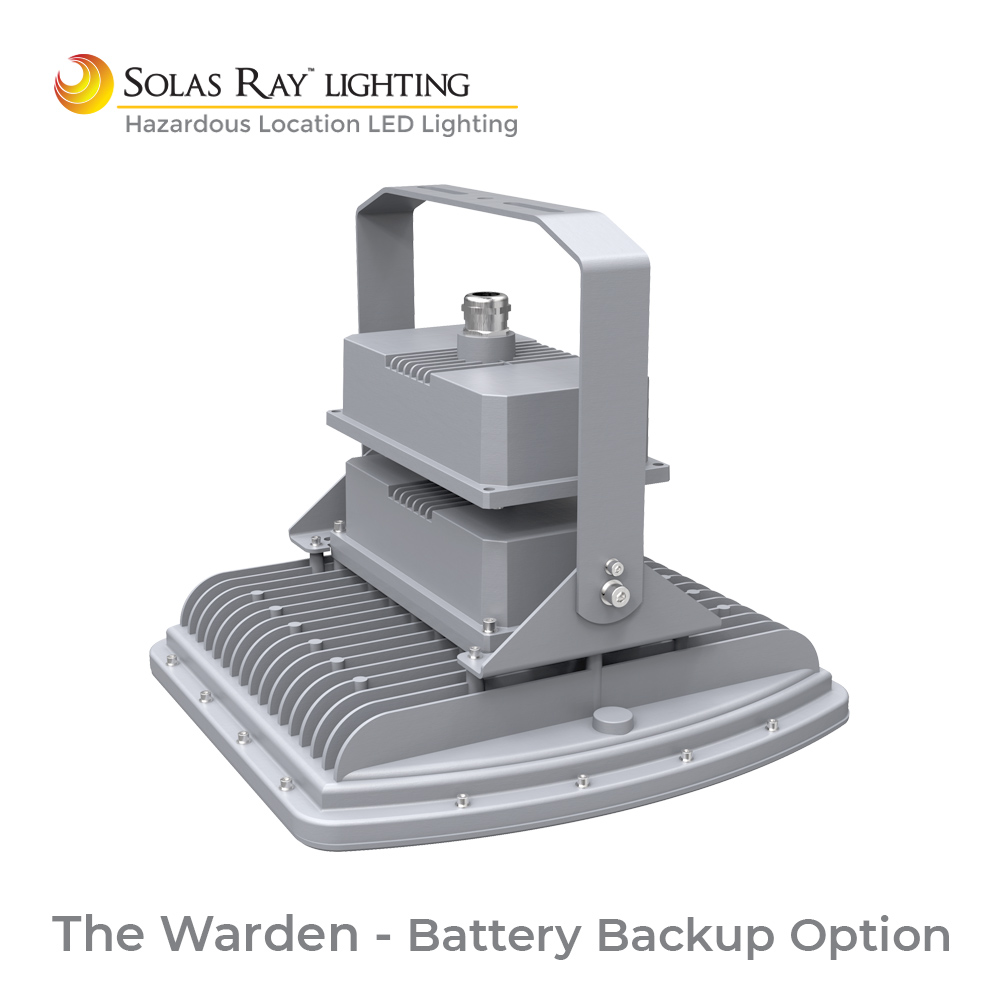

• Battery backup option (40W – 185W models). ≥ 90 minutes run time.

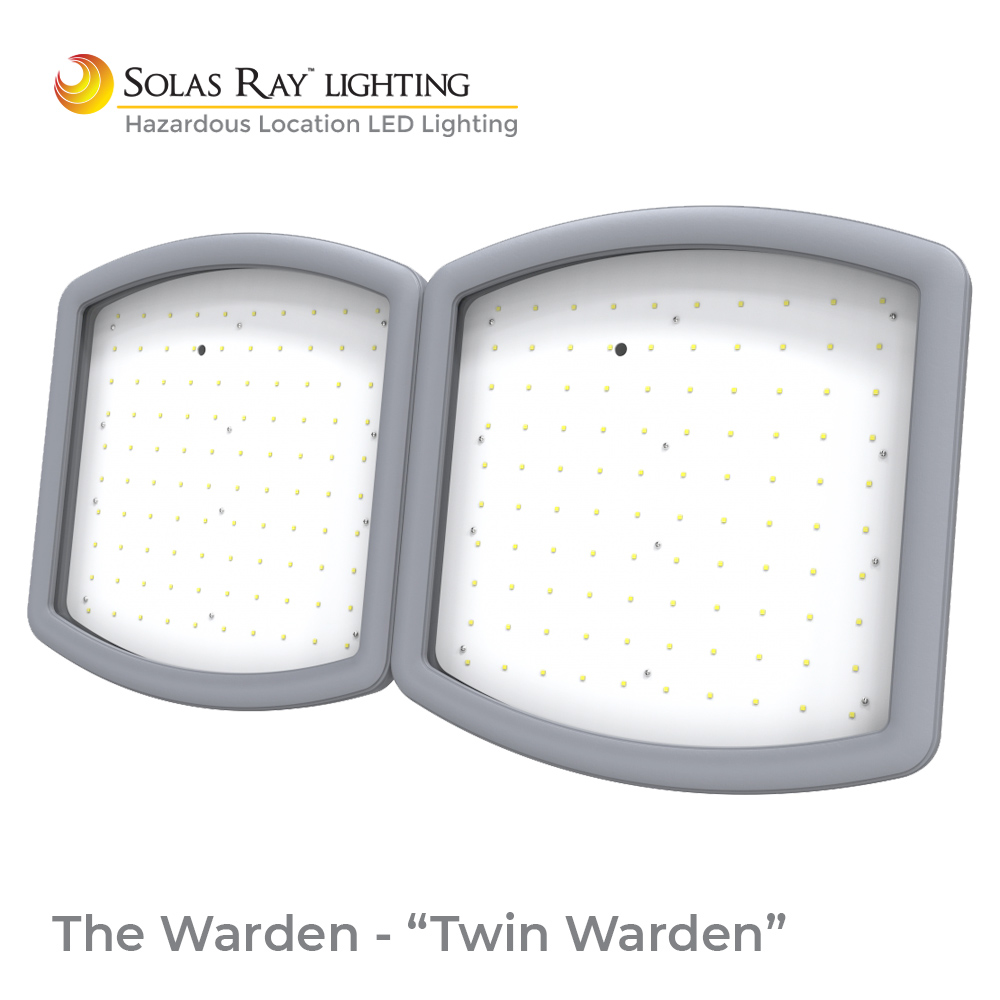

• 4 Sizes: 8”, 12” 16” and NEW 32” Twin Warden.
• High ambient temperature capabilities: -40˚C to 55˚C(131˚F).
• Corrosion proof – coated aluminum alloy housing.
• Gray nylon corrosion resistant powder coat.
• Optically designed reflector for wide area illumination.
• Built-in 4k surge protection.
• Recessed mount available.
DOWNLOADS
SPECIFICATIONS
| Voltage | 100-277vAC / 200-480vAC (60w-150w only) |
| Wattage | 40W / 60W / 80W / 100W / 120W / 150W / 185W / 200W / 240W / 300W / 370W |
| Color Temp | 3000 / 4000 / 5000 Kelvin |
| Housing | Coated aluminum alloy |
| Color | Gray / Yellow |
| Lens | Flat tempered glass |
| Efficacy | ≥120 lm/W |
| Lifetime | 50,000+ hrs L70 |
| CRI | ≥70 |
| Beam Angles | 30°, 60°, 90°, 120° |
| Power Factor | cos ≥ 0.9, cos ≥ 0.87 (480vAC) |
| Ambient Temperature | -40°C(-40°F) to 55°C(131°F) |
| T-Rating | T6 (40w-100W) / T5 (120w-370W) |
| Protection | IP67 |
| Warranty | 5 Year Limited Warranty |
LUMENS
| 40W | 60W | 80W | 100W | 120W | 150W | 185W | 200W | 240W | 300W | 370W |
| 5,000 | 7,500 | 10,000 | 12,500 | 15,000 | 18,750 | 23,125 | 25,000 | 30,000 | 37,500 | 46,250 |
See specification sheet for product ordering selection, mounting options, weights and dimensions.
