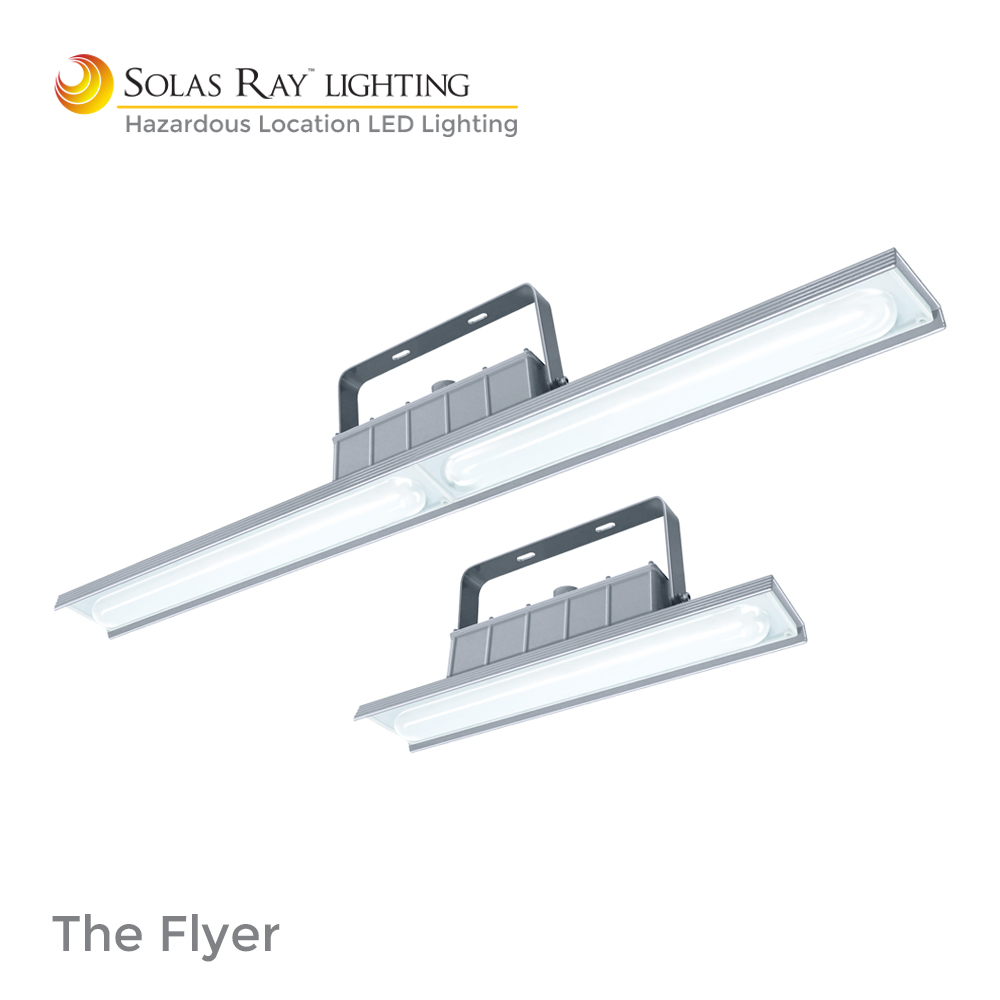

HJHL Series – The Flyer™
Hazardous Location LED Light
CERTIFICATIONS / RATINGS
UL STANDARDS
• UL 844 – Hazardous Locations │ UL1598 | UL1598A
NEC and CEC
• Class I, Div 2 – Groups A, B, C, D
• Class II, Div 1 – Groups E, F, G
• Class II, Div 2 – Groups F, G
• Class III
• IP66
• DLC V5.1 Standard*
• ABS
• energy API
• IEC / IECEx / Ex
• See Specification Sheet For Complete Listing
KEY FEATURES AND BENEFITS
• -40°C to 60°C (140°F) ambient temperature capabilities.
• * DLC V5.1 Standard (4000K/5000K with 120° beam angle only)
• Internal EM battery option (15W / 90 min).
• Heavy-duty design with high impact resistance.
• Corrosion proof – coated copper free aluminum housing.
• Marine rated gray powder coated finish.
• Stainless steel hardware and mounting bracket.
• 3 connection cable entry points.
DOWNLOADS
SPECIFICATIONS
| Voltage | 120-277 VAC / 200-480 VAC |
| Wattage | 20W / 40W / 60W / 80W |
| Color Temp | 4000 / 5000 Kelvin |
| Ambient Temperature | -40°C (-40°F) to 60°C (140°F) |
| (-10°C to 60°C with EM Battery) | |
| Housing | Coated copper free aircraft aluminum |
| Color | Gray |
| Lens | Tempered glass with polycarbonate lens |
| Lifetime | 70,000 hrs L70 |
| CRI | 80 |
| Beam Angles | 120° x 120° |
| Efficacy | up to 140 lm/W |
| Protection | IP66 |
| Entrance Thread | 3/4” NPT |
| Warranty | 5 Year Limited Warranty – Fixture |
| 3 Year Limited Warranty – Battery |
LUMENS
| 20W | 40W | 60W | 80W |
| 2,800 | 5,600 | 8,400 | 11,200 |
EM BATTERY OPTION
| Input Rating | AC 120-277V |
| Output Wattage | 15W |
| Battery Capacity | 2000 mAh |
| Battery Run-time | 90 minutes |
| Charge Time | ≥ 24 hours |
| Ambient Temperature | -10°C (14°F) to 60°C (140°F) |
| Battery Warranty | 3 Year Limited Warranty |
See specification sheet for product ordering selection, mounting options, weights and dimensions.
