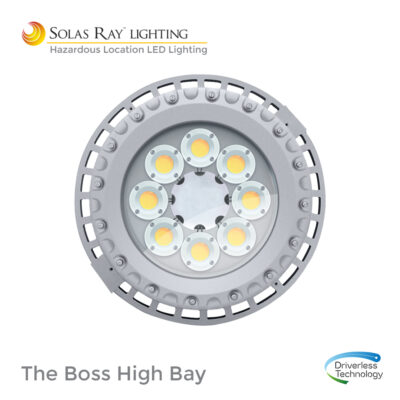

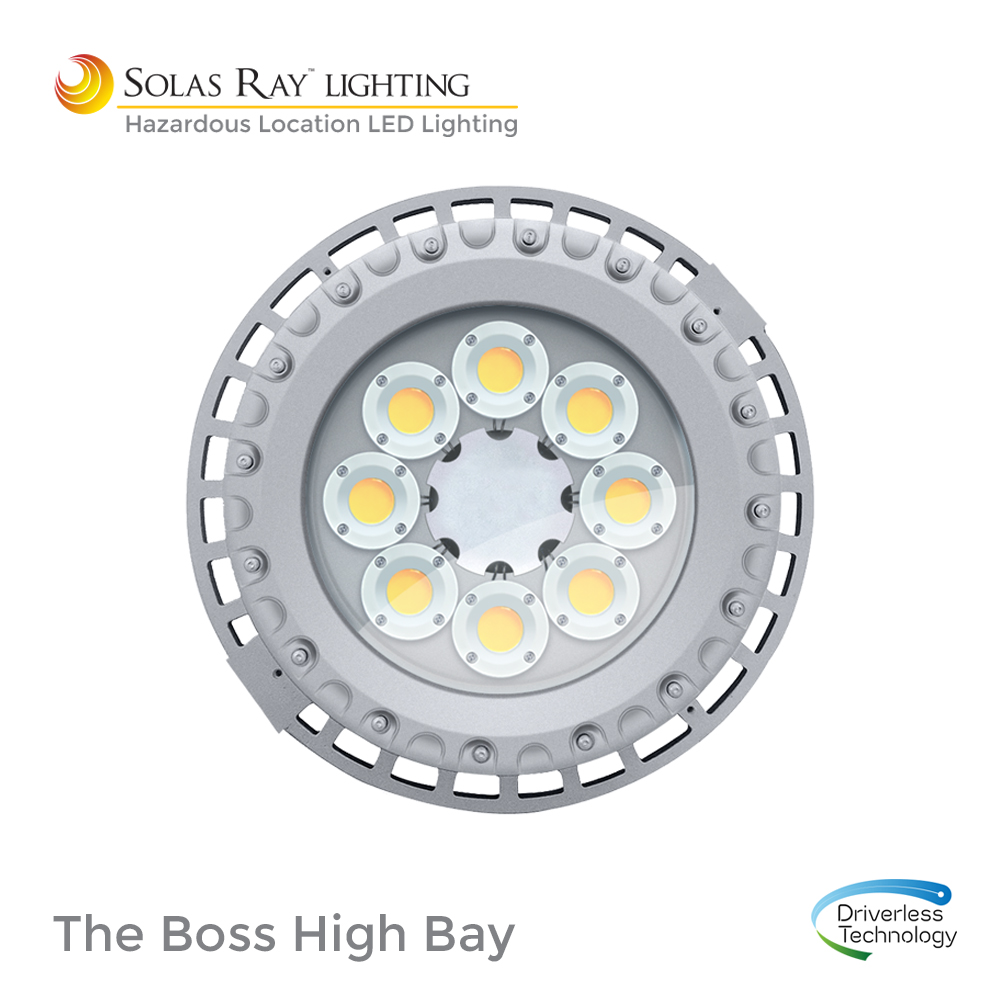

HTR16 Series – The Boss

HazLoc C Series Bay Light

CERTIFICATIONS / RATINGS

UL STANDARDS
• UL 844 – Hazardous Locations │ UL1598 – Luminaires | UL 8750

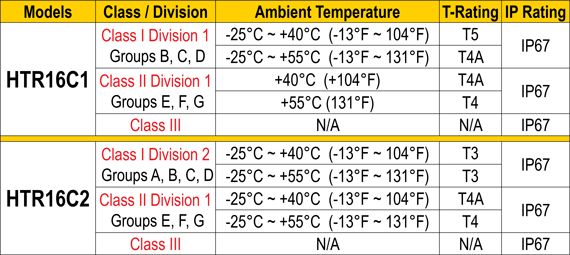

NEC and CEC (HTR16C1 models)
• Class I Div 1 – Groups B, C, D
• Class II Div 1 – Groups E, F, G
• Class III

NEC and CEC (HTR16C2 models)
• Class I Div 2 – Groups A, B, C, D
• Class II Div 1 – Groups E, F, G
• Class III

• CSA C22.2 No. 137-M1981
• CSA C22.2 No. 30-M1986
• CSA C22.2 No. 25-1996
• CSA C22.2 No. 250.0
• CSA C22.2 No. 250.13
• IP67
• NEMA 6
• See Specification Sheet For Complete Listing

KEY FEATURES AND BENEFITS

• Vibration / anti-resonance design.
• Crush resistant with high impact resistance.
• Marine grade housing / salt water spray resistant.
• Atmospheric pressure tolerance up to 10 meter depth.
• Factory installed stainless steel cable gland included
standard. Precision machined and torque tested.
• IP67 rating.

DOWNLOADS

SPECIFICATIONS

Voltage	120vAC / 277vAC / 480vAC
Wattage	140w / 160w / 180w / 200w / 220w / 240w
Color Temp	3000 / 5000 Kelvin
Housing	Coated copper free aluminum alloy
Color	Gray
Lens	Tempered glass
Lifetime	60,000 hrs L70
CRI	≥ 80 (3000K) / ≥70 (5000K)
Beam Angles	X-110° / Y-110°
Power Factor	cos ≥ 0.9, cos ≥ 0.87 (480vAC)
Protection	IP67 / NEMA 6
Warranty	5 Year Limited Warranty
