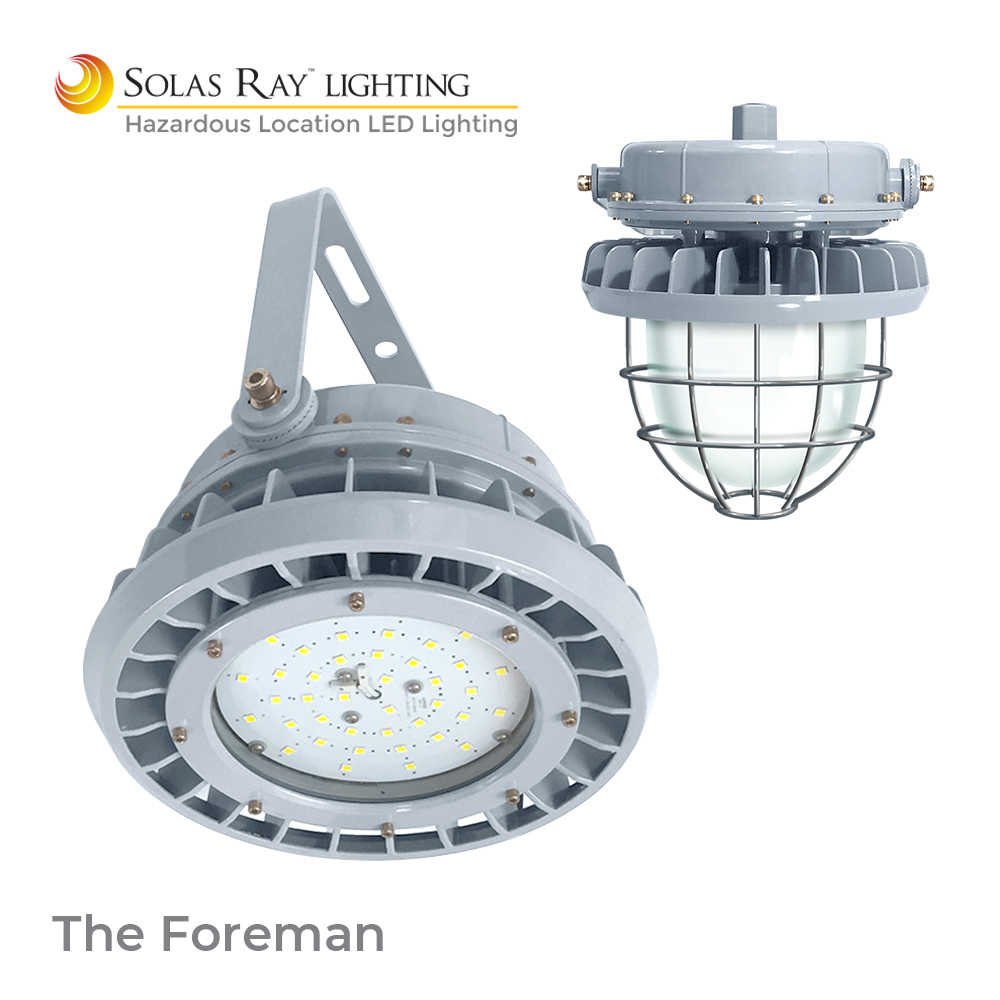

HJBR Series – The Foreman™
Hazardous Location LED Light
CERTIFICATIONS / RATINGS
UL STANDARDS
• UL 844 – Hazardous Locations │ UL 924 | UL1598 | UL1598 A
NEC and CEC
• Class I, Div 2 – Groups A, B, C, D
• Class II, Div 1 – Groups E, F, G
• Class II, Div 2 – Groups F, G
• Class III
• ETL
• IP66
• IP67
• DLC V5.1 Standard*
• IK08 / IK10**
• NSF Rated
• ABS
• CSA C22.2#250.0:2021 Ed.5
• CSA C22.2#137:2018 Ed.2
• See Specification Sheet For Complete Listing
KEY FEATURES AND BENEFITS
• Three sizes for precise lighting based on wattage requirements.
• *DLC V5.1 Standard (120° beam angle only, 4000K/5000K)
• Internal EM battery option (15W / 90 min).
• **Impact resistance: IK08 (standard lens) / IK10 (glass globe with wire guard).
• Corrosion proof – UL 1598A marine rated.
• Powder coated aircraft aluminum housing.

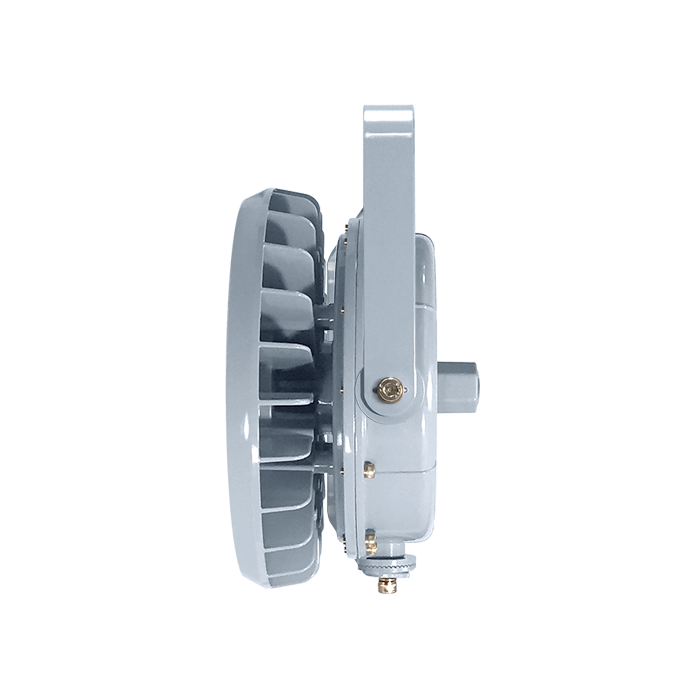

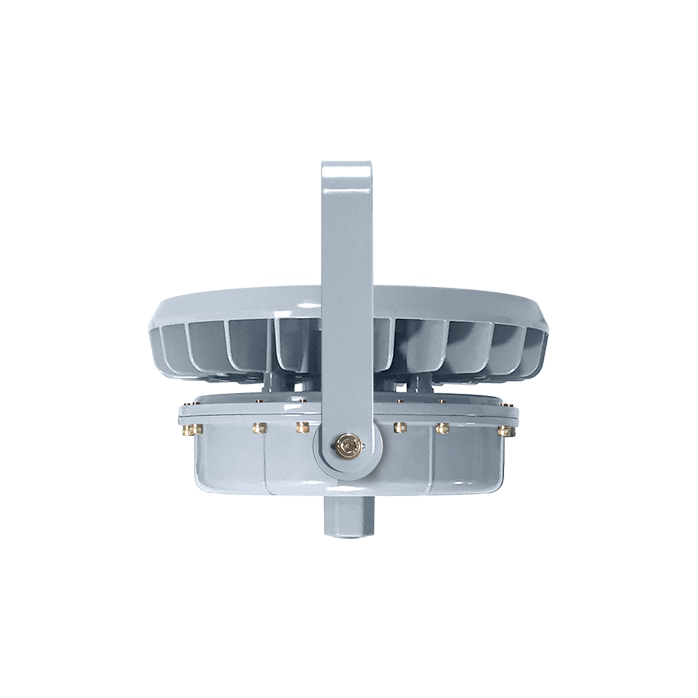

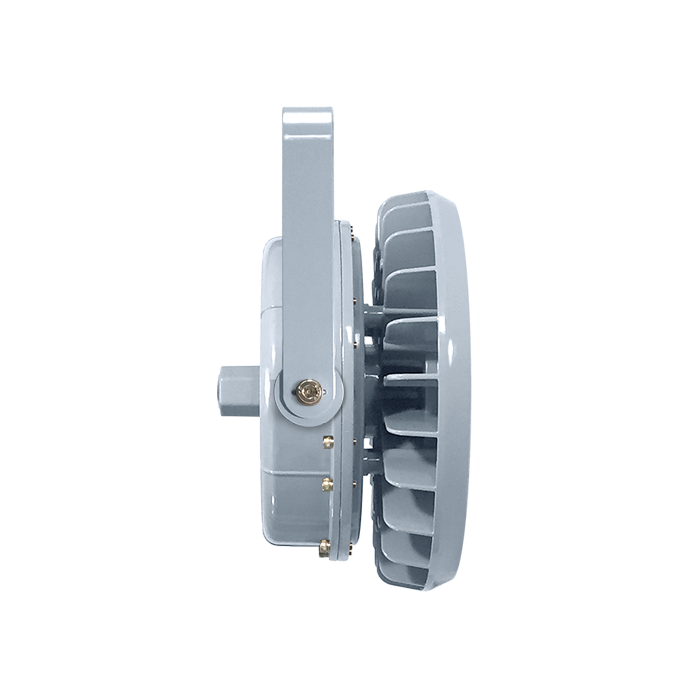

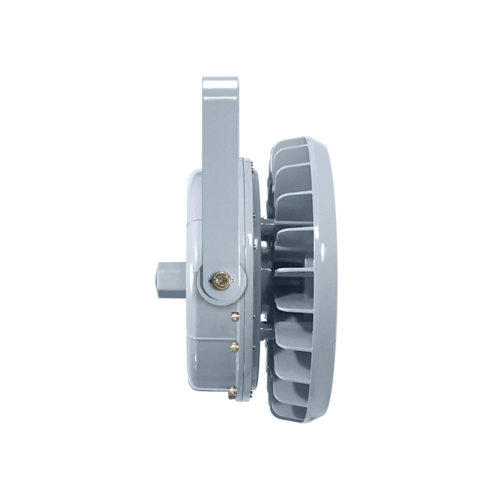

• Stainless steel hardware and mounting bracket.

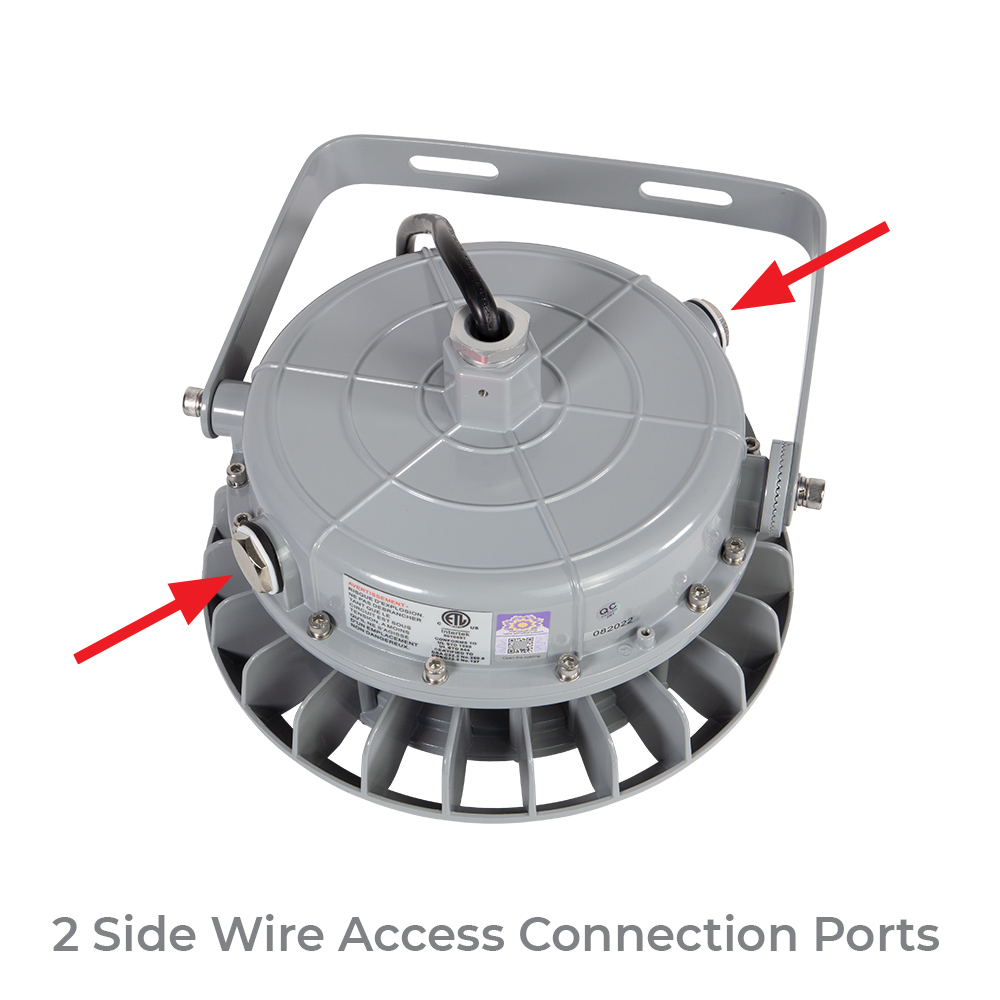

• Three wire access ports (1 top / 2 side – 180° apart).
• 5G vibration rated.
• 1000 hours salt spray test passed.
• NSF Rated.
DOWNLOADS
SPECIFICATIONS
| Voltage | 120-277 VAC / 200-480VAC (20W/40W 120-277VAC Only) |
| Wattage | 20W / 40W / 60W / 80W / 100W / 150W / 200W |
| Color Temp | 4000 / 5000 Kelvin |
| Housing | Aircraft aluminum |
| Color | Gray (powder coated / marine rated) |
| Lifetime | 100,000 hrs L70 |
| CRI | >70 |
| Efficacy | 140-160 lm/W |
| Lens | Tempered glass (120° beam angle) |
| Tempered glass with polycarbonate lens (90°/60°/40° beam angles) | |
| Tempered glass globe | |
| Beam Angles | 120° (Standard) / 90° / 60° / 40° / Globe |
| Ambient Temperature | -40°C (-40°F) to 50°C (122°F) – 20W-80W |
| -40°C (-40°F) to 40°C (104°F) – 100W-200W | |
| (-10°C min temp with EM Battery) | |
| T-Rating | T3 |
| Power Factor | > 0.95 |
| Protection | IP66 / IP67 |
| Warranty | 5 Year Limited Warranty – Fixture |
| 3 Year Limited Warranty – Battery |
LUMENS
| 20W | 40W | 60W | 80W | 100W | 150W | 200W |
| 3,000 | 5,600 | 8,400 | 11,200 | 16,200 | 23,300 | 28,000 |
EM BATTERY OPTION
| Input Rating | AC 120-277V |
| Output Wattage | 15W |
| Battery Capacity | 2000 mAh |
| Battery Run-time | 90 minutes |
| Charge Time | ≥ 24 hours |
| Ambient Temperature | -10°C (14°F) to 60°C (140°F) |
| Battery Warranty | 3 Year Limited Warranty |
The Foreman replaces the Hazardous Location (HazLoc) Mini-Beast (HL Series)

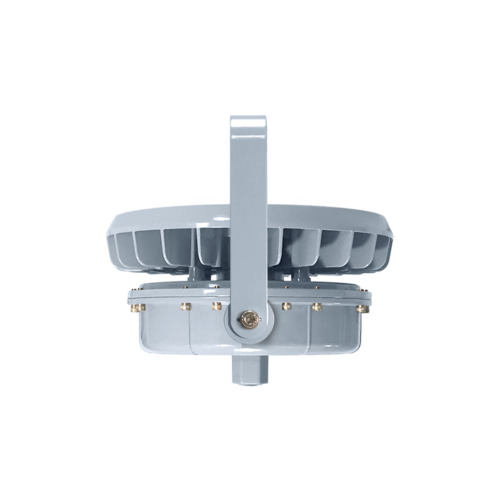

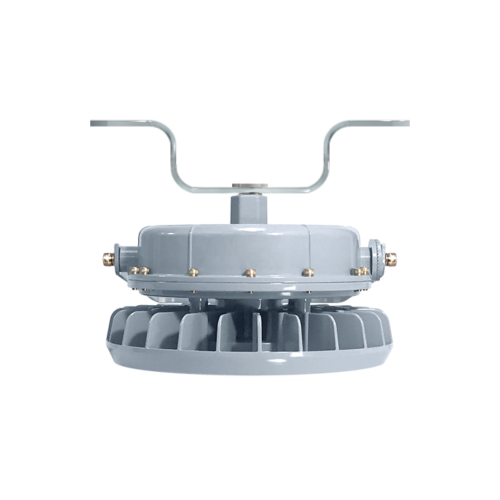

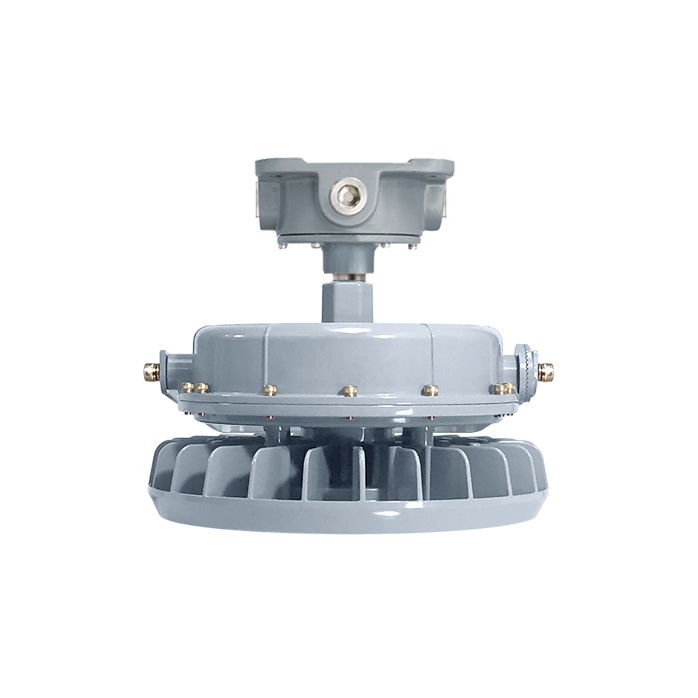

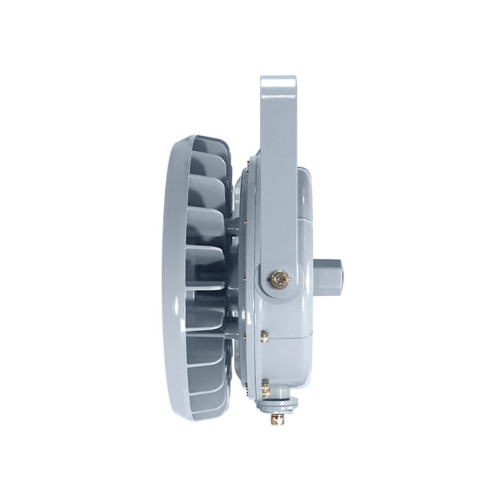

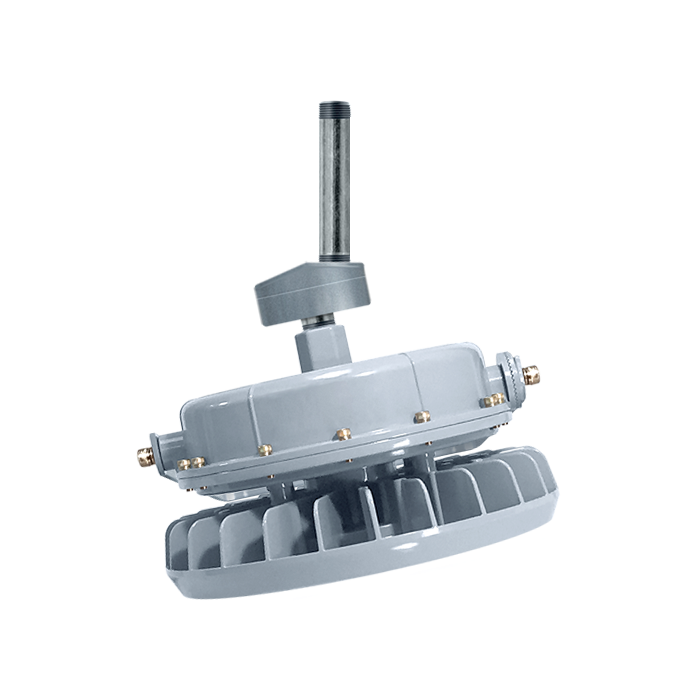

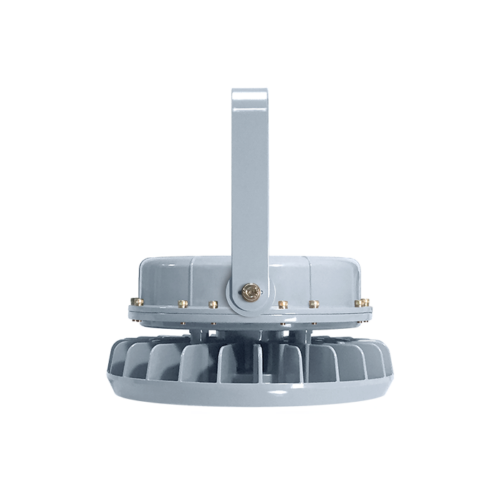

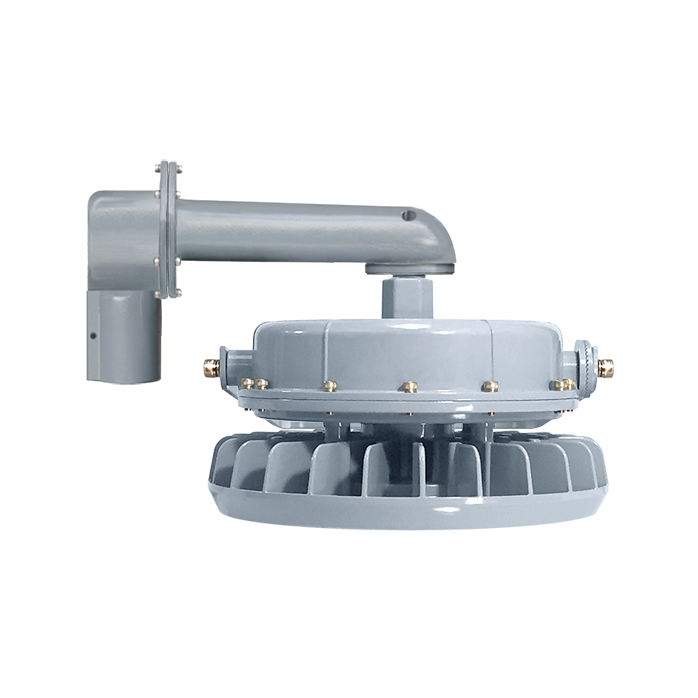

See specification sheet for product ordering selection, mounting options, weights and dimensions
