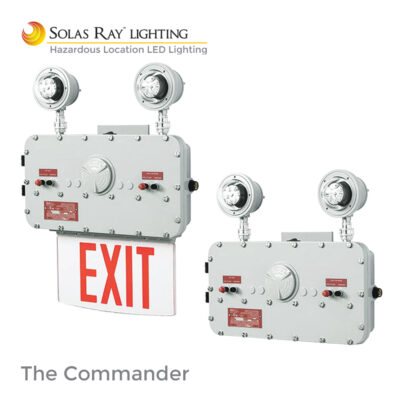

CTL/CTLES Series – The Commander™
CERTIFICATIONS / RATINGS
UL STANDARDS
• UL 844 – Hazardous Locations │ UL924 | UL1598 – Luminaires | UL 8750 | UL1598A
NEC and CEC
• Class I Div 1 – Groups C, D
• Class II Div 1 – Groups E, F, G
• Class III
• IP65
• NEMA 4X
• See Specification Sheet For Complete Listing
KEY FEATURES AND BENEFITS
• Emergency light / exit sign with integrated 3 hour battery backup.
• Can power integrated and/or optional remote light heads (up to 4).
• Optional edge lit acrylic exit sign with red or green lettering.
• Stainless steel hardware.
• A360 aluminum body (less than .4% copper content).
• Wall, pendant and end mounting options.
• BAA / BABA compliant.
DOWNLOADS
SPECIFICATIONS
| Voltage | 120/277vAC |
| Wattage | 6.5w – Red Exit Sign – 2 LED heads |
| 10.5w – Red Exit Sign – 4 LED heads | |
| 7w – Green Exit Sign – 2 LED heads | |
| 11w – Green Exit Sign – 4 LED heads | |
| Beam Angle | Wide / Medium / Narrow |
| Lumens | 420 per head |
| Color Temp | 5500 Kelvin |
| Housing | Coated copper free A360 aluminum alloy |
| Color | Gray |
| Protection | IP65 / NEMA 4X |
| T-Rating | T6 |
| Diagnostics | Manual – sealed push-to-test button |
| Battery Type | NiCad |
| Battery Runtime | 3 hours (180 minutes) |
| Charge Time | 48 hours to fully recharge |
| Warranty | 5 Year Limited Warranty |

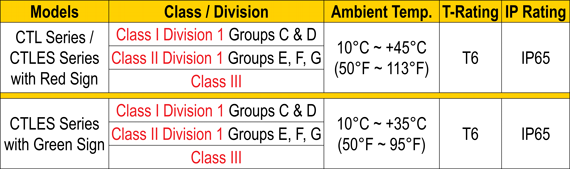

CLASS / DIVISION / TEMPERATURE
See specification sheet for product ordering selection, mounting options, weights and dimensions.
