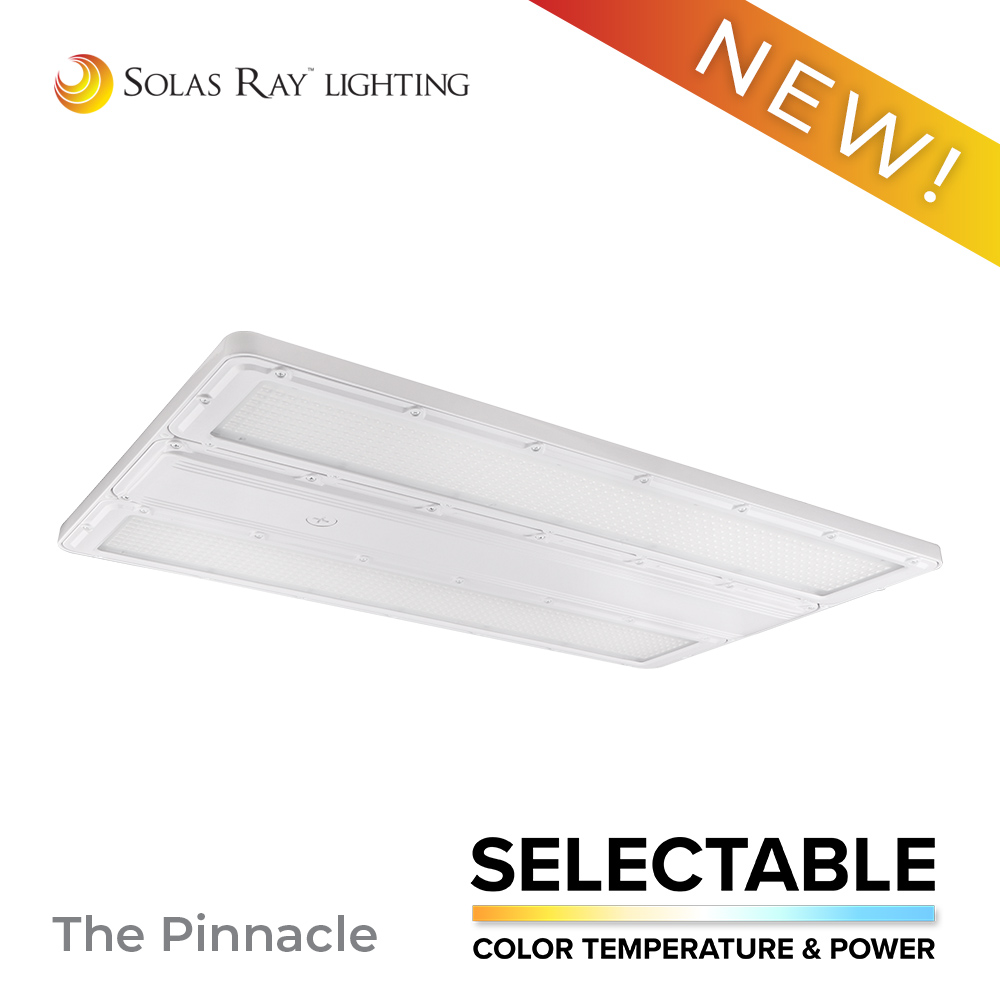

PIN Series – The Pinnacle™
Selectable CCT & Power Linear High Bay Lighting
CERTIFICATIONS / RATINGS
• UL Listed
• DLC V6.0 Premium
• IP69K
• NSF Rated
• IK10 Impact Rating
• RoHS Compliant
• FCC
• See Specification Sheet For Complete Listing
KEY FEATURES AND BENEFITS
• High efficiency LED high bay with selectable CCT and power.
• 49,500 max lumens from a 24.2” x 14.8” form factor.
• 65° max ambient temperature.
• LEDs mounted to metal-core circuit board for enhanced heat dissipation.
• High performance driver with short circuit and over temperature protection.
• Fully sealed and IP69K rated to withstand high pressure jets of water while cleaning.
• NSF rated for use in food service / agricultural applications.
• Durable die-cast aluminum housing with IK10 impact rating.
• 0-10V (0% – 100%) dimming driver standard.
• 6kV built in surge protection standard, 10kV optional.

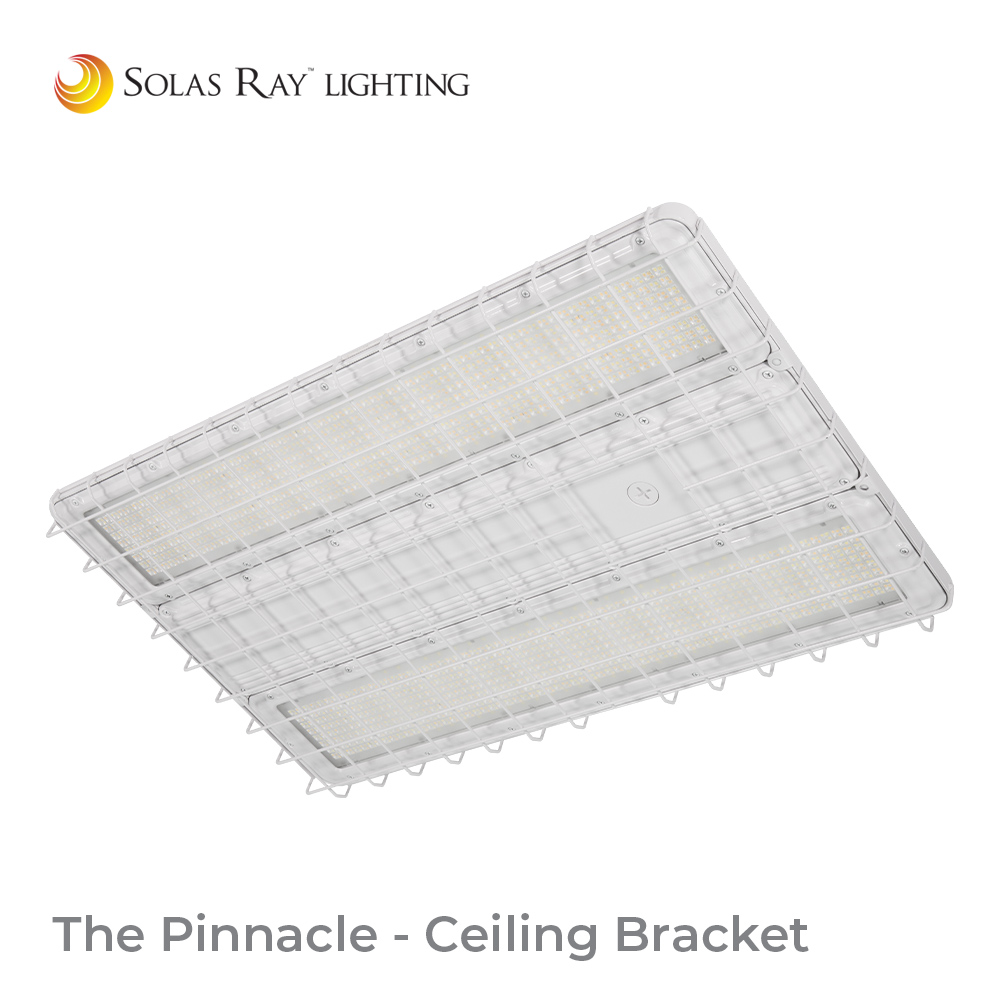

• Optional wire guards available.
• Microwave motion sensor available.
• Pre-wired for emergency battery.
• 90 minute / 25W external emergency battery available.
DOWNLOADS
SPECIFICATIONS
| Voltage | 120-347 VAC / 277-480 VAC |
| Wattage | (150W / 130W / 110W) (Selectable) |
| (300W / 250W / 220W) (Selectable) | |
| Color Temp | 3500 / 4000 / 5000 Kelvin (Selectable) |
| Housing | Die-cast aluminum |
| Color | White |
| Lens | Polycarbonate |
| Ambient Temperature | -40°C (-40°F) to 65°C (149°F) |
| Lifetime | 50,000 hrs L70 |
| CRI | >80 |
| Beam Angles | 90° / 110° |
| Power Factor | > 0.90 |
| Protection | IP69K |
| Warranty | 5 Year Limited Warranty |
LUMENS

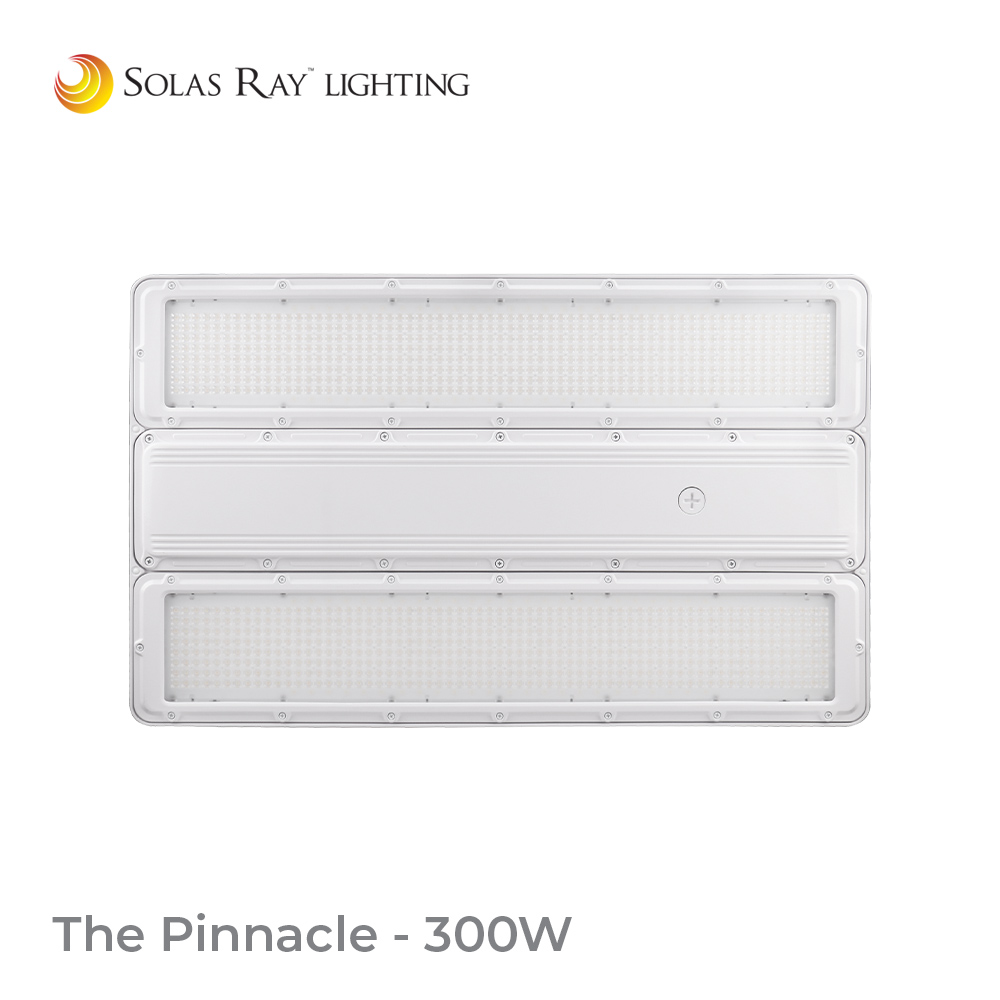

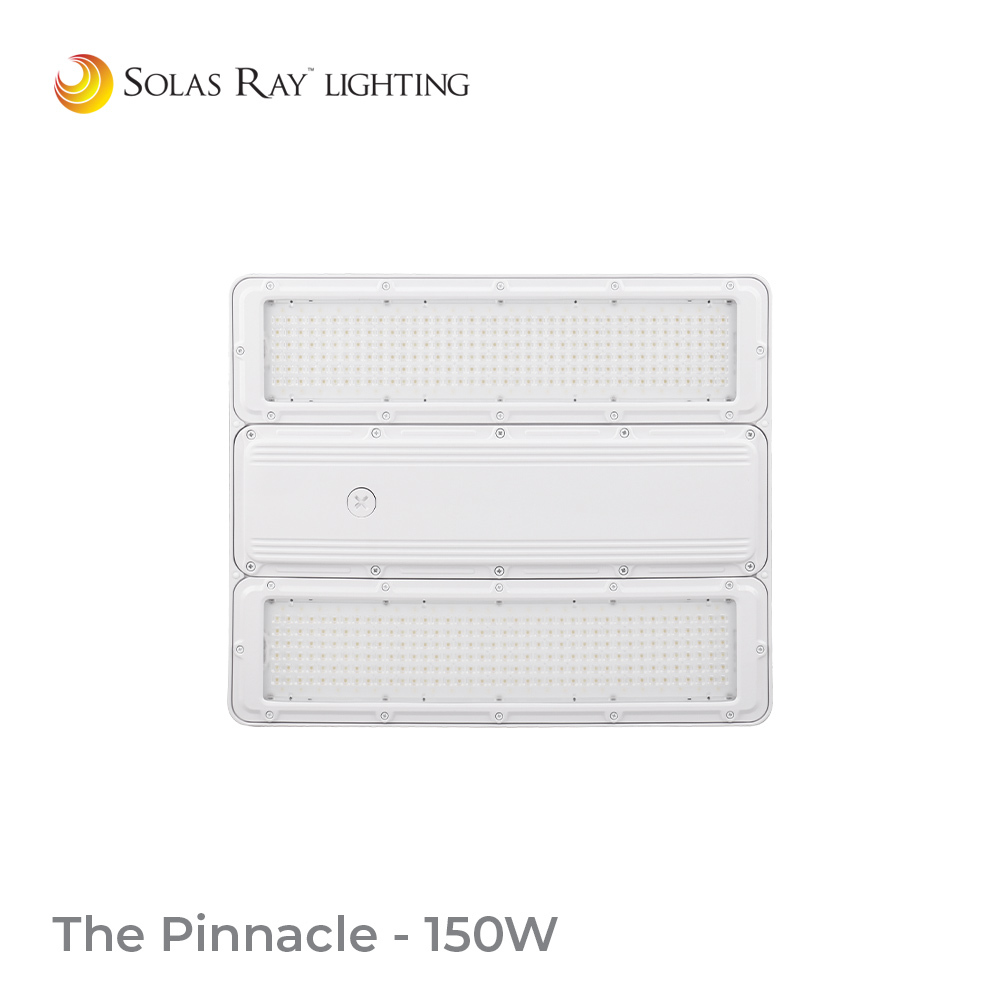

| PIN-300S | PIN-150S | |||||
| KELVIN | 300W | 250W | 220W | 150W | 130W | 110W |
| 5000K | 48,000 | 40,000 | 35,200 | 24,150 | 20,950 | 17,700 |
| 4000K | 49,500 | 41,250 | 36,300 | 25,200 | 21,850 | 18,500 |
| 3500K | 46,500 | 38,750 | 34,100 | 23,700 | 20,550 | 17,400 |
See specification sheet for product ordering selection, mounting options, weights and dimensions.
