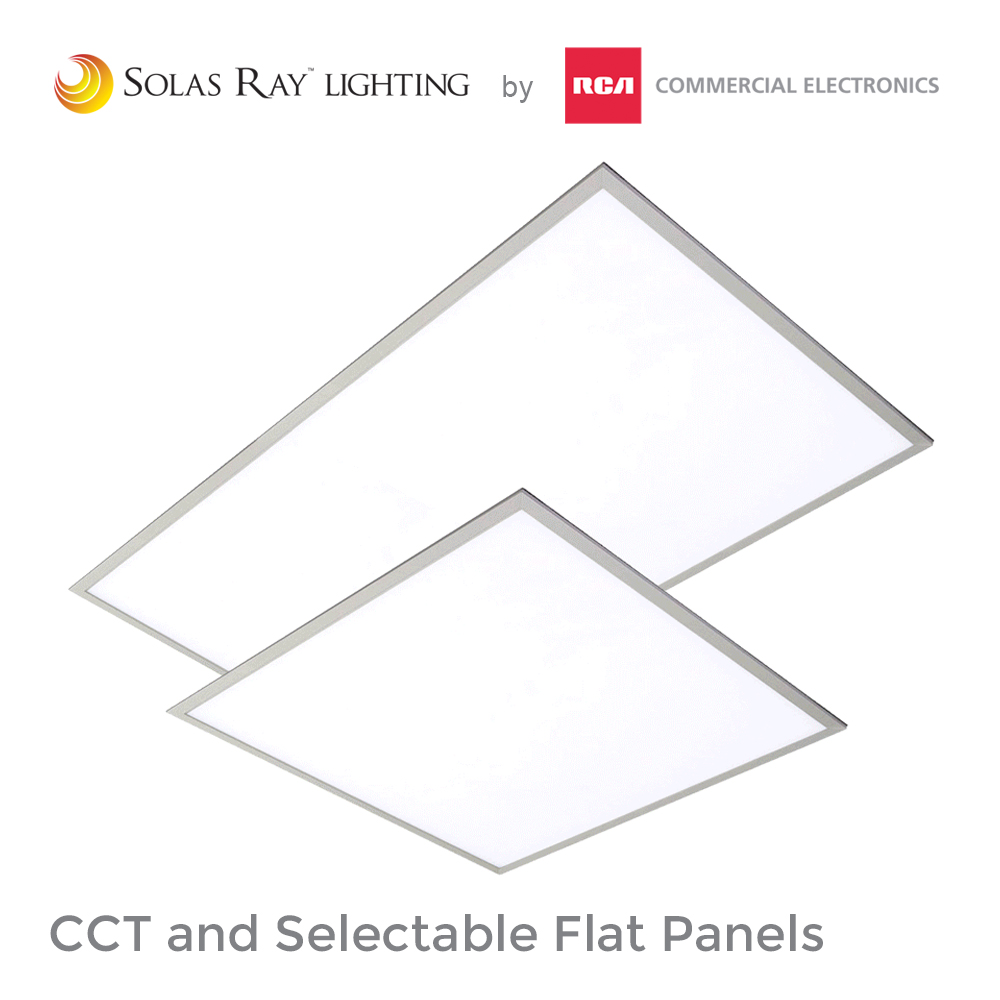

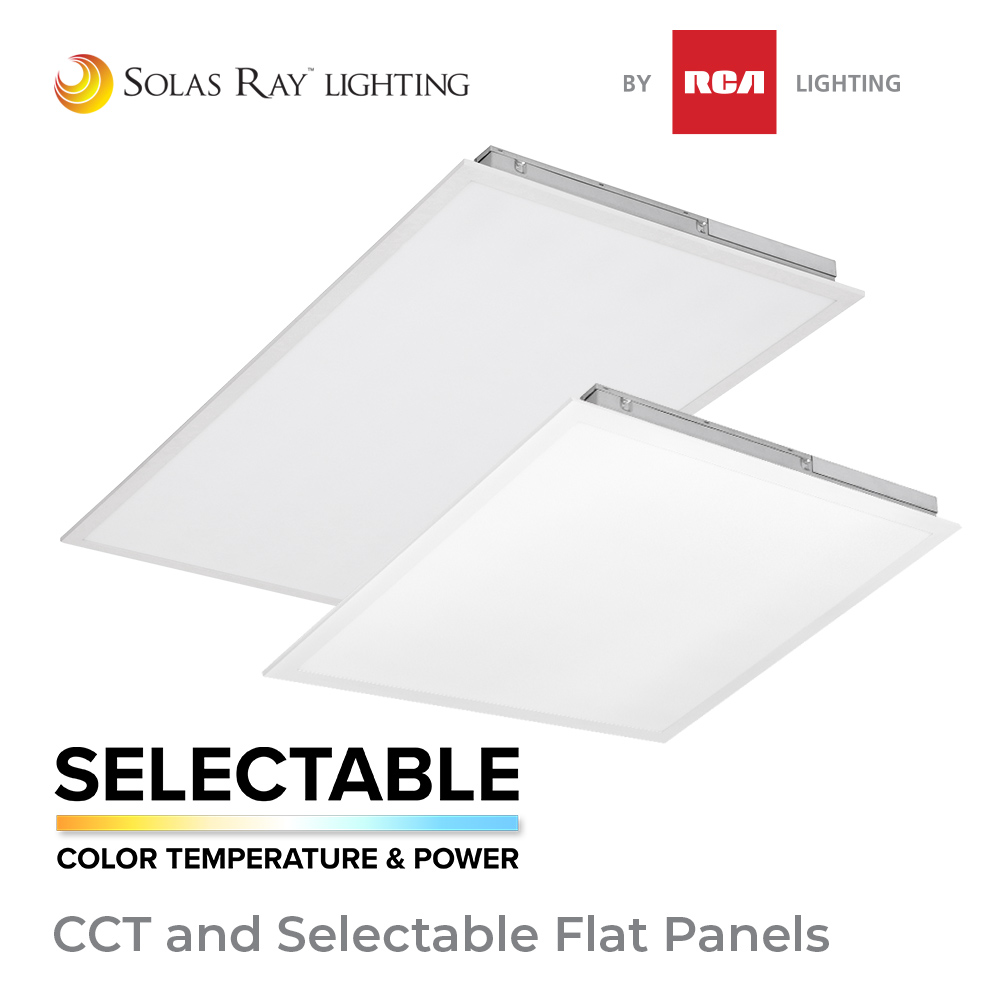

FPS Series – CCT / Power Selectable Flat Panel
CERTIFICATIONS / RATINGS
• ETL
• UL 1598
• DLC 5.1 Premium
• RoHS Compliant
• FCC
KEY FEATURES AND BENEFITS

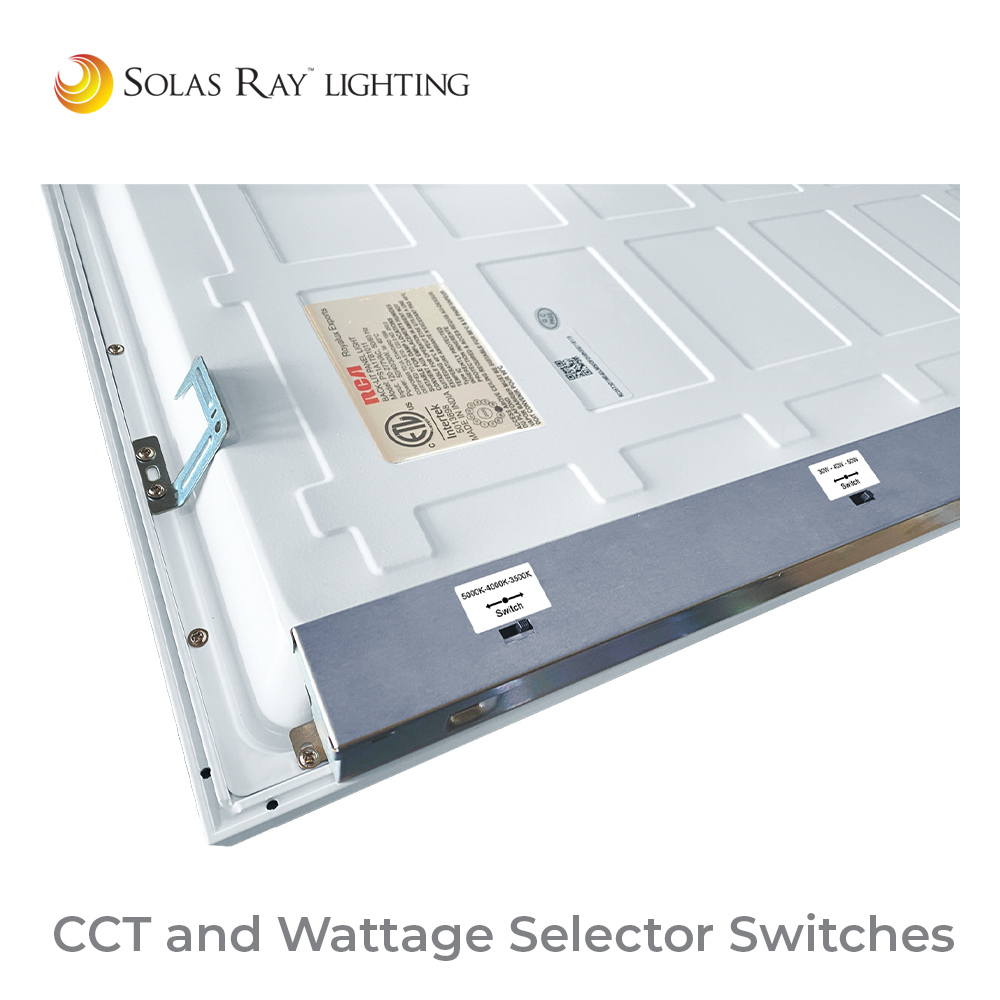

• 3 color temperature and 3 wattage selectable settings.

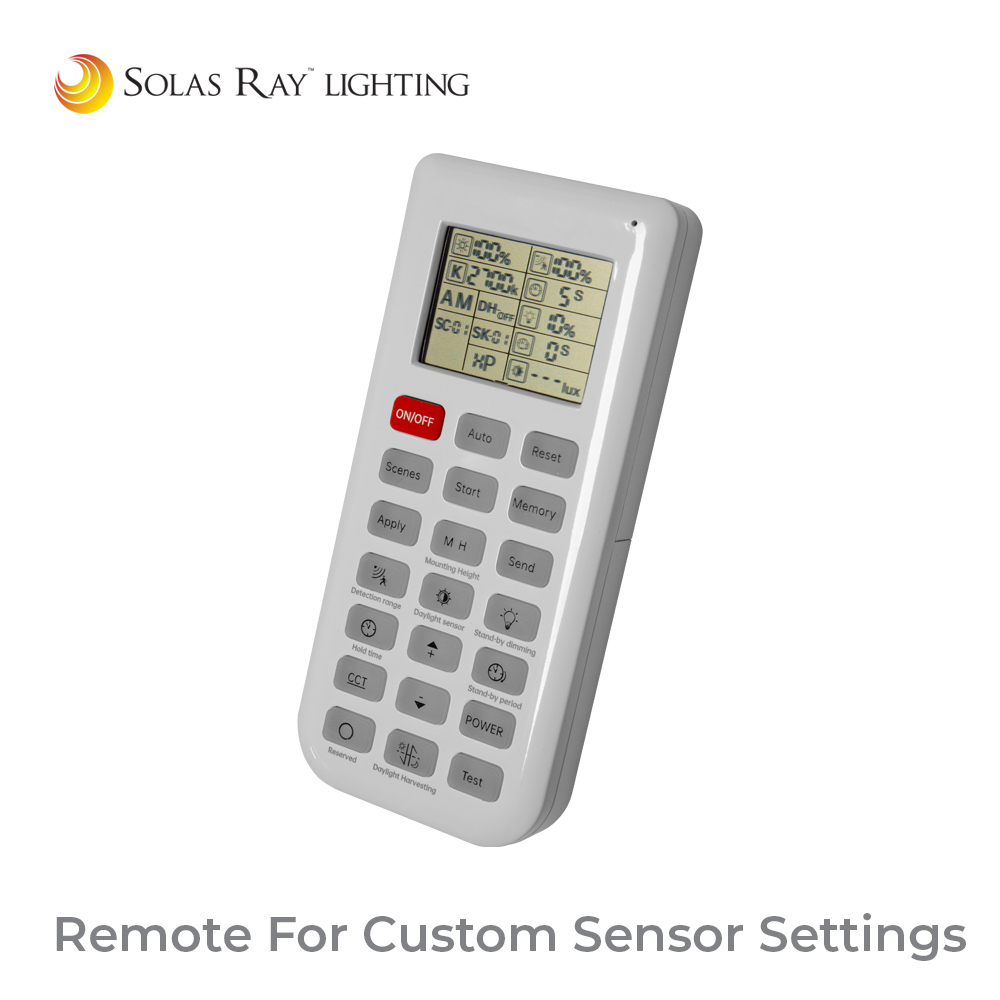

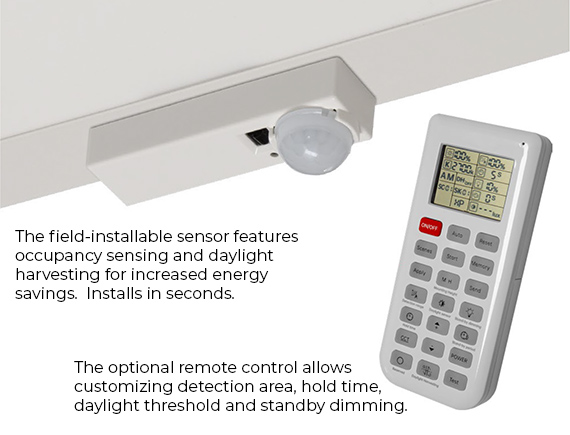

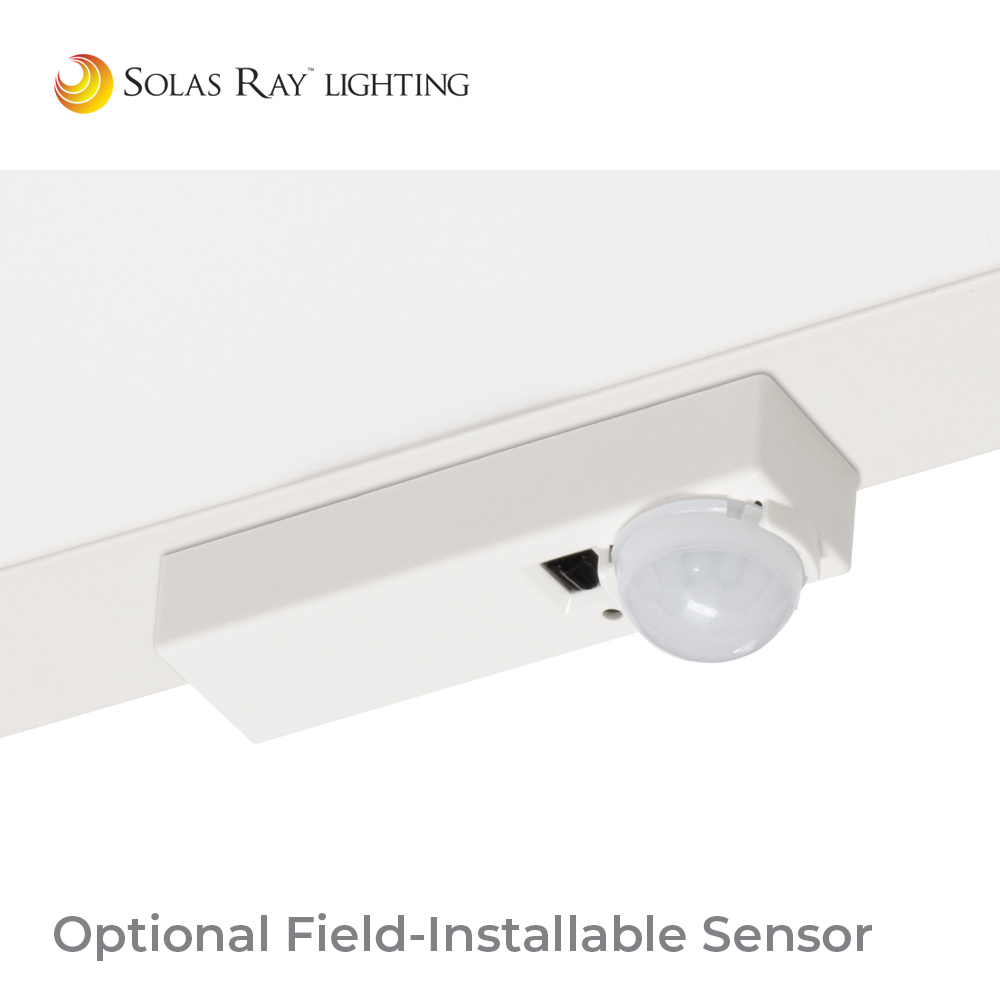

• Field installable occupancy / daylight harvesting sensor available.
• Diffused polycarbonate lens with UV treatment to prevent yellowing over time.
• Sealed to prevent dust entry.
• 0-10v dimming driver standard.
• Damp location approved.
• Ultra slim body – 1.375 inches.
• 5 year limited warranty.
DOWNLOADS
SPECIFICATIONS
| Voltage | 120-277 VAC |
| Wattage | 2×2 – 20W / 30W / 40W Selectable |
| 2×4 – 30W / 40W / 50W Selectable | |
| Color Temp | 3500 / 4000 / 5000 Kelvin Selectable |
| Housing | Steel |
| Color | White |
| Lens | UV treated frosted polycarbonate |
| Lifetime | 50,000 hrs L80 |
| Ambient Temperature | -10°C (14°F) to 40°C (104°F) |
| Efficacy | 125 lm/W |
| CRI | 80+ |
| Beam Angle | 110° |
| Warranty | 5 Year Limited Warranty |
*NOTE: 0-10V dimming driver supports only ONE of the following options at a time: Occupancy Sensor, Battery Backup or External Dimmer. These options may not be combined.
LUMENS
| 2×2 | 2×4 | ||||
| 20W | 30W | 40W | 30W | 40W | 50W |
| 2,500 | 3,750 | 5,000 | 3,750 | 5,000 | 6,250 |
See specification sheet for product ordering selection, mounting options, weights and dimensions.
