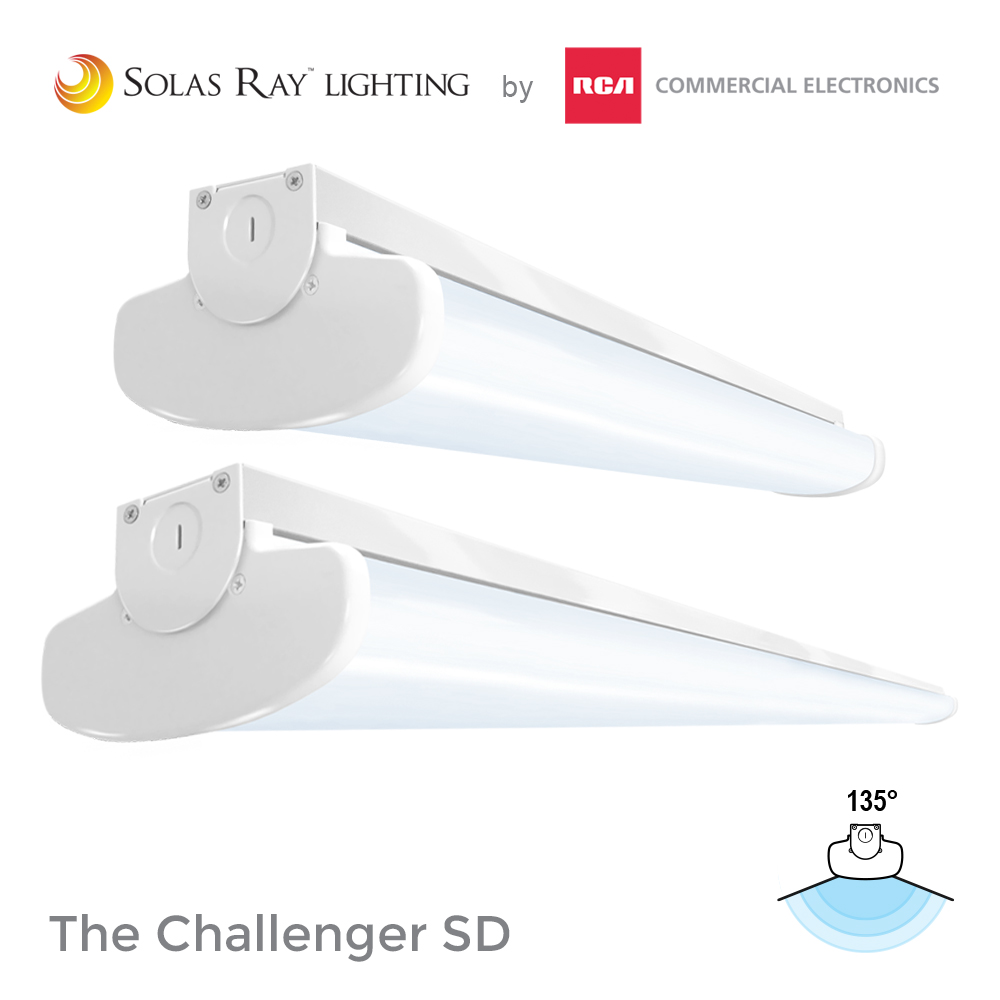

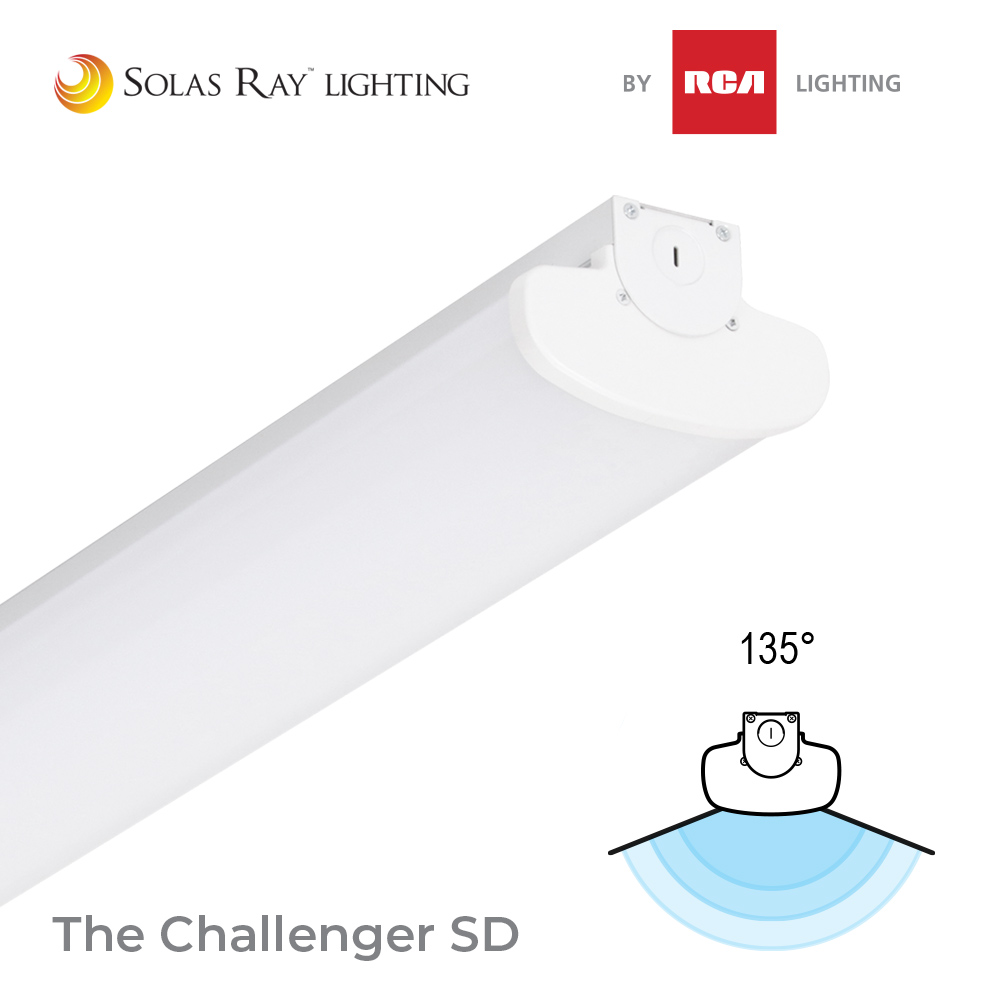

SD Series – The Challenger SD
Wireless Control Linear LED Lighting System
CERTIFICATIONS / RATINGS
• UL Listed
• DLC 5.1 Premium
• UL 1598
• FCC
• RoHS Compliant
• See Specification Sheet For Complete Listing
FEATURES AND BENEFITS
• Available in 4’ and 8’ lengths.
• 135° beam angle.
• DLC v5.1 Premium Listed.

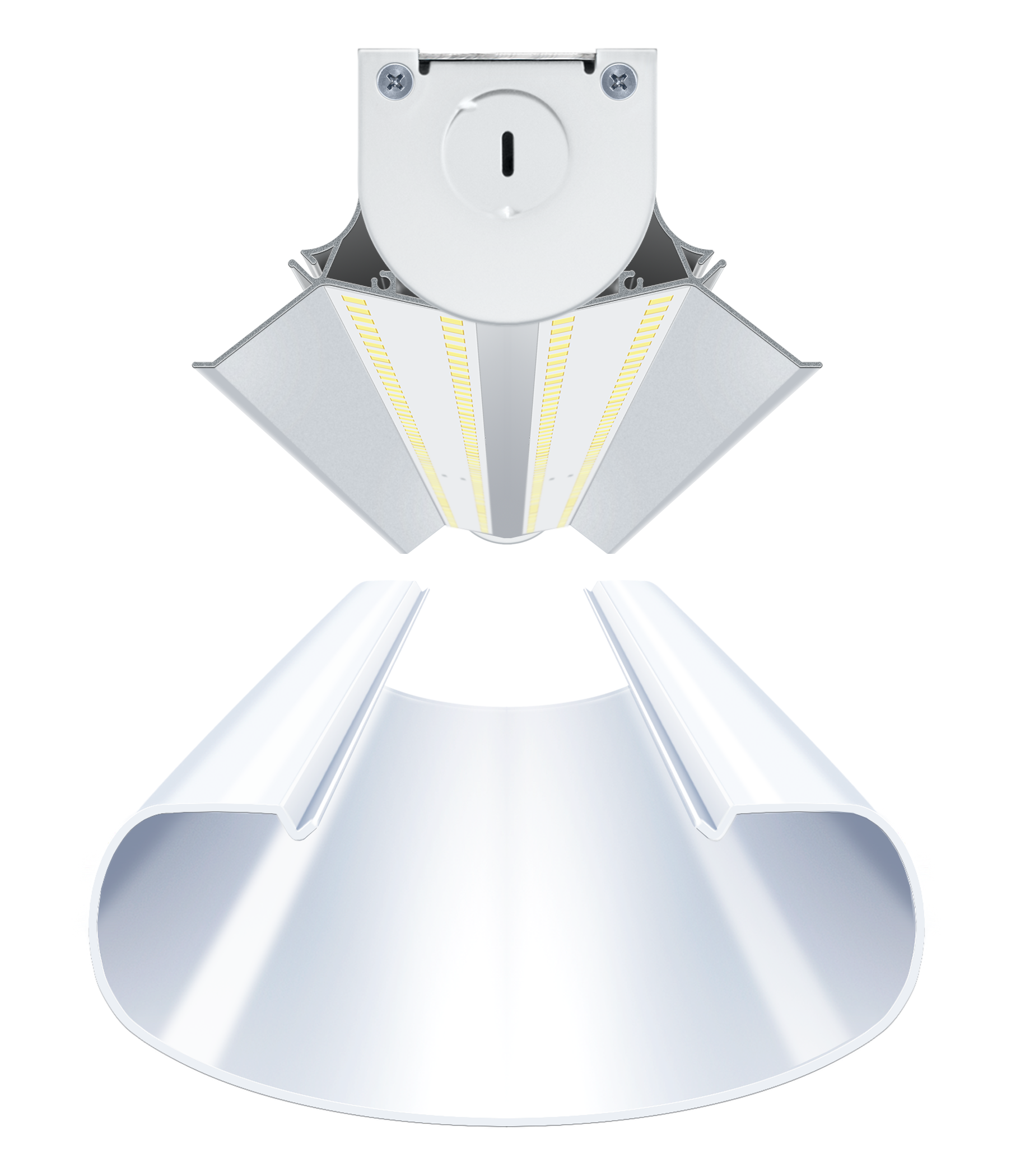

• Precision angled LED arrays establish exact light distribution.
• Plug-and-play ZigBee enabled lighting controls.
• Multi-sensor ready – wired harness included with SD and ST models.
• Diffused polycarbonate lenses eliminate glare and hot spots.

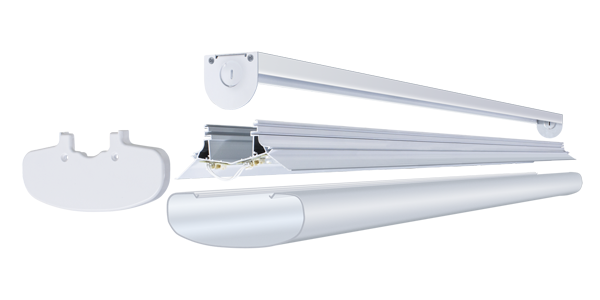

• Lightweight and installer friendly – quick access channel for end-to-end wiring.
• Extruded aluminum housing.
• Low profile fixture body expands mounting possibilities.
• White end caps – color coded for quick visual identification.
• Lead free.
• Trade Agreement Act Compliant.
DOWNLOADS
SPECIFICATIONS
| Voltage | 120- 277VAC |
| Wattage | 40W (4’ models) / 80W (8’ models) |
| Color Temp | 5000 Kelvin standard (4000K/3500K special order) |
| Housing | Extruded aluminum alloy |
| Color | White with white end-caps |
| Lens | Polycarbonate |
| Lifetime | 50,000 hrs L80 |
| CRI | Ra ≥ 80 |
| Beam Angle | 135° |
| Power Factor | cos ≥ 0.9 |
| Efficacy (4’ models) | 148 lm/W |
| Efficacy (8’ models) | 153 lm/W |
| Ambient Temperature | -10°C (14°F) to 40°C (104°F) |
| Warranty | 5 Year Limited Warranty |
LUMENS
| Color Temp | 40W (4ft) | 80W (8ft) |
| 5000K | 5,907 lm | 12,250 lm |
| 4000K* | 5,879 lm | 12,254 lm |
| 3500K* | 5,851 lm | 12,482 lm |
| *4000K / 3500K special order, consult factory for lead times and minimums. | ||
See specification sheet for product ordering selection, mounting options, weights and dimensions.
