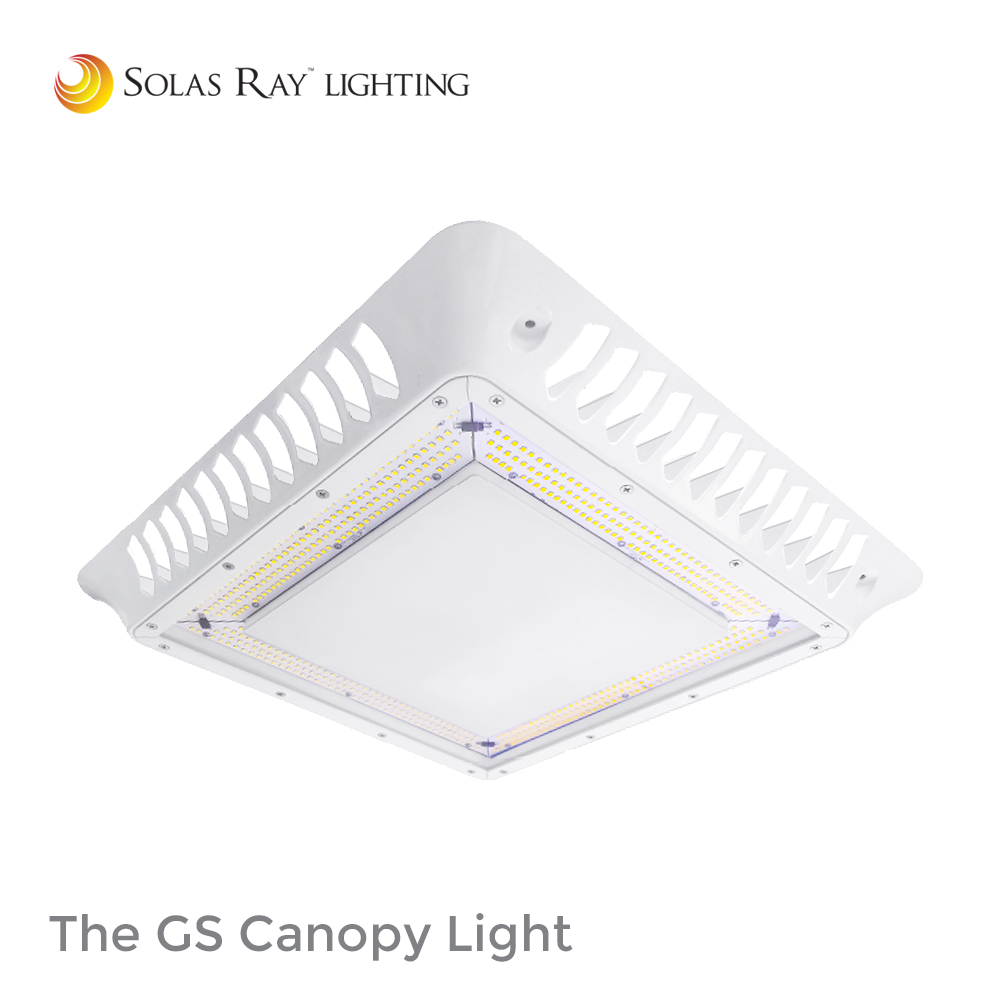

GS Series – Canopy Light
High Efficiency LED Canopy Lighting
CERTIFICATIONS / RATINGS
• UL Listed
• IP65
• DLC 5.1 Premium Listed
• RoHS Compliant
KEY FEATURES AND BENEFITS
• Great solution as a low profile gas station canopy light.
• Excellent optics greatly improve the light utilization and evenness.
• DLC 5.1 Premium listed.
• High luminous efficiency and long working life.
• Wet location rated.
• 1-10v dimming is standard.
• High performance die-cast aluminum heat sink effectively dissipates heat.
• High quality optical glass lens provides soft and even light.
• Universal 120-277 VAC input power.
APPLICATIONS
• Gas Stations
• Museums
• Art Galleries
• Shopping malls
• Parking Garages
DOWNLOADS
SPECIFICATIONS
| Voltage | 120-277 VAC |
| Wattage | 150W / 200W |
| Color Temp | 5000 (standard) / 4000 Kelvin |
| Housing | Die-cast aluminum alloy |
| Color | White |
| Lens | Tempered glass |
| Ambient Temperature | -30°C (-22°F) to 45°C (113°F) |
| Lifetime | >50,000 hrs |
| CRI | 70 |
| Beam Angles | 105° |
| Efficacy | 140 lm/W |
| Power Factor | 0.98 |
| Protection | IP65 |
| Warranty | 5 Year Limited Warranty |
LUMENS
| 150W | 200W |
| 21,250 lm | 28,390 lm |
See specification sheet for product ordering selection, mounting options, weights and dimensions.
