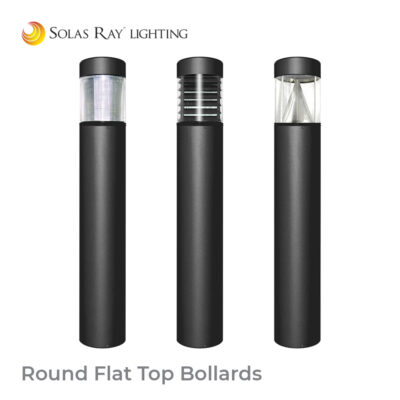

BQFT Series – Round Flat Top Bollards
CERTIFICATIONS / RATINGS
• CSA Listed
• IP65
• UL1598
• UL8750
FEATURES AND BENEFITS
These durable, extruded aluminum round flat topped LED Bollards are designed and produced to provide uniform ambient lighting while accenting any landscape or location.
They provide low glare to a wide area and compared to HID bollard lighting, are a truly cost-effective pathway lighting for retail centers, industrial parks, schools and universities, public transit and airports, office buildings and medical facilities.
• Includes mounting kit with 8” anchor bolts.
• Custom heights and colors are available upon request.
• 0-10V dimming driver.
• Buy American Act compliant.
DOWNLOADS
SPECIFICATIONS
| Voltage | 120-277 VAC |
| Wattage | 10W / 15W / 22W |
| Color Temp | 3000 / 4000 / 5000 Kelvin |
| Housing | Extruded aluminum housing with flush mounting base & vandal-resistant screws. |
| Finish | Powder-coat finish over chromate conversion coating. |
| Color | Architectural bronze / black / custom |
| Lens | Type III / Type V / Type V Louvers / Type V Cone |
| Lifetime | 147,000 hrs L70 |
| Ambient Temperature | -40°C (-40°F) to 50°C (122°F) |
| Protection | IP65 |
| Warranty | 5 Year Limited Warranty |
LUMENS
| Lens | Kelvin | 10W | 15W | 22W |
| Type III | 3000K | 787 lm | 1,101 lm | 1,652 lm |
| 4000K | 853 lm | 1,195 lm | 1,792 lm | |
| 5000K | 889 lm | 1,245 lm | 1,867 lm | |
| Type V | 3000K | 768 lm | 1,076 lm | 1,613 lm |
| 4000K | 833 lm | 1,167 lm | 1,750 lm | |
| 5000K | 868 lm | 1,215 lm | 1,823 lm | |
| Type V Louvers | 3000K | 531 lm | 744 lm | 1,116 lm |
| 4000K | 576 lm | 807 lm | 1,211 lm | |
| 5000K | 600 lm | 841 lm | 1,261 lm | |
| Type V Cone | 3000K | 1,037 lm | 1,452 lm | 2,178 lm |
| 4000K | 1,125 lm | 1,575 lm | 2,362 lm | |
| 5000K | 1,172 lm | 1,641 lm | 2,461 lm |
See specification sheet for product ordering selection, mounting options, weights and dimensions.
