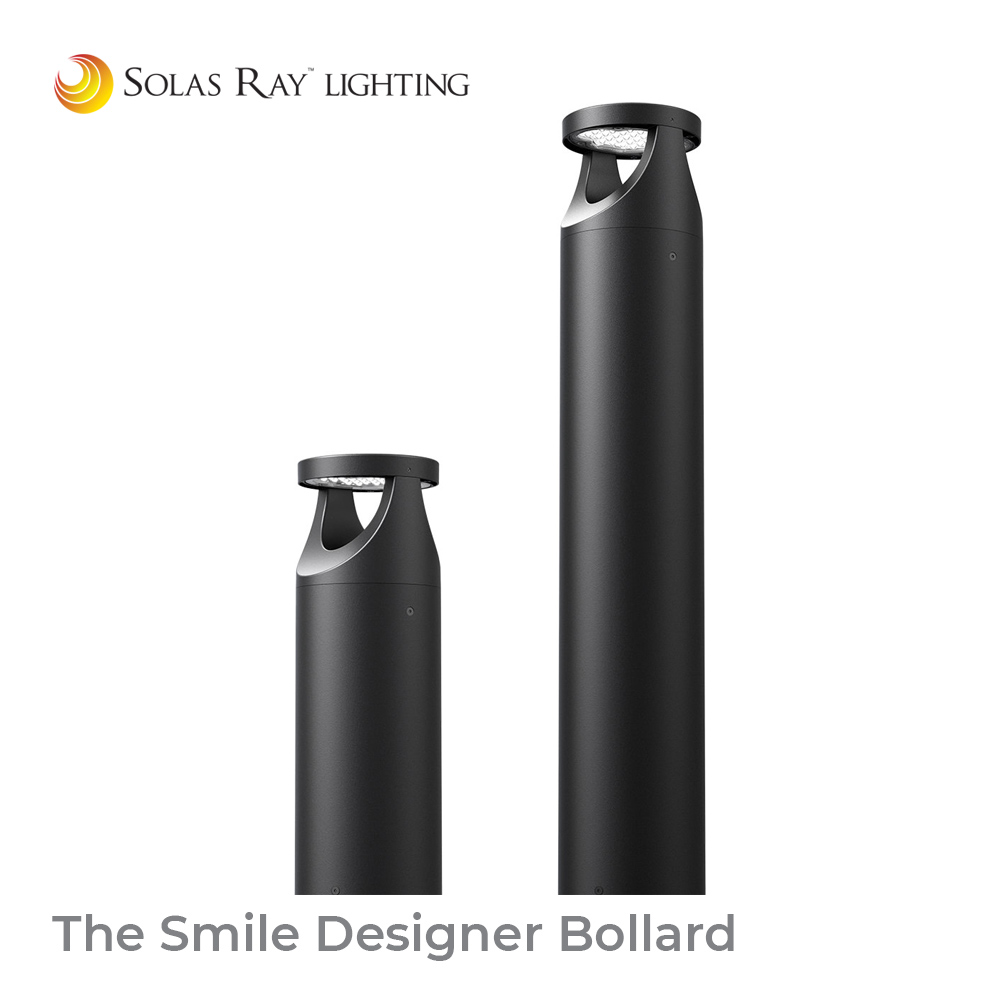

SEG Series – The Smile™ Designer Bollard
CERTIFICATIONS / RATINGS: ETL | DLC | IP66 | IK10
FEATURES AND BENEFITS
• Architectural design bollard perfect for pathways, gardens, entrances, etc.
• Durable aluminum construction with UV resistant powder coated finish.
• Available in 2 heights: 42” and 20”.

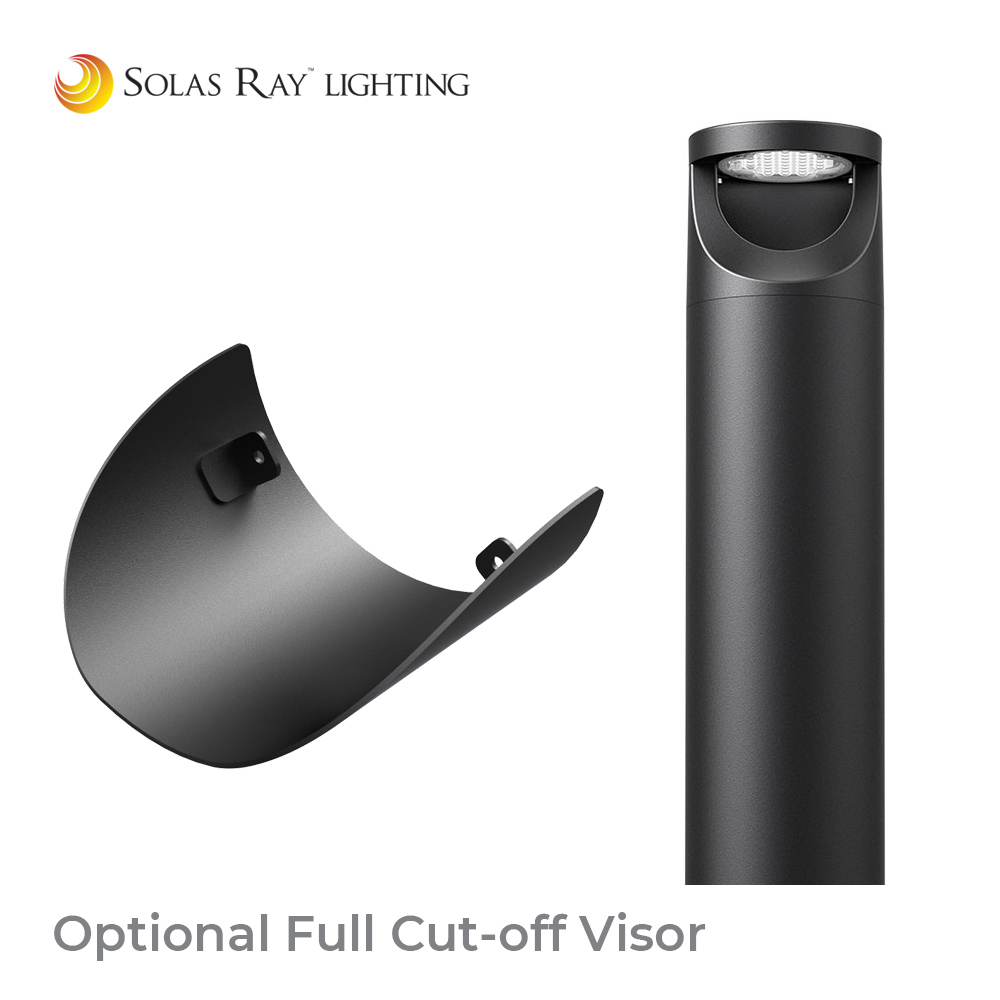

• Optional full cut-off visor to direct light to one side.
• Type V distribution.
• Includes mounting kit with anchor bolts.

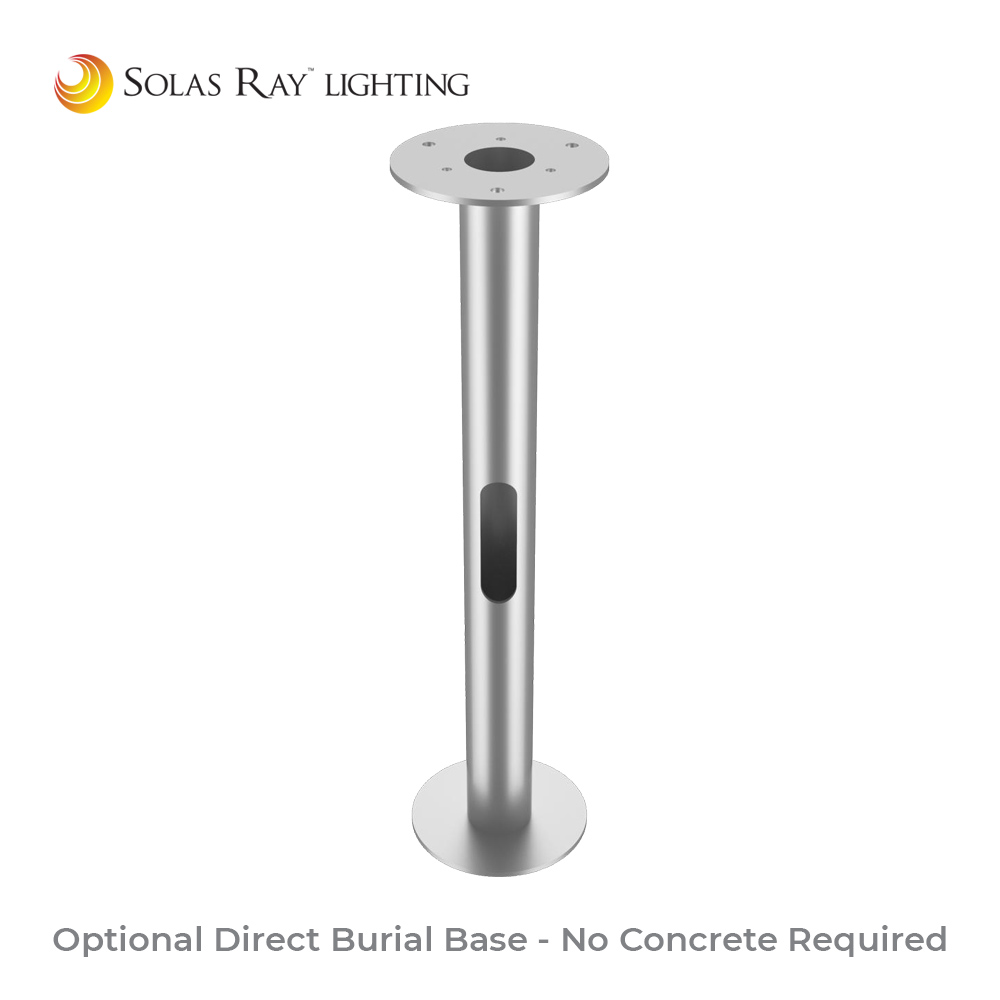

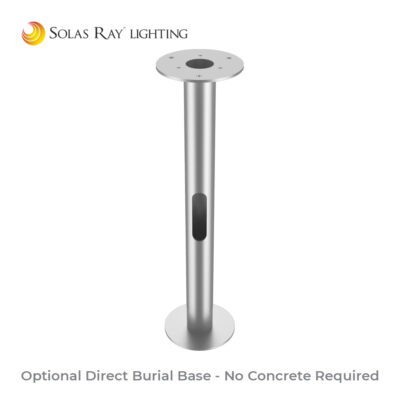

• Optional direct burial base.
• IP66 protection.
• IK10 impact rating.
DOWNLOADS
SPECIFICATIONS
| Voltage | 120-277vAC |
| Wattage | 14w / 24w |
| Color Temp | 3000 / 4000 (standard) / 5000 Kelvin |
| Housing | Aluminum alloy with UV resistant powder coating |
| Color | Black (RAL 9017) |
| Lens | Polycarbonate |
| Optics | Type V |
| Lifetime | 124,600 hrs L70 |
| Power Factor | >0.9 |
| Efficacy | 120 lm/w (14w) / 105 lm/w (24w) |
| Ambient Temperature | -30°C (-22°F) to 50°C (122°F) |
| Protection | IP66 |
| Warranty | 5 Year Limited Warranty |
LUMENS
| 14w | 24w |
| 1,680 lm | 2,520 lm |
