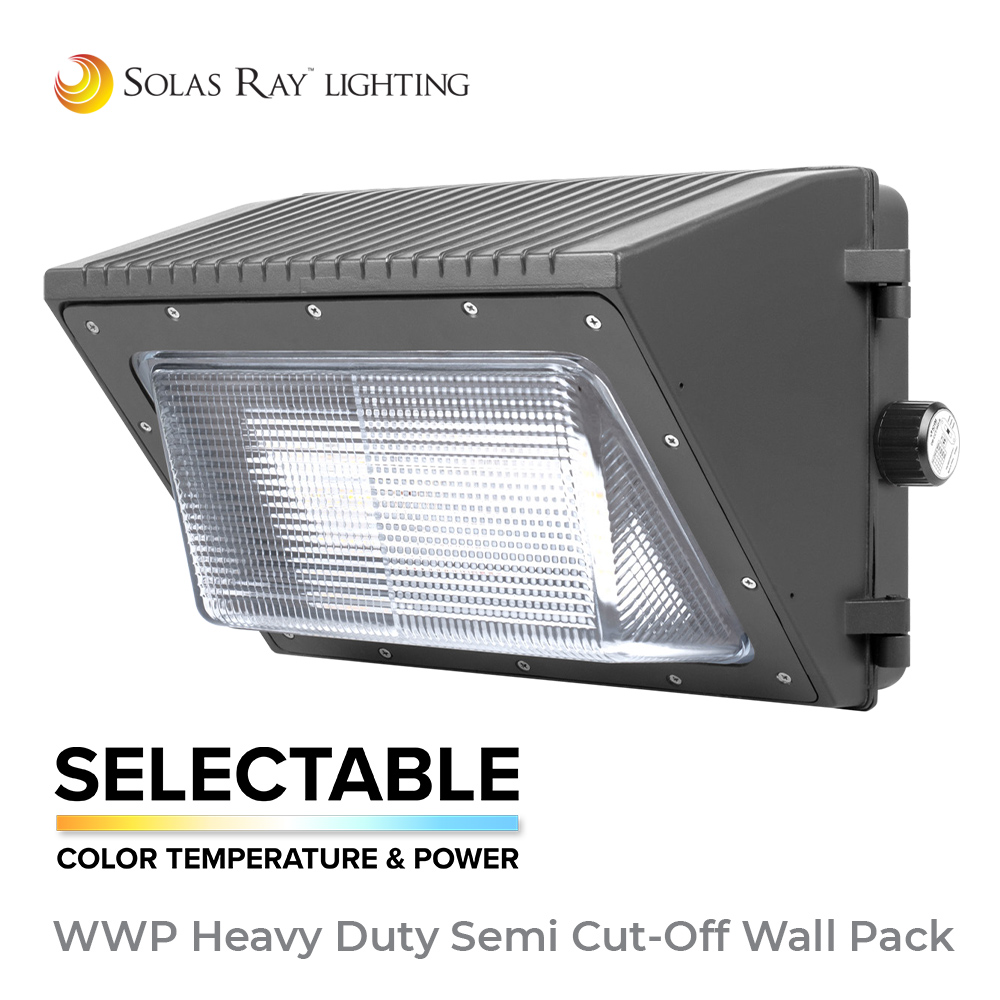

WWP Series – Power & CTT Selectable Heavy Duty Semi Cut-Off Wall Pack
CERTIFICATIONS / RATINGS
• UL Certified
• DLC Premium
• FCC
• ROHS Compliant
• IP65
KEY FEATURES AND BENEFITS

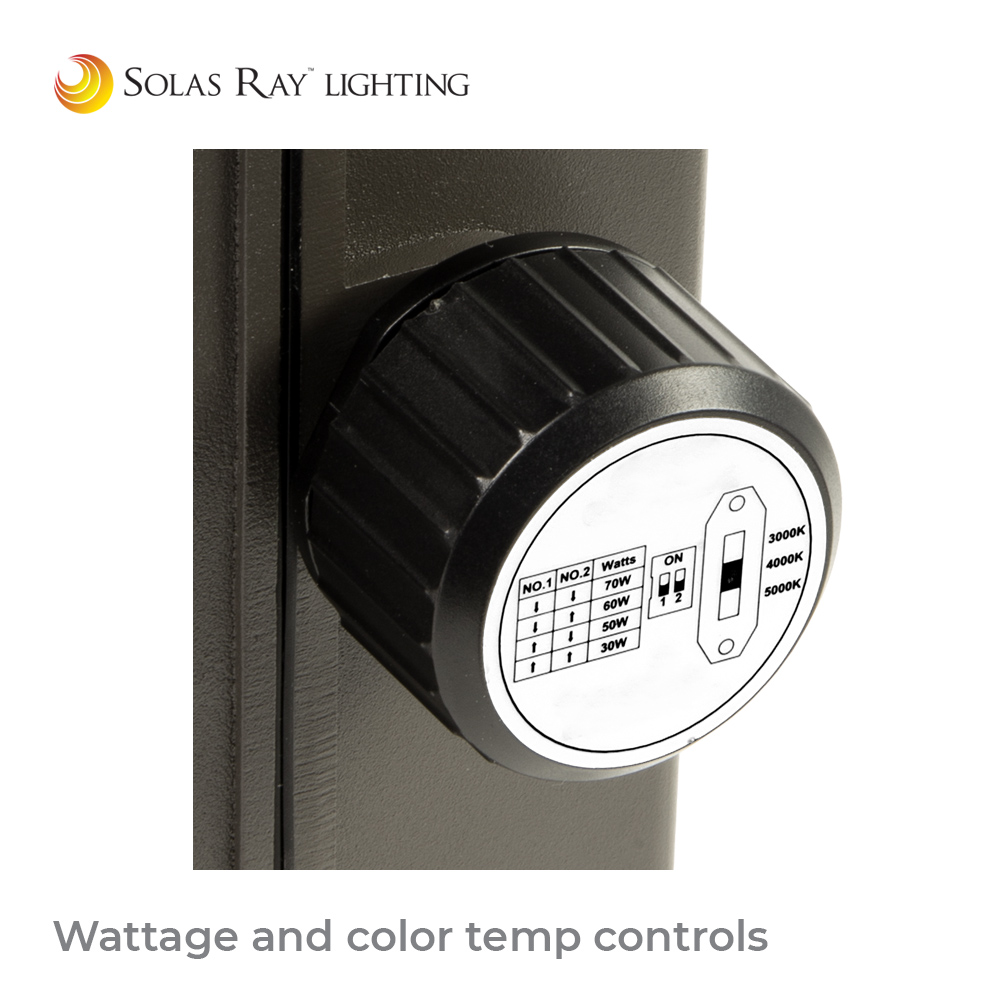

• Field adjustable wattage 30w / 50w / 60w / 70w.
• Field adjustable color temperature 3000K / 4000K / 5000K.

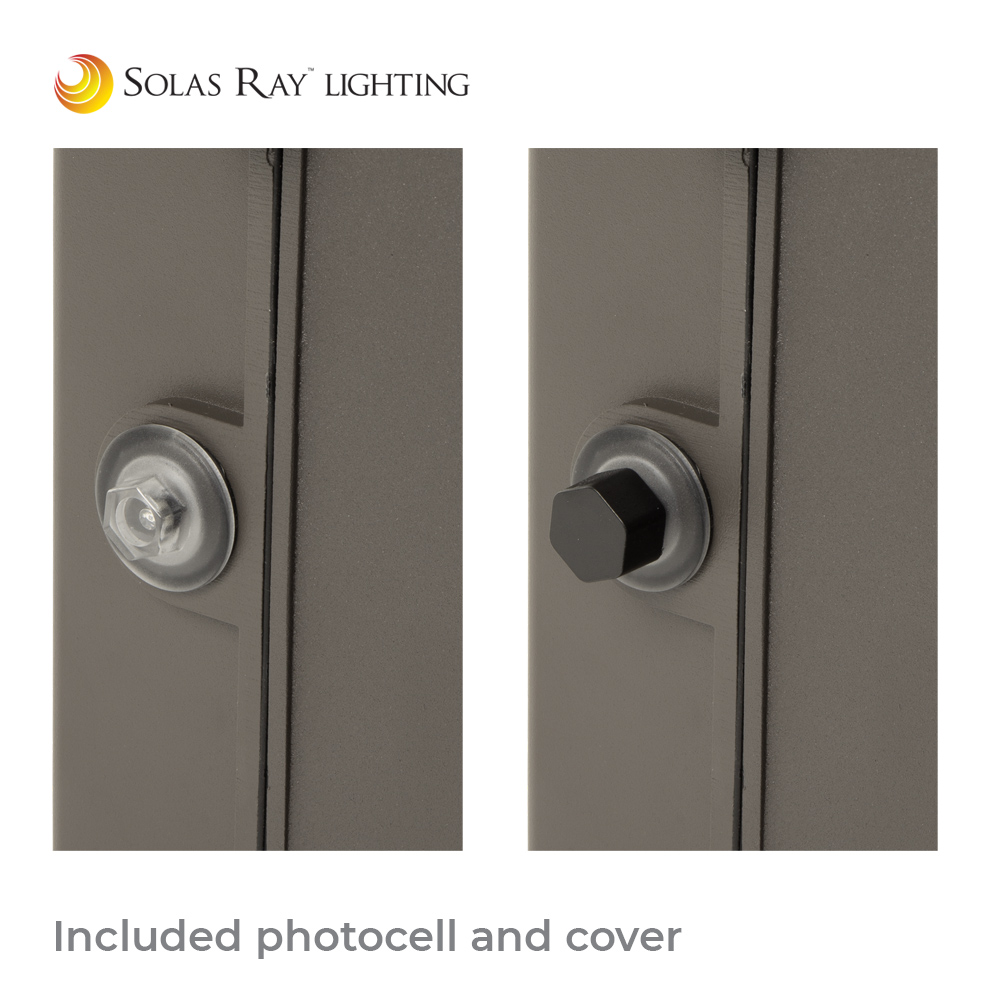

• Photocell included standard – comes with cover for non-photocell operation.
• Excellent optics for greatly improved light utilization and even distribution.
• High efficiency LED (up to 129 lm/w).
• Long life (75,000 hrs).
• 1-10V dimming.
DOWNLOADS
SPECIFICATIONS
| Voltage | 120-277vAC |
| Wattage | Selectable 30w / 50w / 60w / 70w |
| Lumens | Selectable (See Chart) |
| Color Temp | Selectable 3000 / 4000 / 5000 Kelvin |
| Housing | Cast aluminum |
| Lens | Glass |
| Efficacy | Up to 129 lm/w |
| CRI | 70 |
| Power Factor | 0.95 |
| Driver Efficacy | 90% |
| Beam Angle | 87° x 118° |
| Life Span | 75,000 hrs |
| Ambient Temperature | -30°C (-22°F) to 45°C (113°F) |
| Warranty | 5 Year Limited Warranty |
LUMENS
| Setting | 30w | 50w | 60w | 70w |
| Lumens | 4,368 | 6,821 | 8,047 | 9,032 |
See specification sheet for product ordering selection, mounting options, weights and dimensions.
