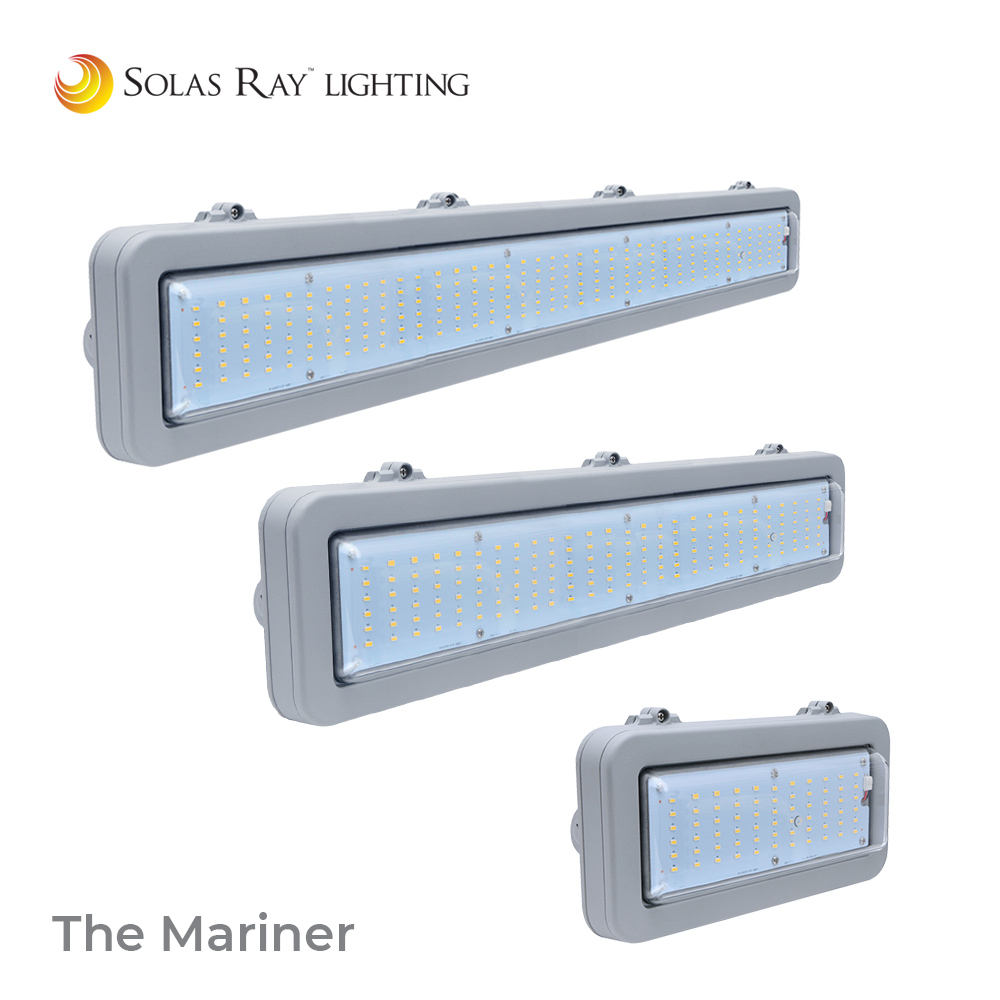

LQ Series – The Mariner™
Vandal-Proof / Harsh Environment LED Lighting
(Includes LQH1 / LQH1C / LQV1C / LQH2 / LQH4Series)
CERTIFICATIONS / RATINGS
• CSA Listed
• IP66
• UL1598
• UL8750
FEATURES AND BENEFITS
• Available in 3 lengths: 1ft / 2ft / 4ft.
• Heavy-duty die-cast aluminum housing.
• Tapped conduit entry, all four sides.
• Gray powder-coat finish over a chromate conversion coating.
• Clear or opal polycarbonate vandal-resistant lens.
• Easy installation and maintenance.
• Horizontal and vertical hood options on 1’ models.
• Sensors and emergency battery backup options available.
• Natatorium approved.
• 0-10v dimming driver.
• Buy American Act compliant.
DOWNLOADS
OTHER AVAILABLE MARINERS
The Mariner is also available in a Hazardous Location Class I, Div2 rated version. See HQ Series.
SPECIFICATIONS
| Voltage | 120-277 VAC / 374-480VAC |
| Wattage | 26W / 43W / 58W / 77W / 126W / 152W |
| Color Temp | 4000 / 5000 Kelvin |
| Housing | Die-cast aluminum |
| Color | Gray |
| Lens | Clear Polycarbonate (Standard) |
| Opal Polycarbonate (Optional) | |
| Lifetime | 138,000 hrs L70 |
| Ambient Temp. | -40°C (-40°F) to 50°C (122°F) |
| CRI | ≥80 |
| Power Factor | >0.90 |
| Efficacy | 88 to 134 lm/W |
| Protection | IP66 |
| Warranty | 5 Year Limited Warranty |
LUMENS
| Size / Type | Watts | Kelvin | Clear Lens | Opal Lens |

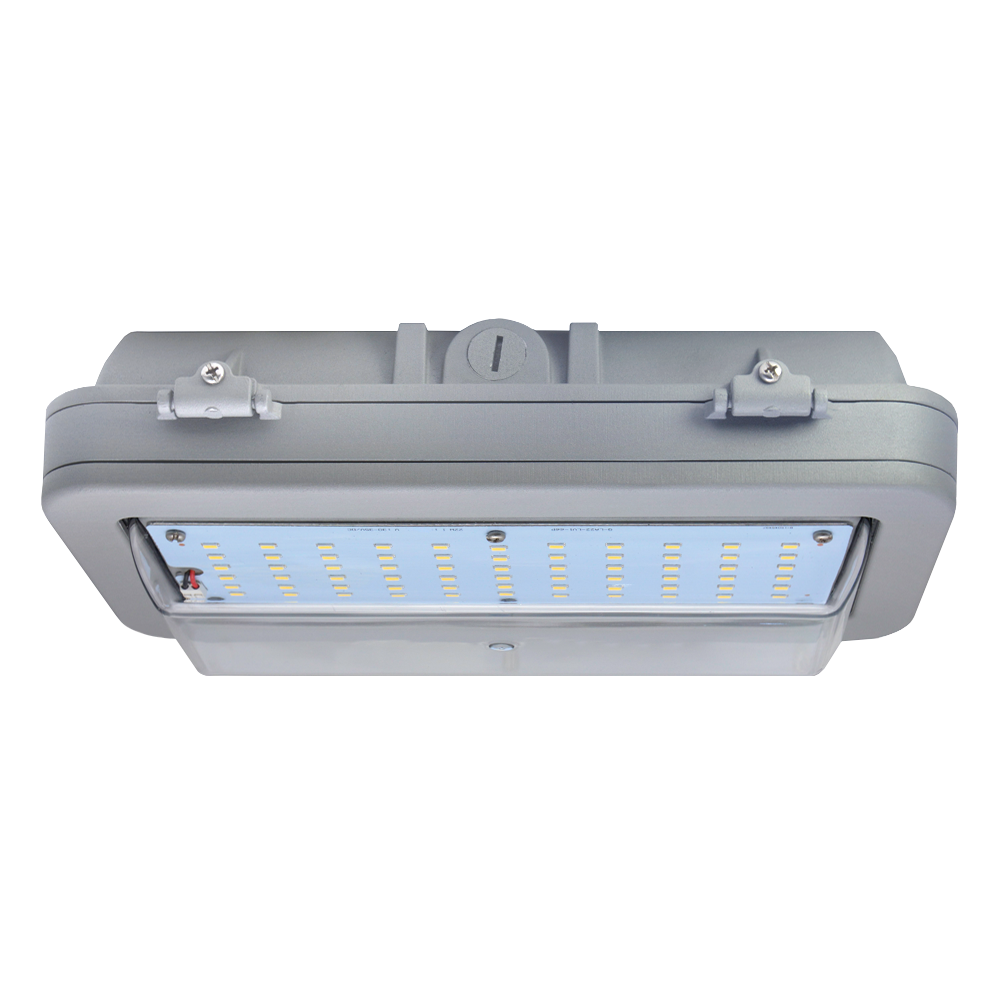

| 1′ Open Frame | 26W | 4000K | 3,199 lm | 2,828 lm |
| 5000K | 3,332 lm | 2,945 lm | ||
| 43W | 4000K | 5,316 lm | 4,750 lm | |
| 5000K | 5,538 lm | 4,948 lm | ||
| 1′ Horizontal Hood | 26W | 4000K | 3,001 lm | 2,274 lm |
| 5000K | 3,126 lm | 2,369 lm | ||
| 43W | 4000K | 4,684 lm | 3,980 lm | |
| 5000K | 4,879 lm | 4,071 lm | ||

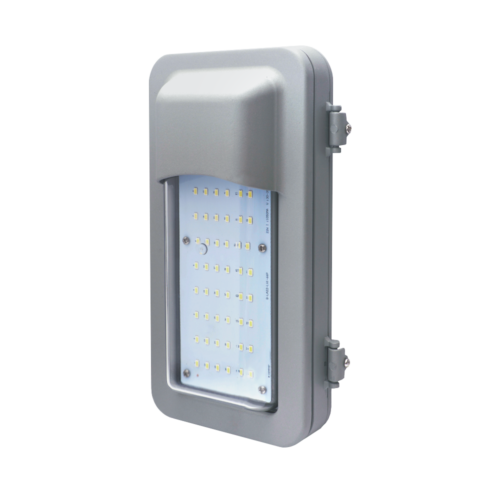

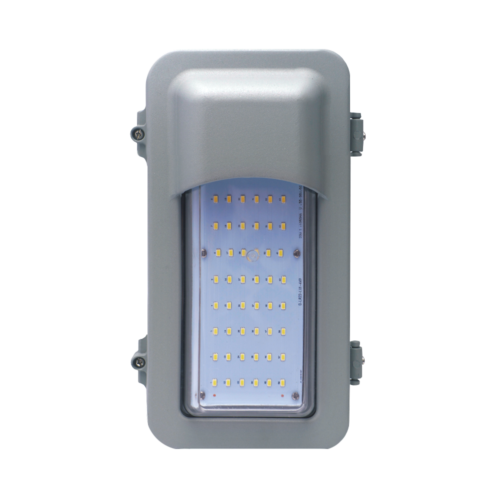

| 1′ Vertical Hood | 26W | 4000K | 3,172 lm | 2,597 lm |
| 5000K | 3,305 lm | 2,705 lm | ||
| 43W | 4000K | 5,082 lm | 4,223 lm | |
| 5000K | 5,292 lm | 4,399 lm | ||
| 2’ | 58W | 4000K | 7,017 lm | 5,695 lm |
| 5000K | 7,309 lm | 5,932 lm | ||
| 77W | 4000K | 9,882 lm | 8,021 lm | |
| 5000K | 10,294 lm | 8,356 lm | ||
| 4’ | 126W | 4000K | 15,636 lm | 13,172 lm |
| 5000K | 16,287 lm | 13,720 lm | ||
| 152W | 4000K | 18,982 lm | 15,930 lm | |
| 5000K | 19,773 lm | 16,594 lm |
See specification sheet for product ordering selection, mounting options, weights and dimensions.
The Mariner replaces the SVIN Series Vindicator and SVIC Series Victor.
