LSH Series – The Cylinder™
Washdown / Food Service / NSF Rated
CERTIFICATIONS / RATINGS
• UL Listed
• DLC Listed
• NSF
• IP69K
• IK10
• RoHS Compliant
• CE
• See Specification Sheet For Complete Listing
KEY FEATURES AND BENEFITS

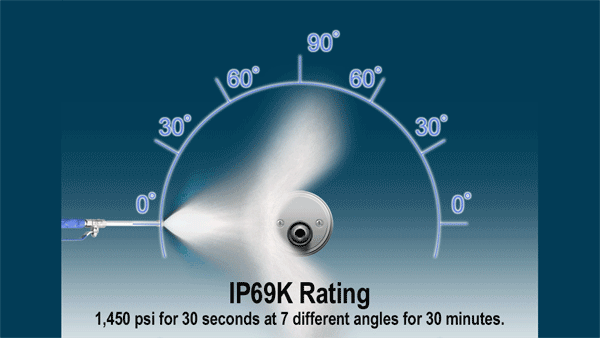

• NSF / IP69K rated for applications where high pressure and/or high temperature wash-down is used to sanitize or clean equipment (indoor/outdoor).
• Perfect for food processing and agricultural applications.
• Stainless steel electrical connector (required for NSF and IK10 ratings).
• Stainless steel end-caps with polycarbonate body tube for corrosion resistance.
• Stainless steel mounting clamps included.
• Frosted or clear lens options.
• UL class P certified flicker free driver.
• Optional connectors on both ends to run in series.
• Available in 2 ft, 4ft and 5 ft lengths
DOWNLOADS
SPECIFICATIONS
| Voltage | 100-277 VAC |
| Wattage | 20W / 36W / 45W / 60W |
| Color Temp | 3000 / 4000 / 5000 / 6000 Kelvin |
| Ambient Temperature | -20°C (-4°F) to 40°C (104°F) |
| Housing | S304 Stainless Steel End-caps |
| Lens | UV Resistant Polycarbonate |
| Lifetime | 50,000 hrs L80 |
| CRI | >80 |
| Beam Angle | 120° |
| Power Factor | >0.95 |
| Protection | IP69K / IK10 |
| Warranty | 5 Year Limited Warranty |
LUMENS
| 20W | 36W | 45W | 60W |
| 2,600 lm | 4,680 lm | 5,850 lm | 7,800 lm |
See specification sheet for product ordering selection, mounting options, weights and dimensions.
