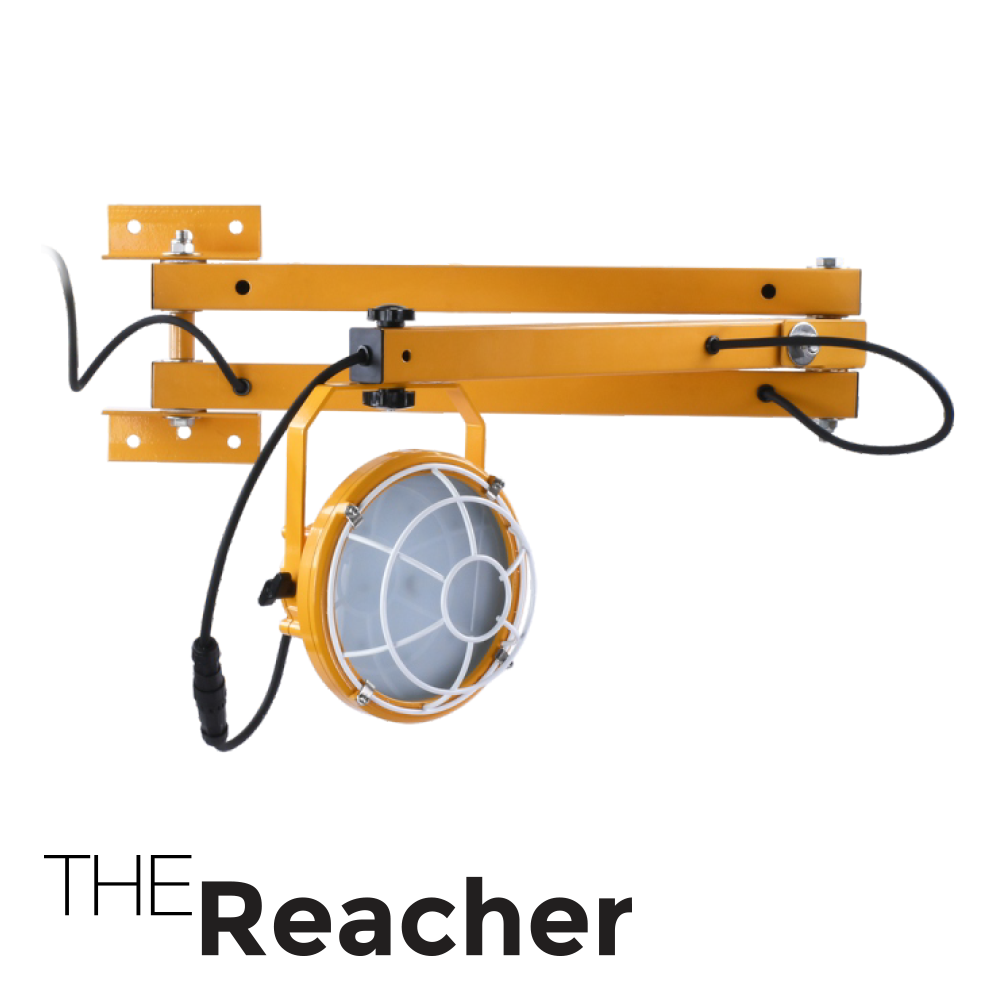

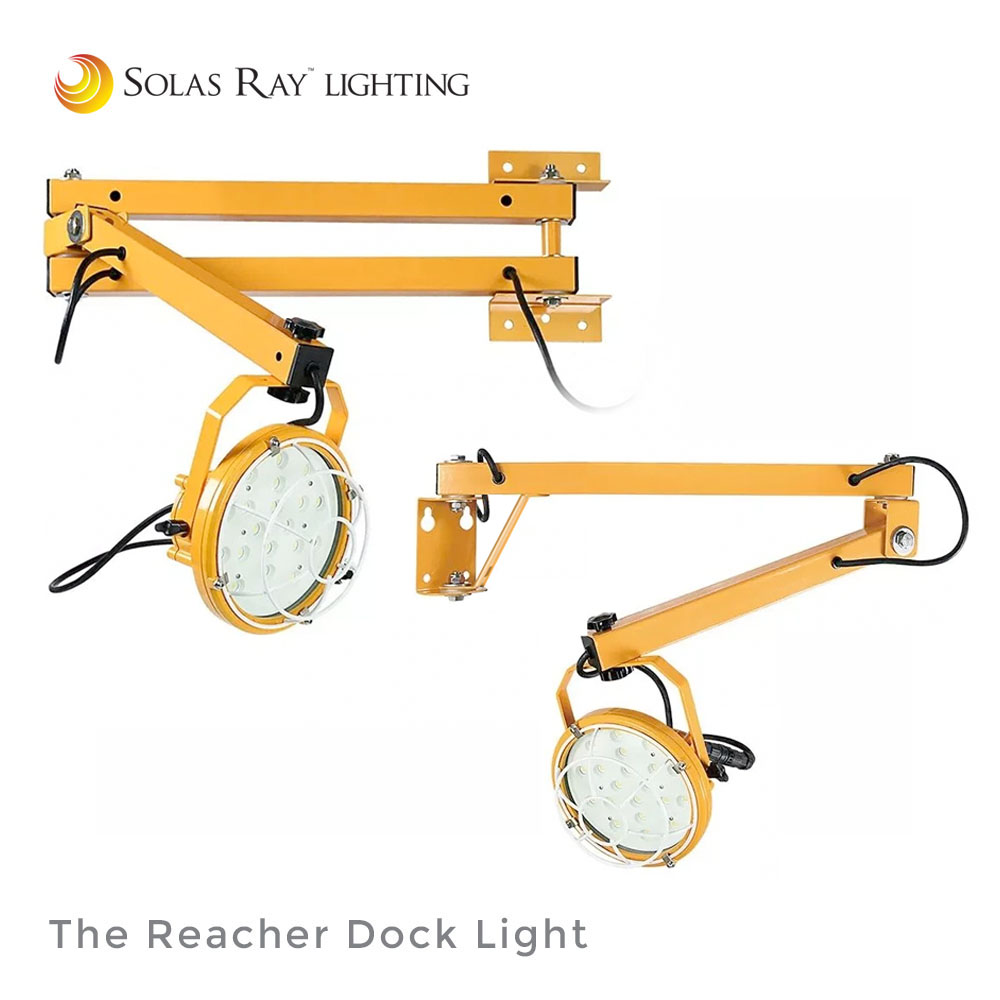

DLYL Series – The Reacher LED Dock Light
CERTIFICATIONS / RATINGS
• ETL Listed
• IP65
• Accomplishes OSHA Standard 1910
KEY FEATURES AND BENEFITS
• Heavy-duty design built with rugged components.
• Designed to withstand harsh loading dock environments.

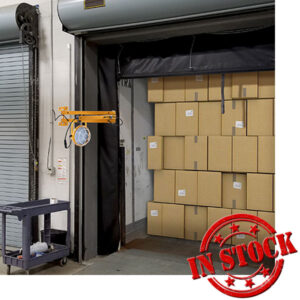

• Easily positions to provide exceptional light inside entire length of trailer.
• Accomplishes OSHA standard 1910 requiring loading docks to be lighted.
• Features a powder coat finish in “Safety Yellow.”

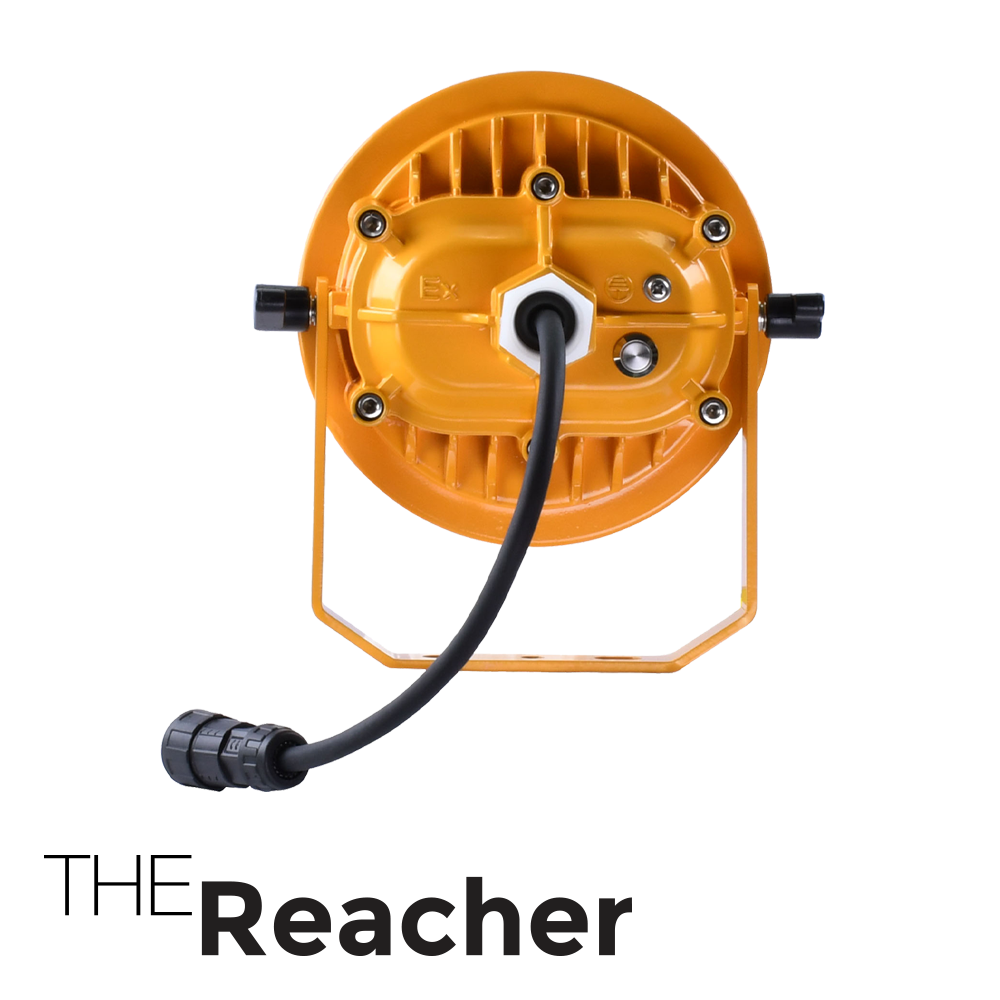

• Built-in heat dissipation – always cool to the touch.

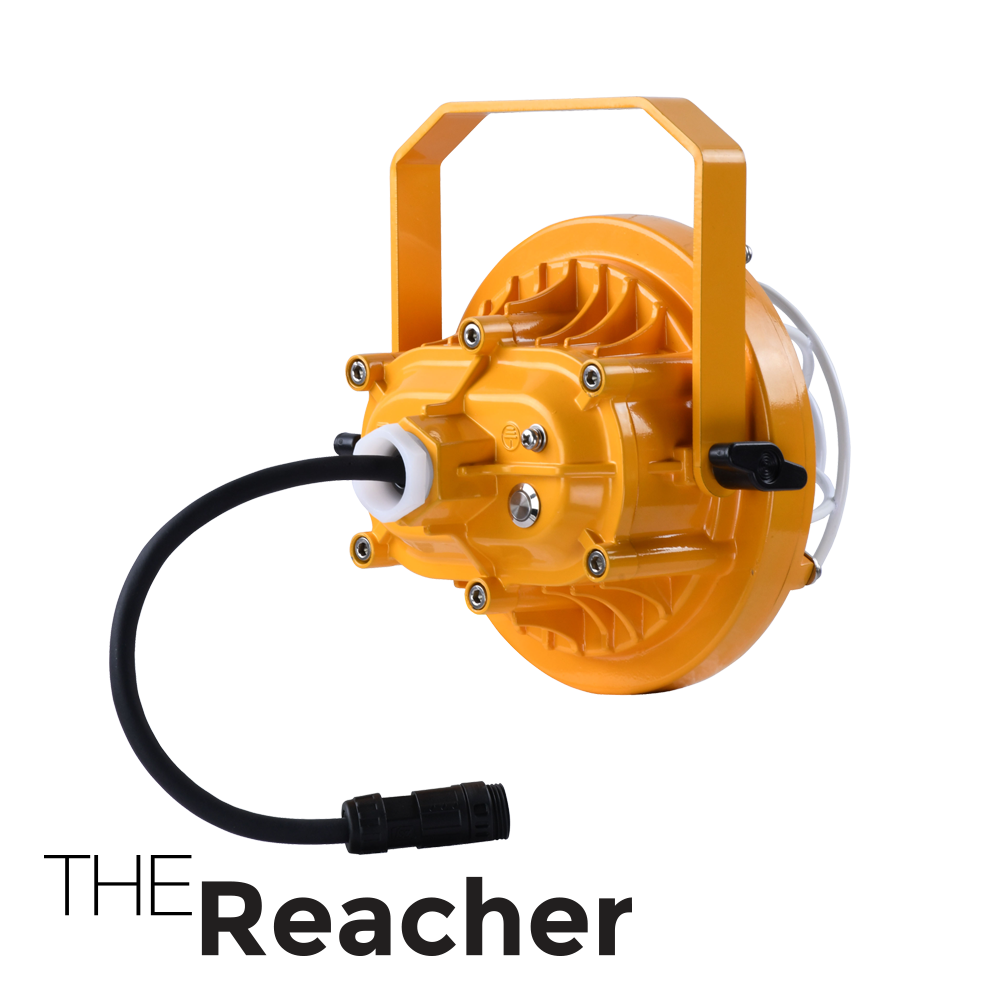

• ON/OFF switch on back of lamp.
• Twist knobs for lamp pivoting and lamp turning.
• Wire guard included standard.
• Includes standard NEMA 5-15P plug
DOWNLOADS
SPECIFICATIONS
| Voltage | 120-277VAC |
| Wattage | 20W / 30W / 50W |
| Color Temp | 4000 / 5000 Kelvin |
| Housing | Powder coated aluminum |
| Color | Safety yellow |
| Lens | Tempered glass |
| Ambient Temperature | -22°C (-8°F) to 45°C (113°F) |
| CRI | >80 |
| Beam Angle | 90° |
| Power Factor | >0.90 |
| Protection | IP65 |
| Warranty | 5 Year Limited Warranty |
LUMENS
| Watts | Lumens | Size |
| 20W | 2,200 | 6” Diameter |
| 30W | 3,300 | 6” Diameter |
| 50W | 6,000 | 8” Diameter |
See specification sheet for product ordering selection, mounting options, weights and dimensions.
