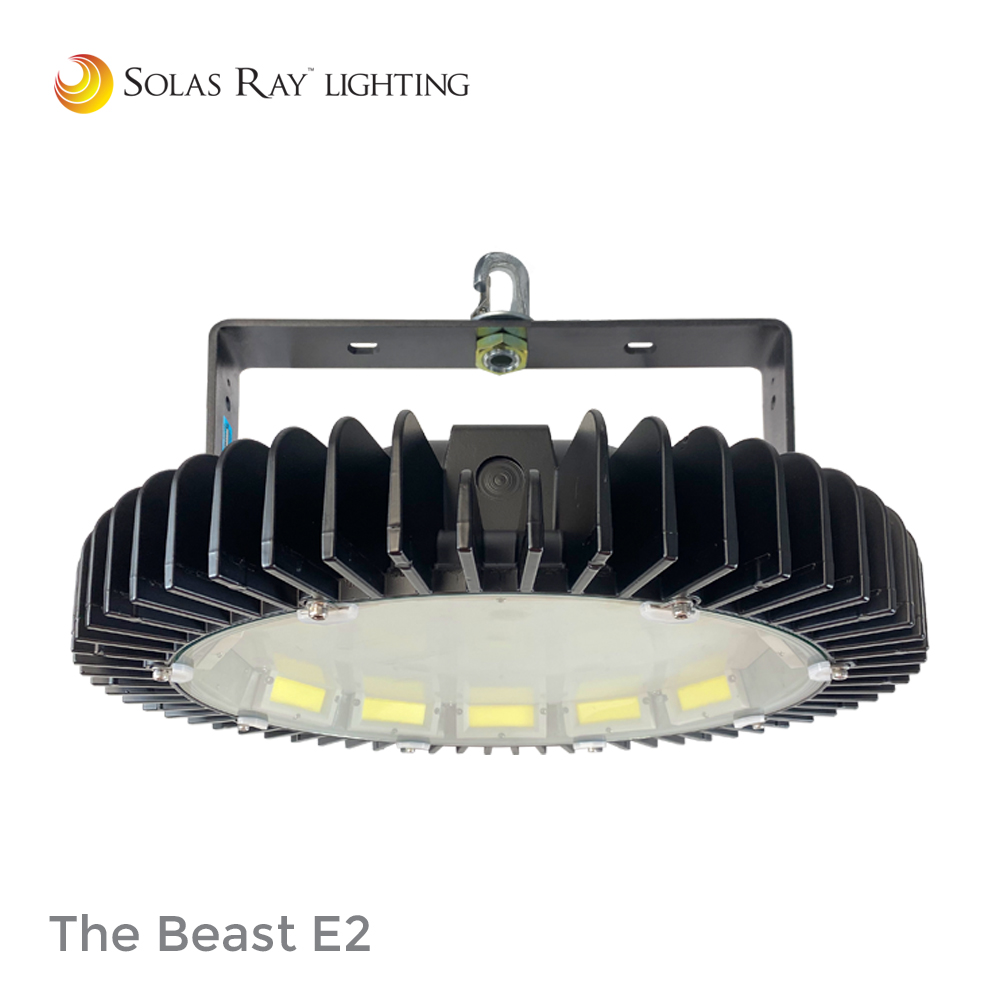

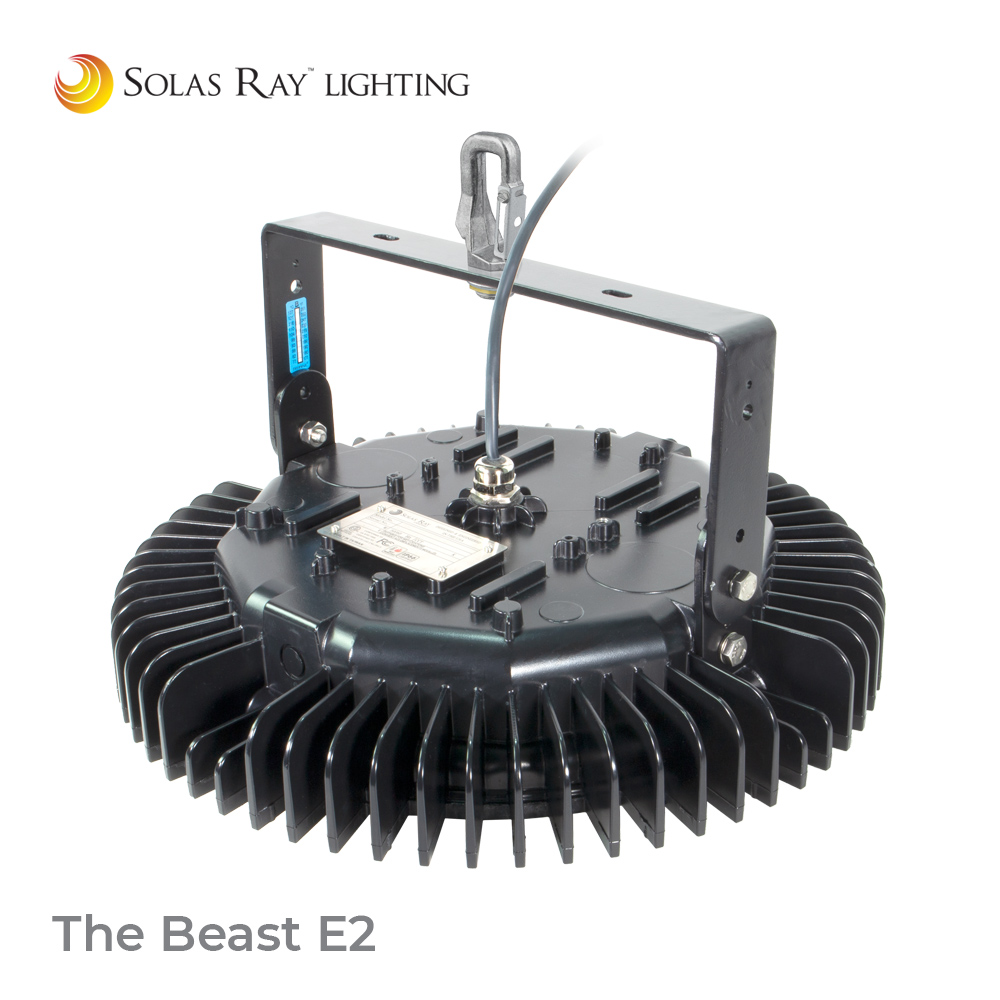

DBL Series – The Beast™ Evolution 2
KEY FEATURES AND BENEFITS
• Die-cast aluminum alloy housing with built-in cooling fins.
• Ambient temperature rated at -70°C (-94°F) to 100°C (212°F)

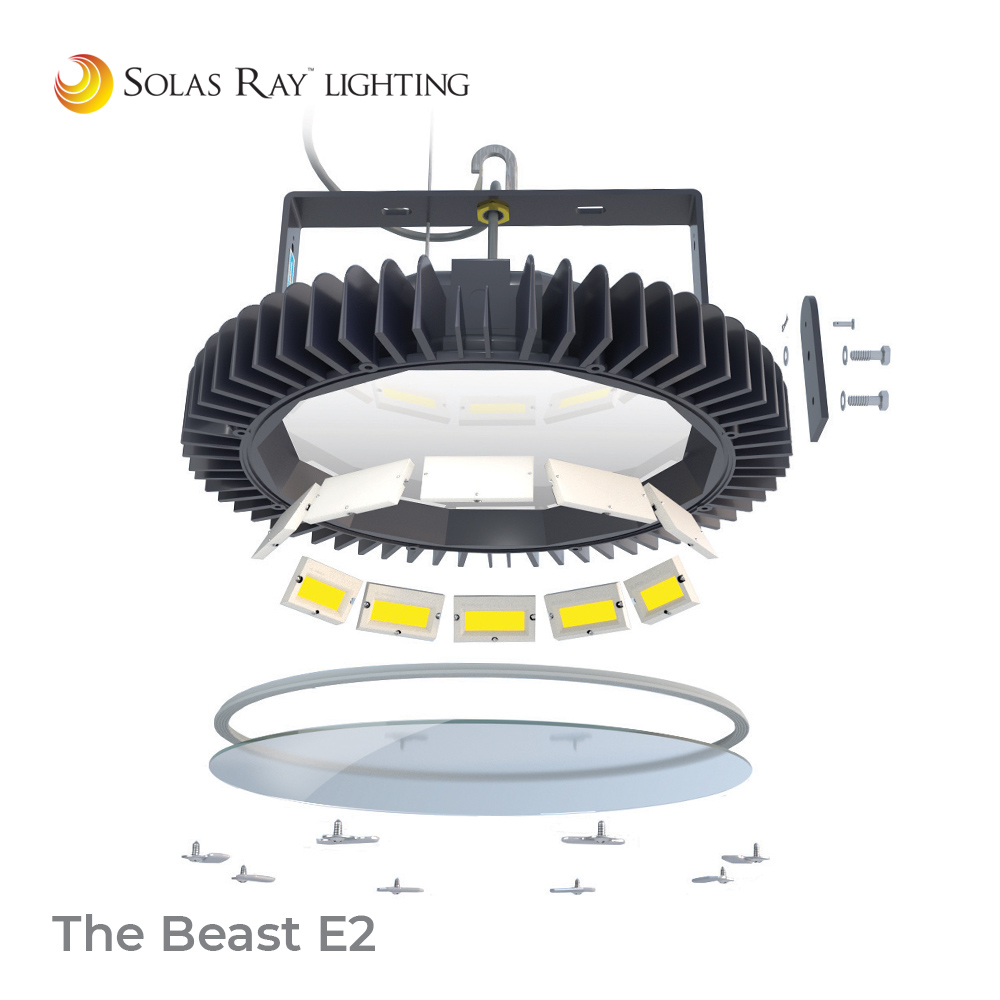

• Proprietary DOB (Driver On Board) LED modules – FIELD REPLACEABLE
– Reduces long term cost by avoiding fixture replacement.
• Flat tempered glass lens sealed with specialized silicone rubber gasket.
• Black corrosion resistant PVDF (Polyvinylidene Fluoride Finish).
– Flame resistance holds up to high temperatures.
– Chemical and abrasion resistance for harsh industrial conditions.
– Provides UV stability and seal for hardware connections
• All hardware and cable gland are stainless steel
• Multi-layered lens gasket and lens clasp boots composed of silicone rubber.
• 10′ AWM style 4476 power cord is rated for 600v and 200°C
• Power cord is silicone rubber sealed inside the cable gland.

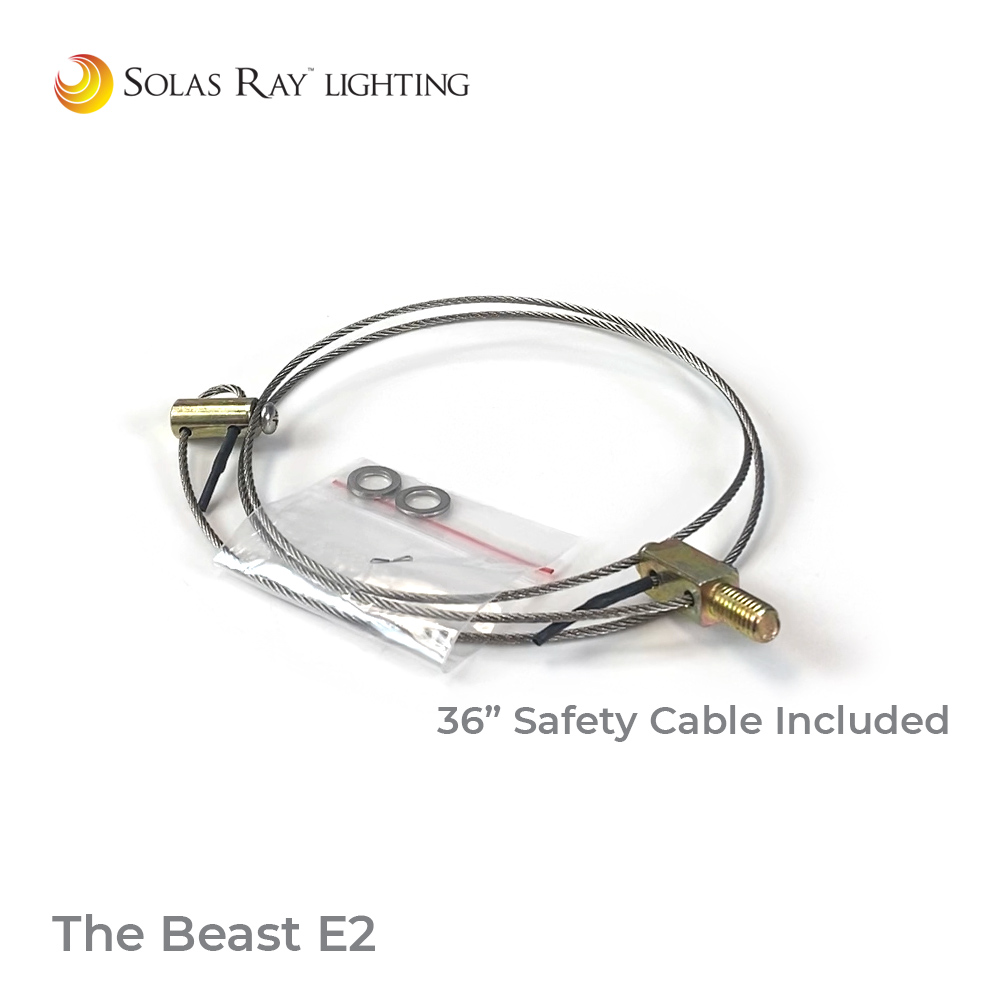

• Cord accepting latching hook and safety cable standard.
• Stainless steel nameplate with QR code for product registration.
• 1,000 hour salt-fog test yielded no corrosion. [ASTM B117-19/ASTM D610-08(2019)]
• Trade Agreement Act (TAA) compliant.
Proprietary Solas Ray (DOB) Driver On Board Led Modules are field replaceable.
DOWNLOADS

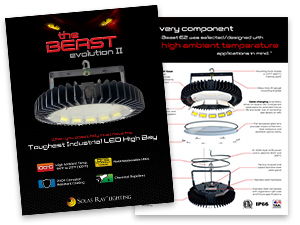

Download Beast E2 Brochure
VIDEO
SPECIFICATIONS
| Voltage | 120VAC / 277VAC / 347VAC / 480VAC |
| Wattage | 210W / 350W (+/- 10%) |
| Color Temp | 5000 Kelvin |
| Housing | PVDF coated aluminum alloy |
| Color | Black |
| Lens | Flat tempered glass lens |
| Efficacy | 98.6 lm/W(350W) / 95 lm/W(210W) |
| CRI | >70 |
| Beam Angle | 150° |
| Cable Gland | Stainless steel |
| Power Cord | 200°C rated, 10′ length |
| Ambient Temperature | -70°C (-94°F) to 100°C (212°F) |
| Warranty | See Specification Sheet |
LUMENS
| 210W | 350W |
| 20,706 | 35,000 |
See specification sheet for product ordering selection, mounting options, weights and dimensions.
beastfamily
