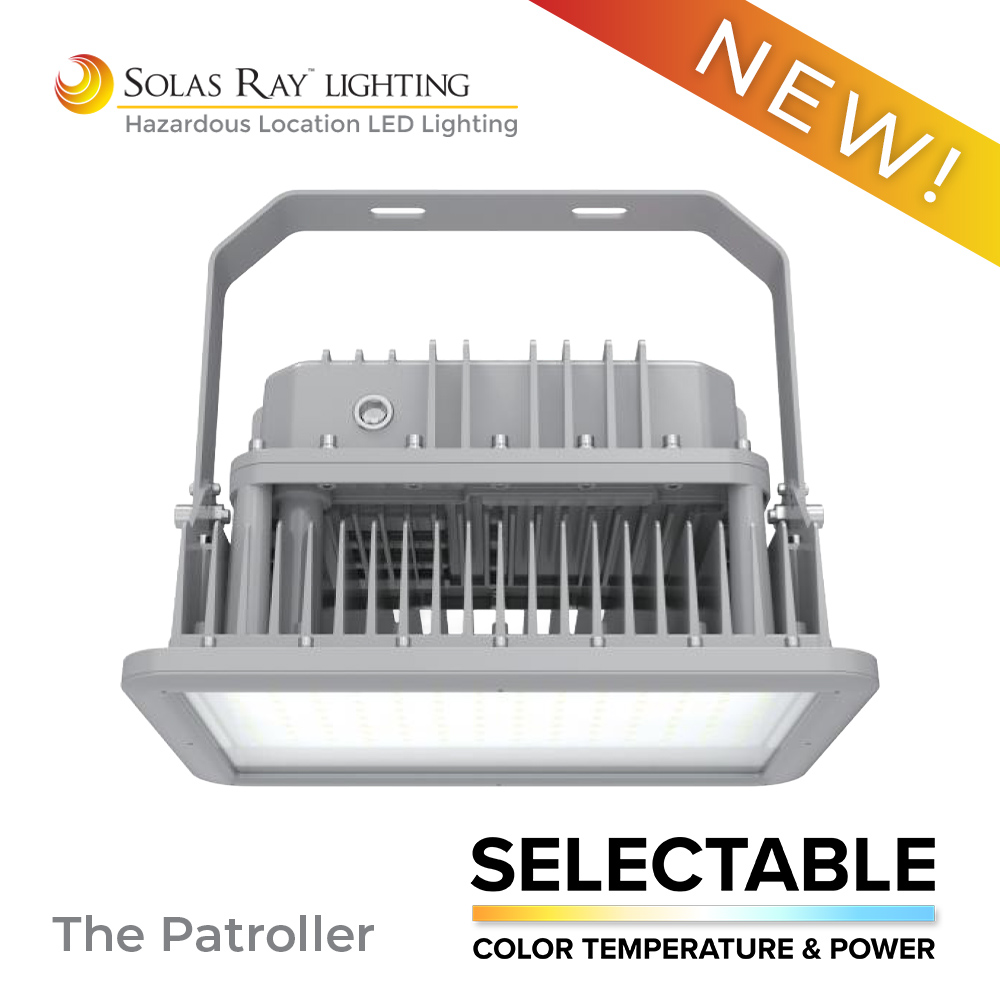

HJAS Series – The Patroller™

Hazardous Location LED Light

CERTIFICATIONS / RATINGS

UL STANDARDS
• UL 844 – Hazardous Locations | UL 1598 | UL 1598A

NEC and CEC
• Class I, Div 2 – Groups A, B, C, D
• Class II, Div 1 – Groups E, F, G
• Class II, Div 2 – Groups F, G
• Class III

• IP66
• IK08 / IK10*
• See Specification Sheet For Complete Listing

KEY FEATURES AND BENEFITS

• Hazardous Location lighting with selectable CCT and power.
• Ideal choice for high moisture, dirty, corrosive, windy, snowy, high temperature or high vibration environments (Vibration 3G certified).
• Round access cover for easy and convenient wiring.
• Marine rated powder coated finish for high corrosion resistance.
• *IK08 impact rated, IK10 with wire guard.

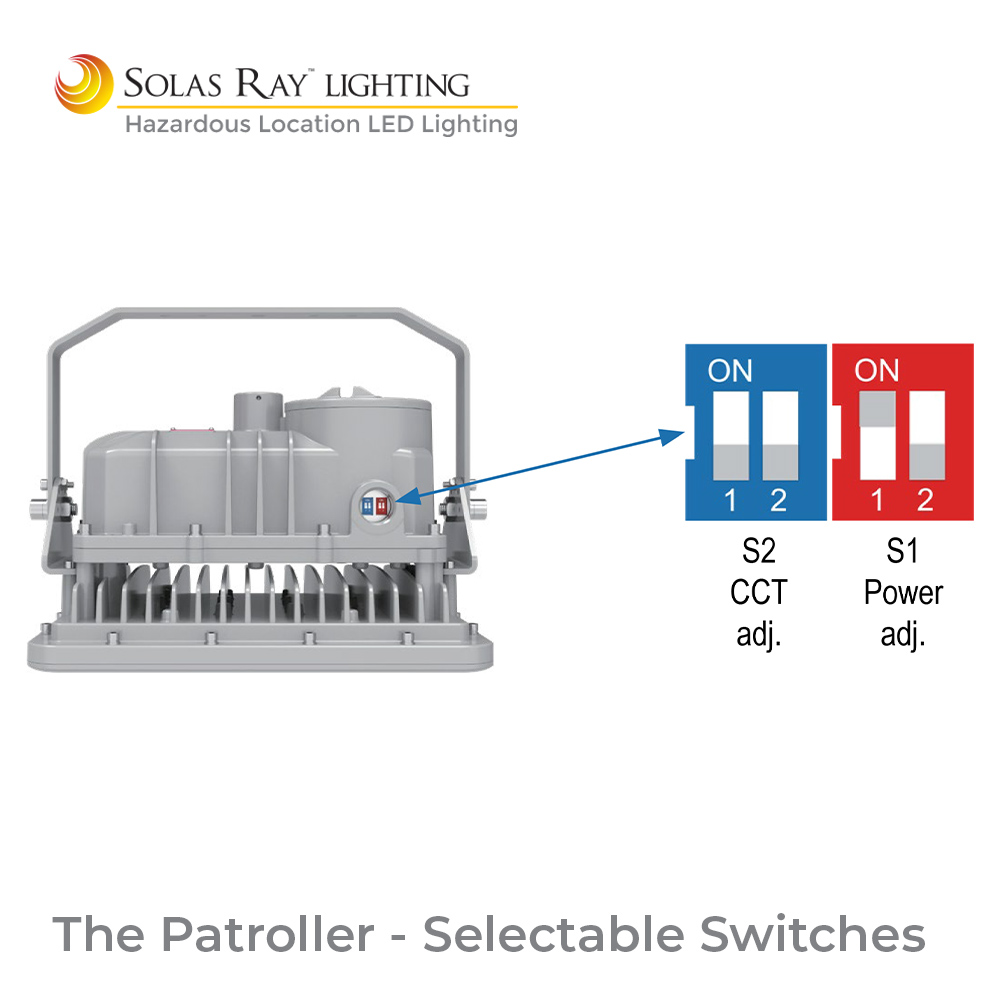

• Conveniently set color temperature and wattage with DIP switches.
• Stainless steel hardware.
• 500 hours salt spray test passed.

DOWNLOADS

SPECIFICATIONS

Voltage	120-277VAC / 277-480VAC
Wattage	(40W / 60W / 80W) Selectable
	(120W /150W / 200W) Selectable
	(200W /250W / 300W) Selectable
Color Temp	4000 / 5000 / 6500 Kelvin
Housing	Die-cast aluminum
Color	Gray
Lens	Tempered glass / polycarbonate
Efficacy	160-175 Lm/W
Power Factor	> 0.95
CRI	> 70
Protection	IP66 / IK08 / IK10*
Entry	3/4” NPT
Beam Angles	40° / 60° / 90° / 120° / Type II / Type III / Type V
Warranty	5 Year Limited Warranty

LUMENS

40W	60W	80W	120W	150W	200W	250W	300W
6,100	9,000	12,000	21,200	26,000	34,100	45,900	54,800

AMBIENT TEMPERATURE / T-RATING

Model	Ambient Temperature	T Rating

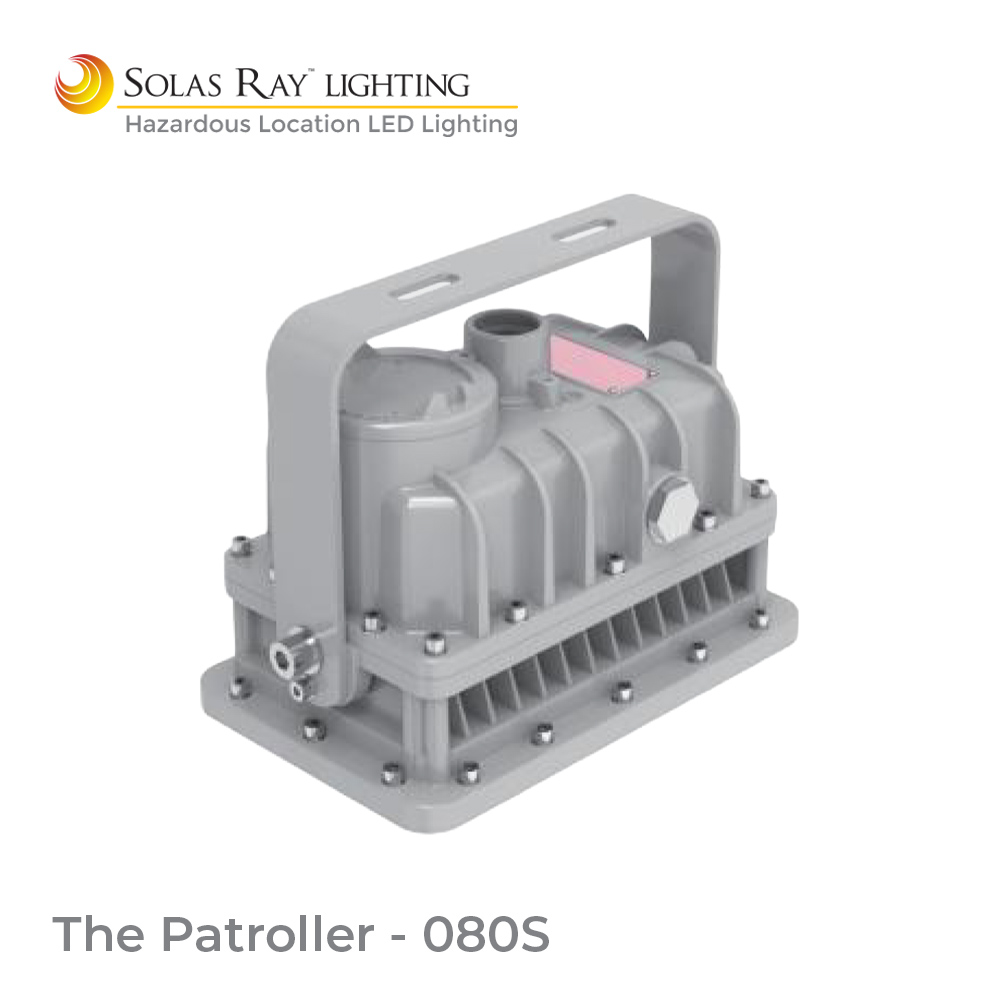

HJAS-080S	-40°C (-40°F) to 55°C (131°F)	T4A

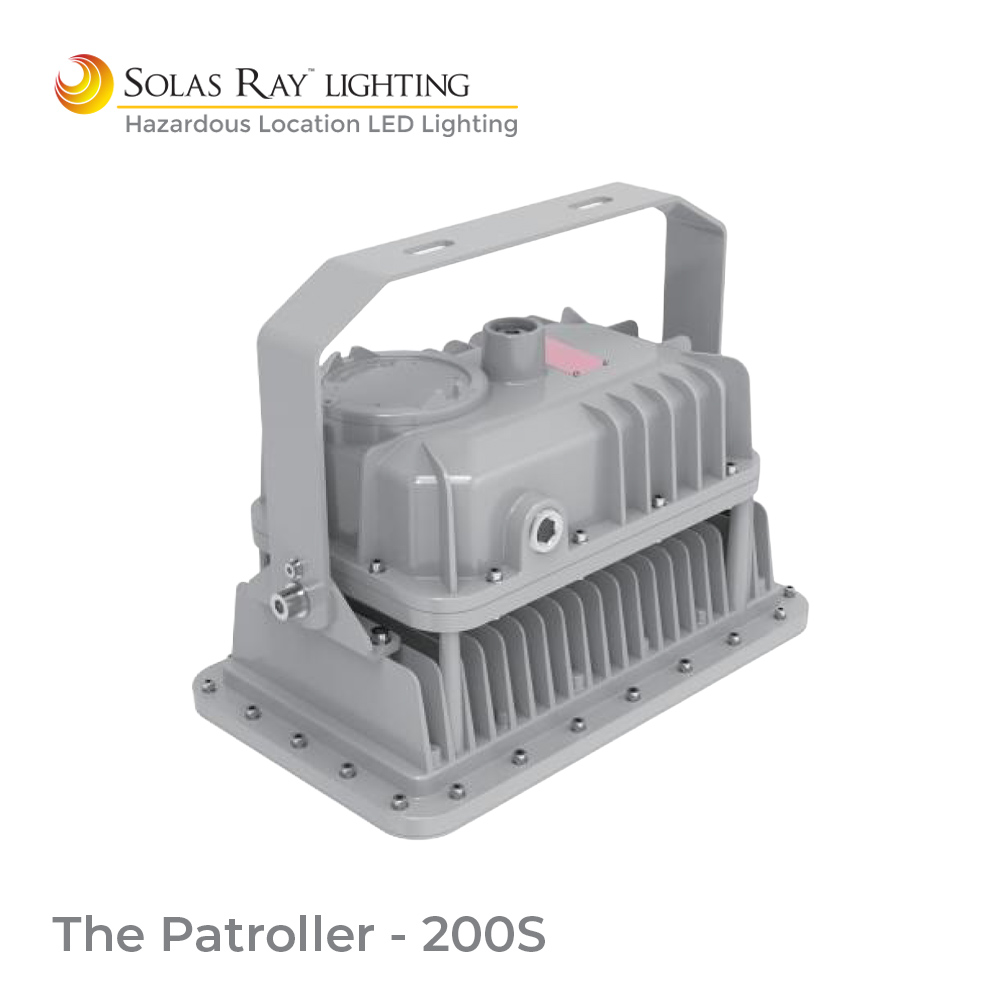

HJAS-200S	-40°C (-40°F) to 50°C (122°F)	T4A

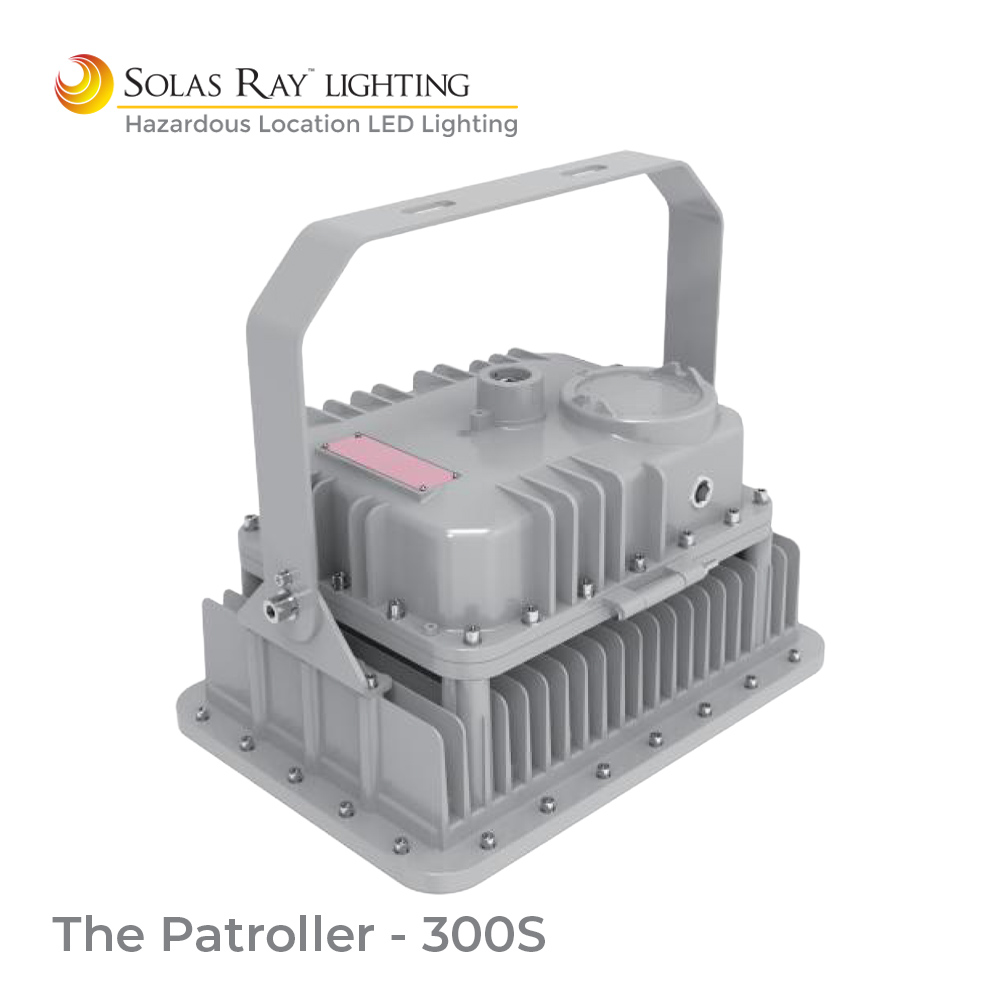

HJAS-300S	-40°C (-40°F) to 50°C (122°F)	T5
