RHE Series – The Extender™
Hazardous Location Remote Head
CERTIFICATIONS / RATINGS
UL STANDARDS
• UL 844 │ UL944
NEC and CEC
• Class I, Div 2 – Groups A, B, C, D
• NEMA 4X
• See Specification Sheet For Complete Listing
KEY FEATURES AND BENEFITS

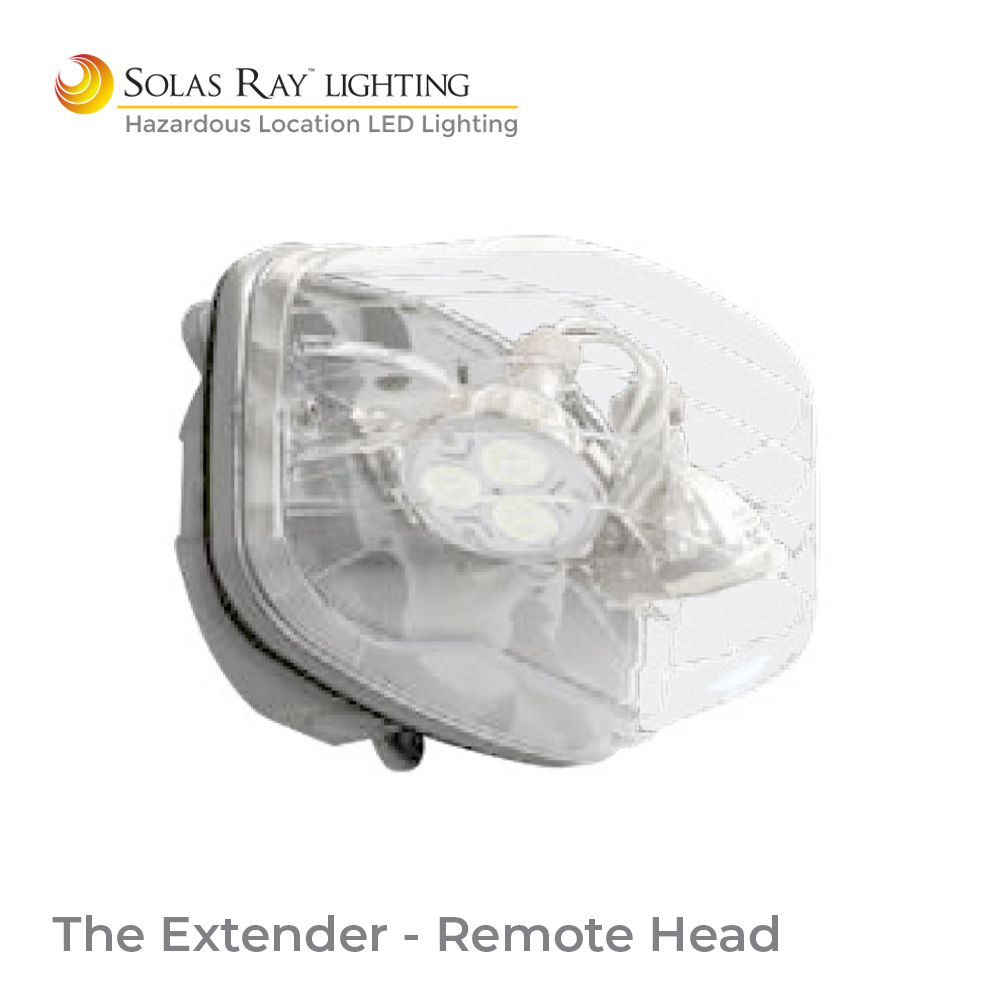

• Hazardous location emergency remote lamp head.
• Available with single or double lamp heads.
• Die-cast aluminum back plate with gasket.
• Vandal-resistant UV stabilized polycarbonate lamp cover.
• Tamper-proof screws.
• Universal J-Box mounting / 1/2” NPT conduit mounting.
• NEMA 4X rated – appropriate for outdoor / wet location use.
WORKS WITH THE FOLLOWING SOLAS RAY FIXTURES

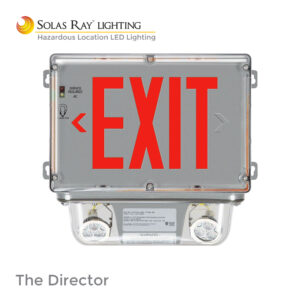

 HEL Series – The Director |

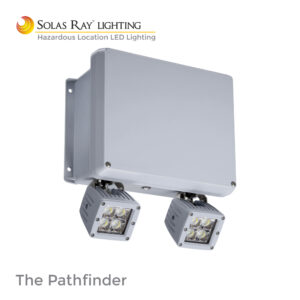

 PTL Series – The Pathfinder |

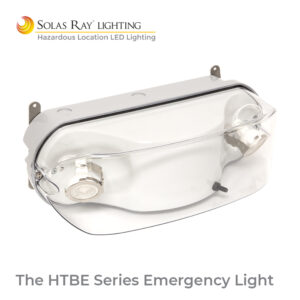

 HTBE Series – Emergency Light |
DOWNLOADS
SPECIFICATIONS
| Voltage | 6V / 12V / 24V |
| Wattage | 4W / 5W / 6W |
| Color | Gray (Standard) / Black |
| Lens | Polycarbonate |
| Ambient Temperature | -40°C (-40°F) to 40°C (104°F) |
| Warranty | 5 Year Limited Warranty |
LUMENS
| Lamp Type | Volts | Watts | Lumens | T-Rating |
| LA | 6V | 4W | 200 | T4A |
| LB | 6V | 5W | 415 | T4A |
| LG | 12V | 4W | 220 | T5 |
| LI | 12V | 5W | 340 | T4A |
| LJ | 12V | 6W | 540 | T4 |
| LL | 24V | 4W | 220 | T5 |
REMOTE HEAD SELECTION / CONFIGURATION
1. Remote head MUST be the same voltage as the fixture battery.
2. Total watts of fixture + remote heads MUST not exceed battery capacity.

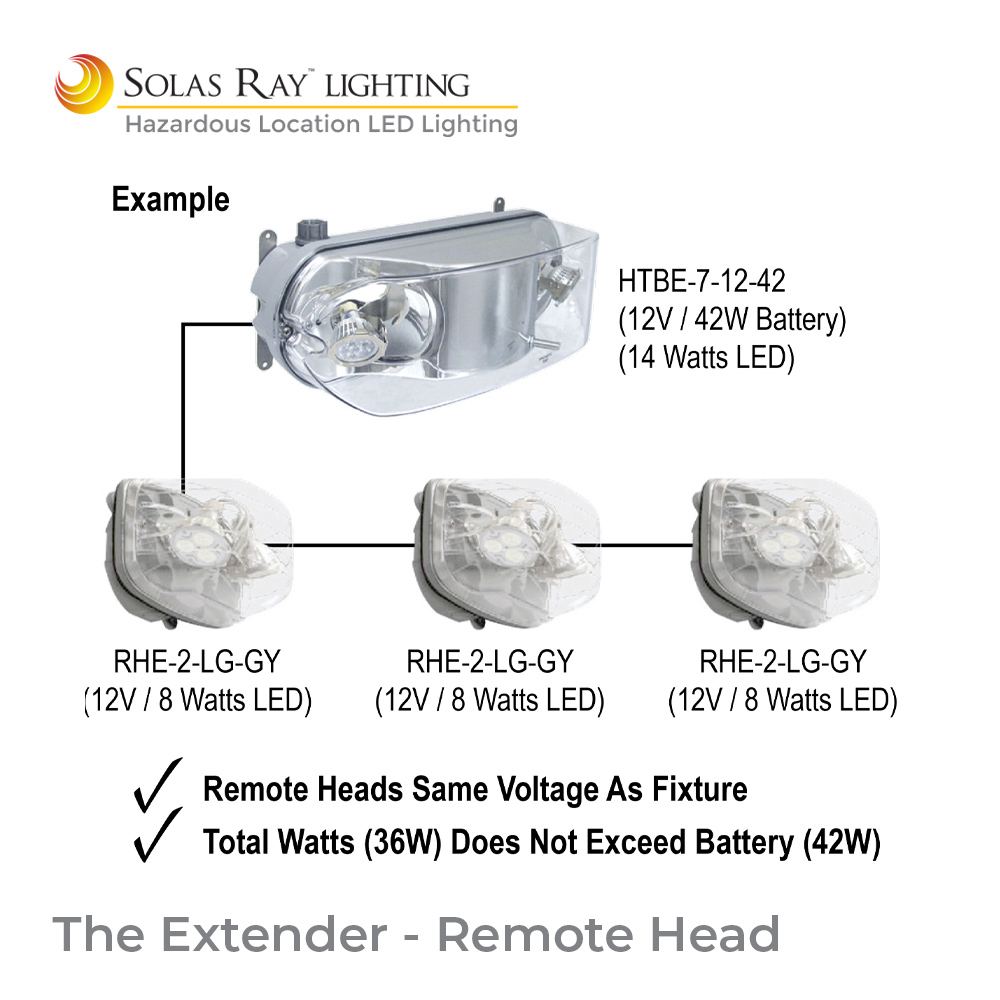

Example: The HTBE-7-U-12-42 Emergency Light is a 12V fixture with 14W of lights onboard and a battery with 42W of capacity @ 90min runtime. Therefore, the remote head capacity is:
Remote Head Voltage Must Be: 12V
Total remote head wattage must not exceed: 28W
(42W battery – 14W fixture)
Recommendation: While the rules above define the maximum allowable wattage of attached remote heads, it is a good idea to not exceed 80% of the battery wattage in the interest of longer battery run-times ensuring a 90 minute minimum run time as the batteries age.
See specification sheet for product ordering selection, mounting options, weights and dimensions.
