CERTIFICATIONS / RATINGS

UL STANDARDS
• UL 844 – Hazardous Locations │ UL924 | UL1604

NEC and CEC
• Class I, Div 2 – Groups A,B,C, D

• CSA
• IP66
• NFPA
• NEMA 4X
• See Specification Sheet For Complete Listing

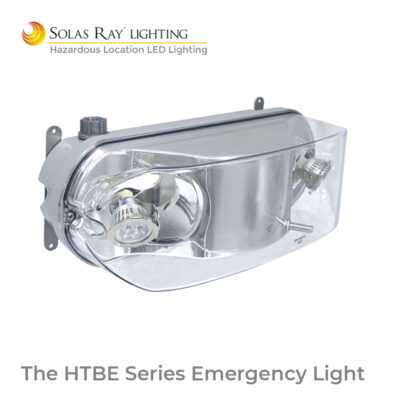

KEY FEATURES AND BENEFITS

• Provides a minimum of 90 minutes of emergency light through (2) LED lamps.
• Nickel-Cadmium (NC) or Sealed Lead-Acid (SLA) battery options.
• 6 or 12 volt battery options.
• Push-to-test button for easy battery testing (auto test option available).
• Water and corrosion-resistant housing with fully gasketed cover.
• Vented battery compartment with breather vent designed to permit exhaust of battery gases without admitting external moisture or corrosives.
• Remote heads available (12 volt battery required).
– Remote heads are Class I, Div 2, Groups A, B, C, D rated.
– Single 5w LED lamp or dual 5w LED lamps.
– Universal J-box mounting.
– -40°C (-40°R) to 40°C (104°F) ambient temperature rated.

FOR COMPLETE LIST OF REMOTE HEAD OPTIONS, SEE The Extender – RHE Series

DOWNLOADS

SPECIFICATIONS

LUMENS (EACH LAMP)

See specification sheet for product ordering selection, mounting options, weights and dimensions.
