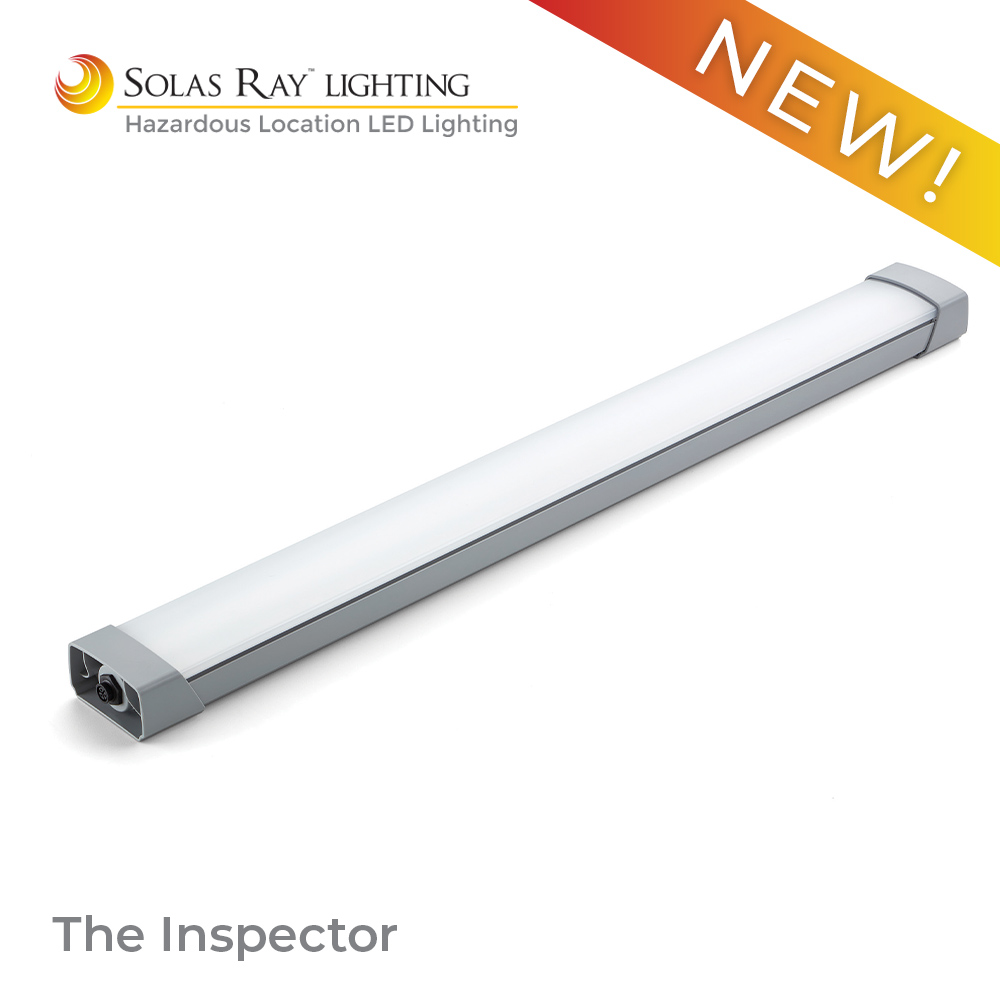

RPB Series – The Inspector™

Non-metallic HazLoc linear ideal for paint booth/inspection area retrofit.

CERTIFICATIONS / RATINGS

UL STANDARDS
• UL 844 – Hazardous Locations

NEC and CEC
• Class I, Div 2 – Groups A, B, C, D
• Class II, Div 2 – Groups F, G

• CSA C22.2 No. 137.0
• IK10

KEY FEATURES AND BENEFITS

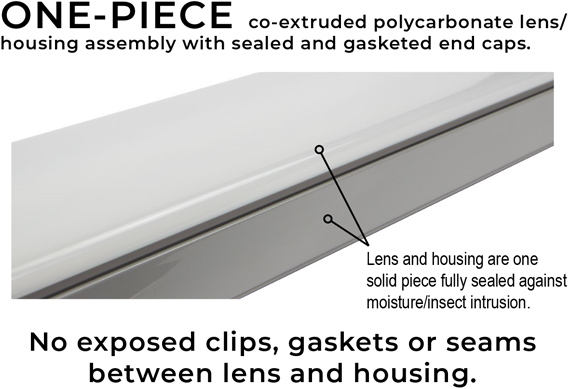

• Linear, non-metallic, hazardous location LED lighting solution.
• Ideal replacement/retro-fit fixture for paint booths and inspection applications.
• Wet location rated.
• CRI 95 for outstanding light quality and accurate colors – close to spectrum of natural light.
• 42.2” length allows for easy retro-fit into 4’ fluorescent housings.
• Rugged IK10 rated fixture – withstands up to 11 lbs impact.

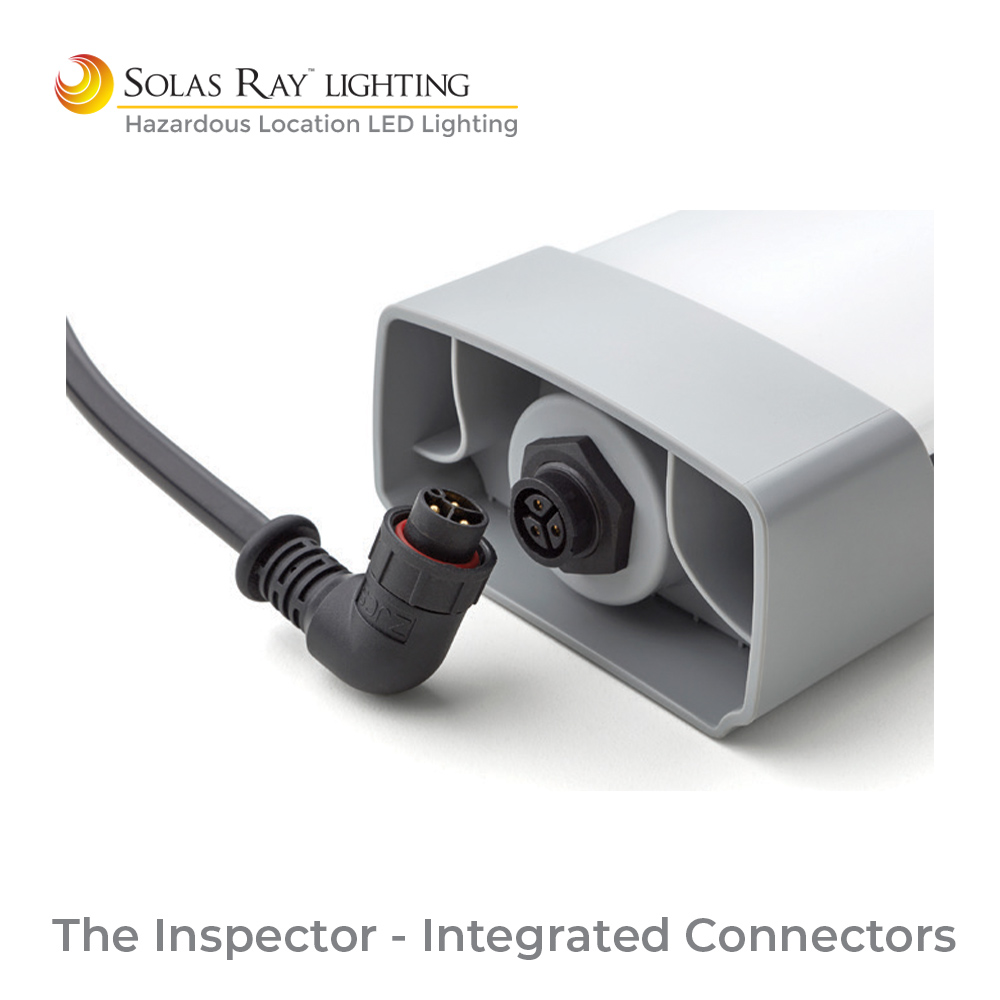

• Integrated connector cable makes installation simple and quick.

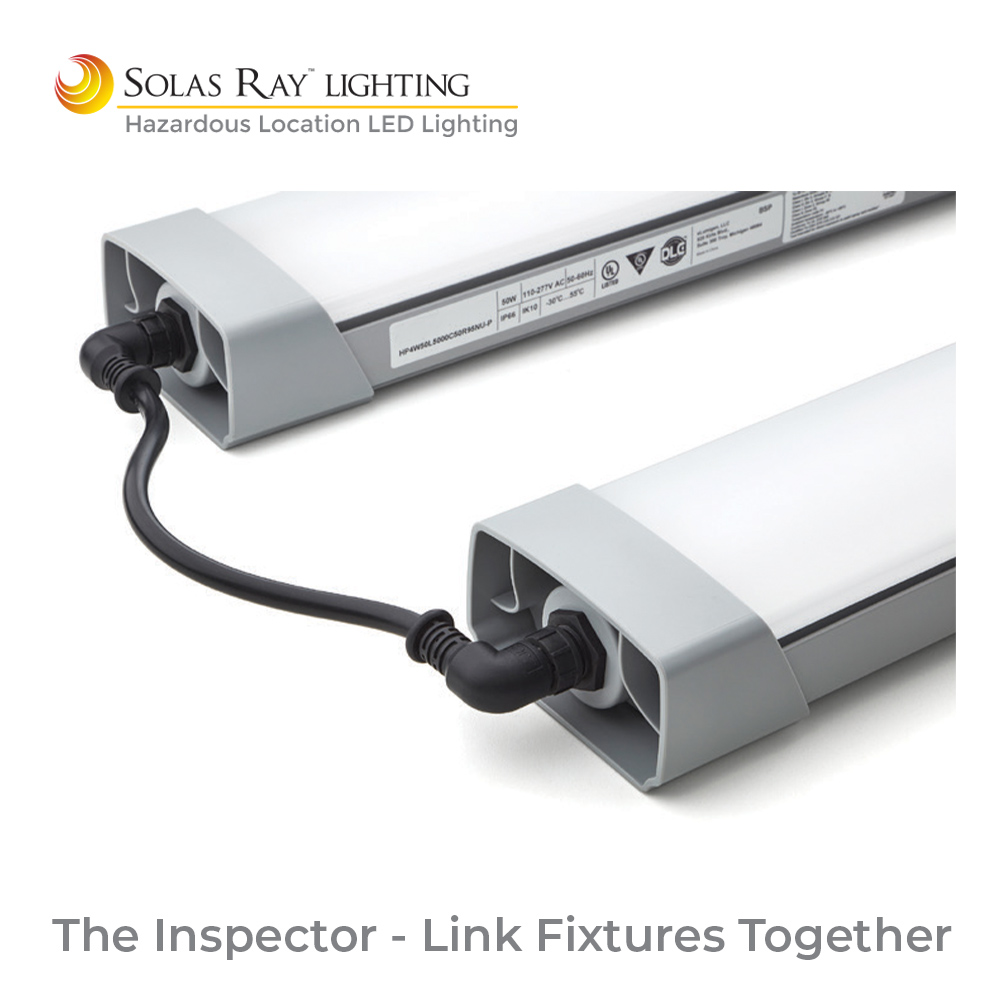

• 12”, 60” and 120” double-ended connector cables available to “daisy chain” fixtures together.
• Low profile surface mount clips included for easy installation in tight spaces.

DOWNLOADS

SPECIFICATIONS

Voltage	110-277 VAC
Wattage	50W
Color Temp	5000 Kelvin
Housing	High heat polycarbonate
Color	Gray
Lens	Polycarbonate
Ambient Temperature	-30°C (-22°F) to 55°C (131°F)
T-Rating	T4
Lifetime	50,000 hrs L70
Efficacy	Up to 124 lm/W
CRI	95
Power Factor	0.9
Protection	IP66 / IK10
Warranty	5 Year Limited Warranty
