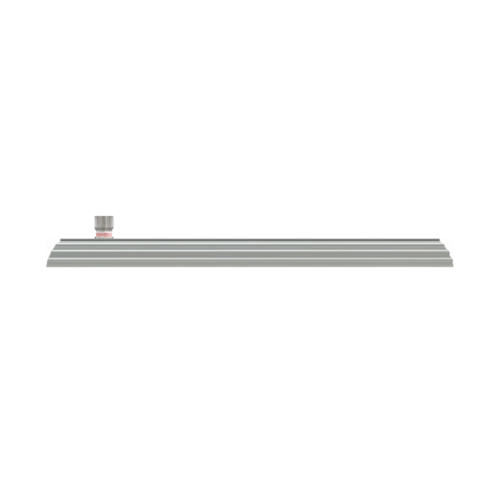

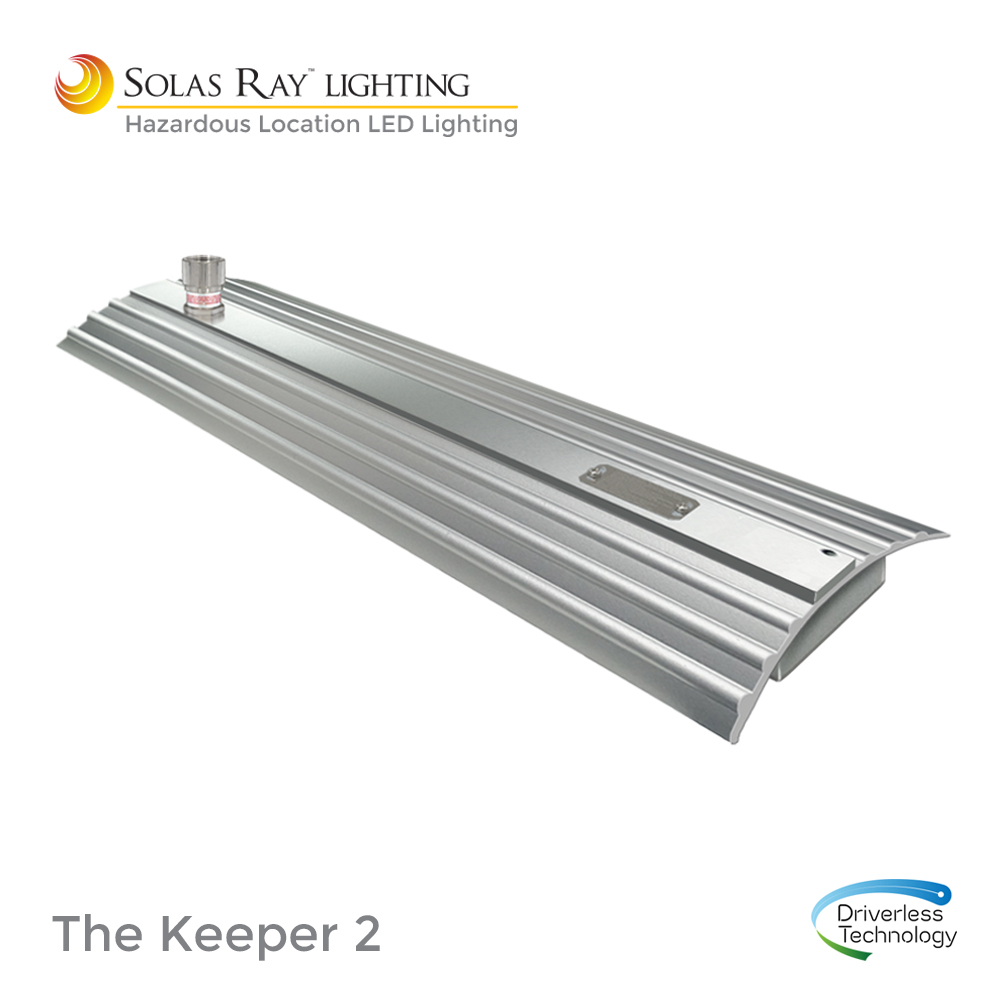

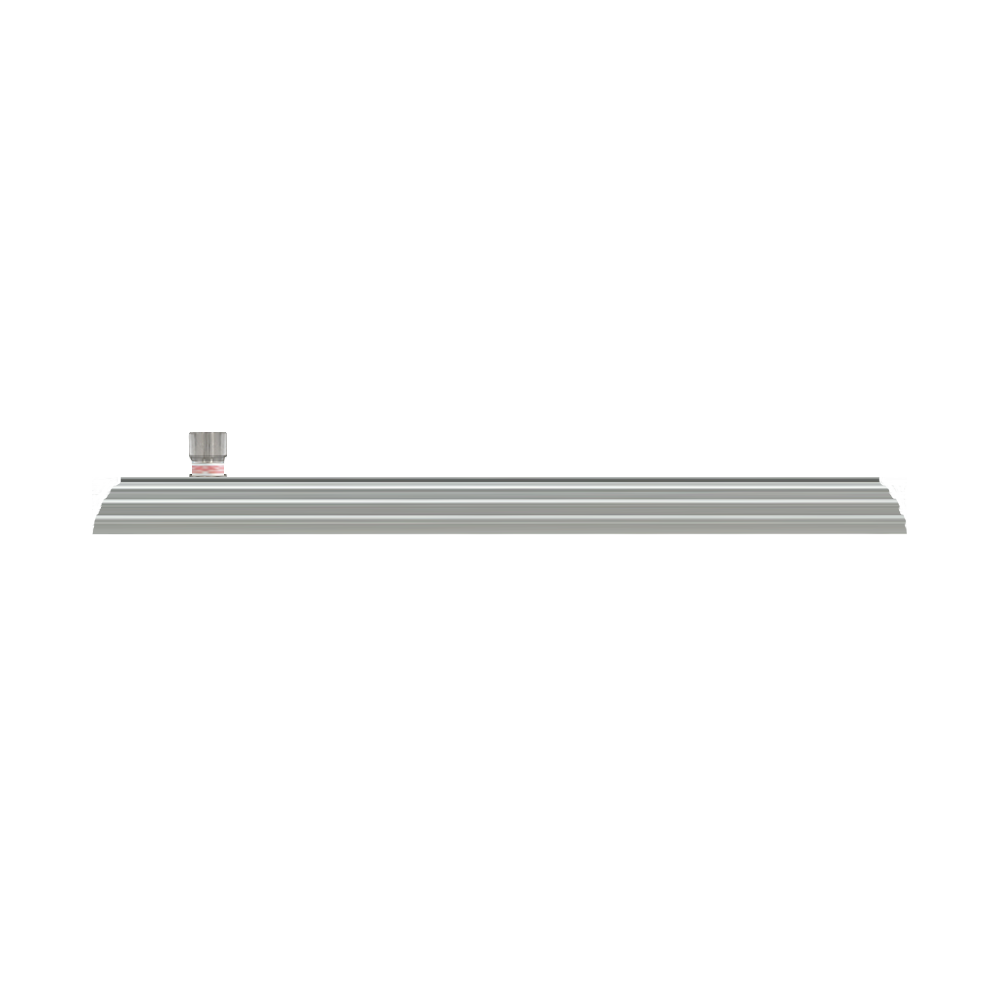

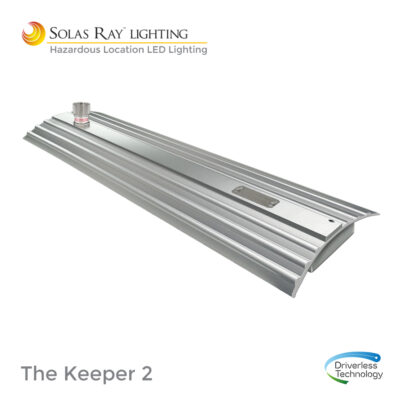

HTL2 Series – The Keeper 2

CERTIFICATIONS / RATINGS

UL STANDARDS
• UL 844 – Hazardous Locations │ UL1598 – Luminaires | UL 8750

NEC and CEC (2′ 40w / 2′ 60w / 4′ 40w / 4′ 80w /4′ 120w models)
• Class I Div 2 – Groups A, B, C, D
• Class II Div 2 – Groups F, G
• Class III

NEC and CEC (2′ 120w / 2′ 150w / 4′ 250w / 4′ 300w models)
• Class II Div 2 – Groups A, B, C, D

• CSA C22.2 No. 137-18
• CSA C22.2 No. 250.0
• CSA C22.2 No. 250.13
• IP67
• NEMA 6
• ROHS Compliant
• See Specification Sheet For Complete Listing

KEY FEATURES AND BENEFITS

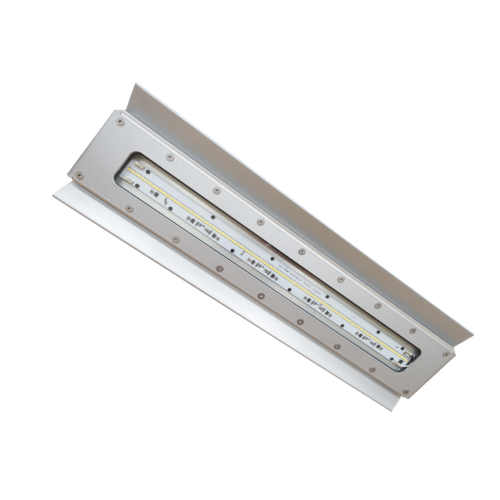

• SMD – driver on board LED technology for enhanced reliability and thermal resistance.
• Crush resistant with high impact resistance.
• Vibration / anti-resonance design.
• Marine grade housing / salt water spray resistant.
• Atmospheric pressure tolerance up to 32.8 ft (10 m) depth.
• Factory installed stainless steel cable gland included
standard. Precision machined and torque tested.
• 2’ and 4’ lengths available

DOWNLOADS

SPECIFICATIONS

Voltage	120vAC / 277vAC / 480vAC(80w model only)
Housing	Coated copper free aluminum alloy
Color	Gray
Lens	Tempered glass
Wattage	40w / 60w / 80w / 120w / 150w / 240w / 300w
Lifetime	60,000 hrs L70
CRI	≥ 80 (3000K) / ≥70 (5000K/6500K)
Beam Angles	X-116° / Y-114°
Power Factor	cos ≥ 0.9, cos ≥ 0.87 (480vAC)
Color Temp	3000 / 5000 / 6000 Kelvin
Weight	2’ – 12.1 lb (without mount) 4’ – 29.3 lb (without mount)
Protection	IP67 / NEMA 6
Warranty	5 Year Limited Warranty
