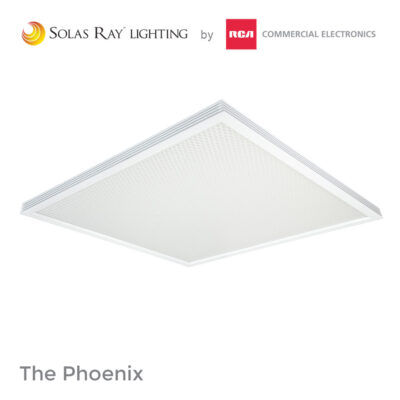

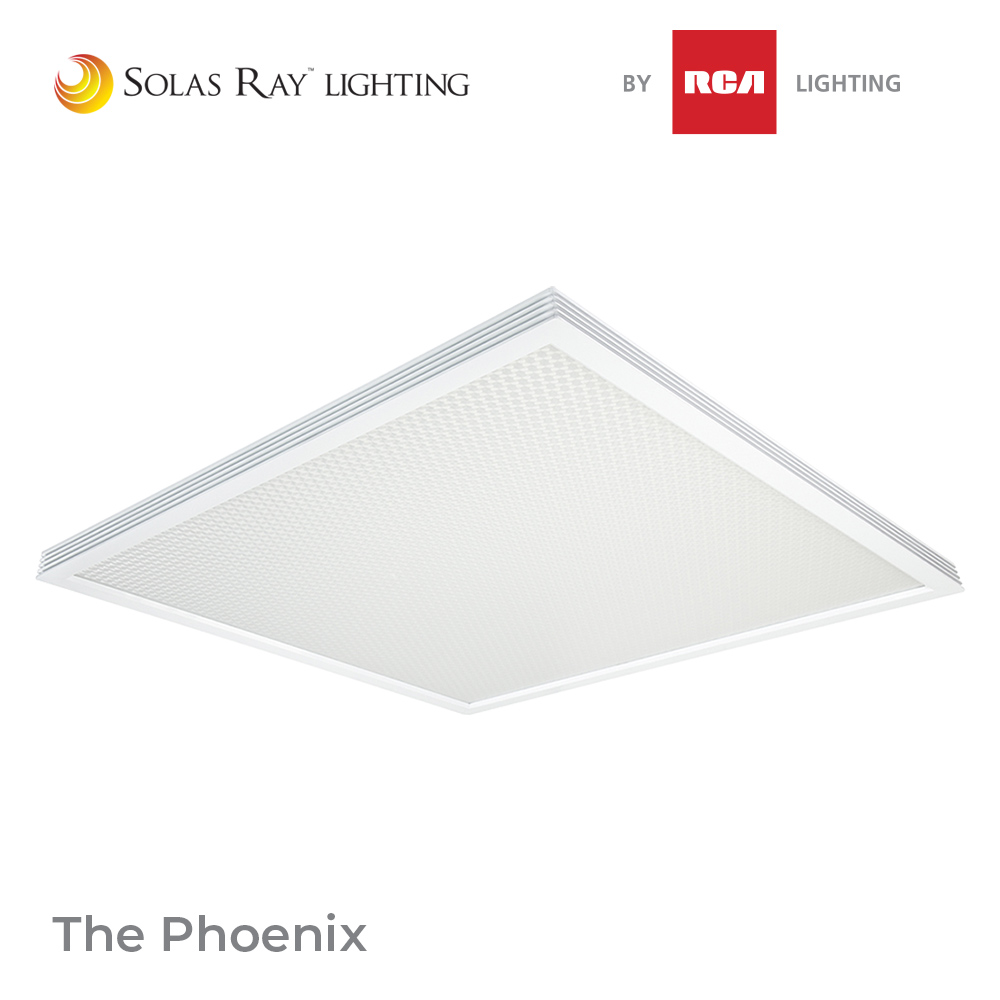

PHL Series – The Phoenix™
High Output 2×2 Flat Panel – 19,500 Lumens!
Perfect for high recessed ceilings like car dealerships, multi-purpose rooms, lobbies and more.
CERTIFICATIONS / RATINGS
• ETL Listed
• UL 1598 Certified
• CSA C22.2 No. 250.0
• RoHS Compliant
• IP20
• See Specification Sheet For Complete Listing
KEY FEATURES AND BENEFITS
• High 19,500 lumen output is idea for high ceiling heights.
• Robust integrated heat sink specifically designed to handle high lumen output.
• PMMA diffuser with precision pattern has a unified glare rating under 15.
• Edge lit fixture interacts with diffuser to evenly distribute light.

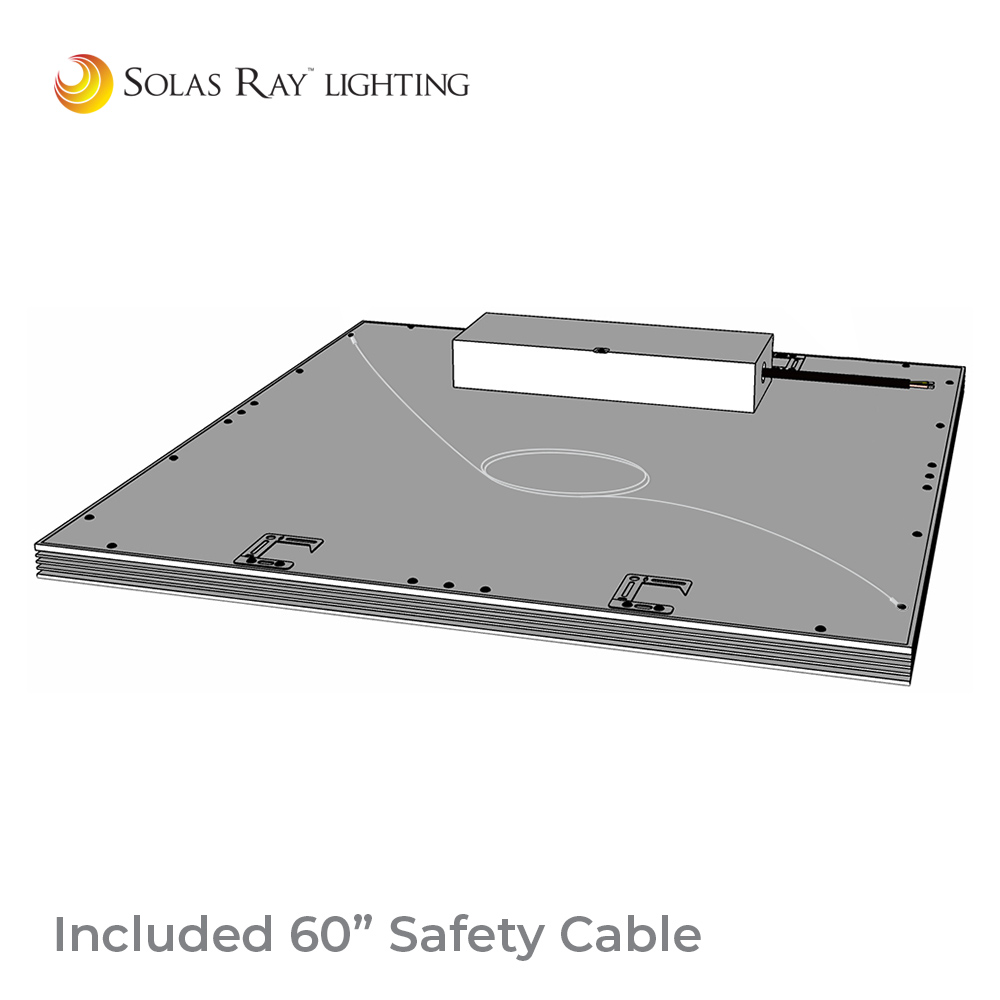

• Earthquake hooks and safety cable are included and factory installed.

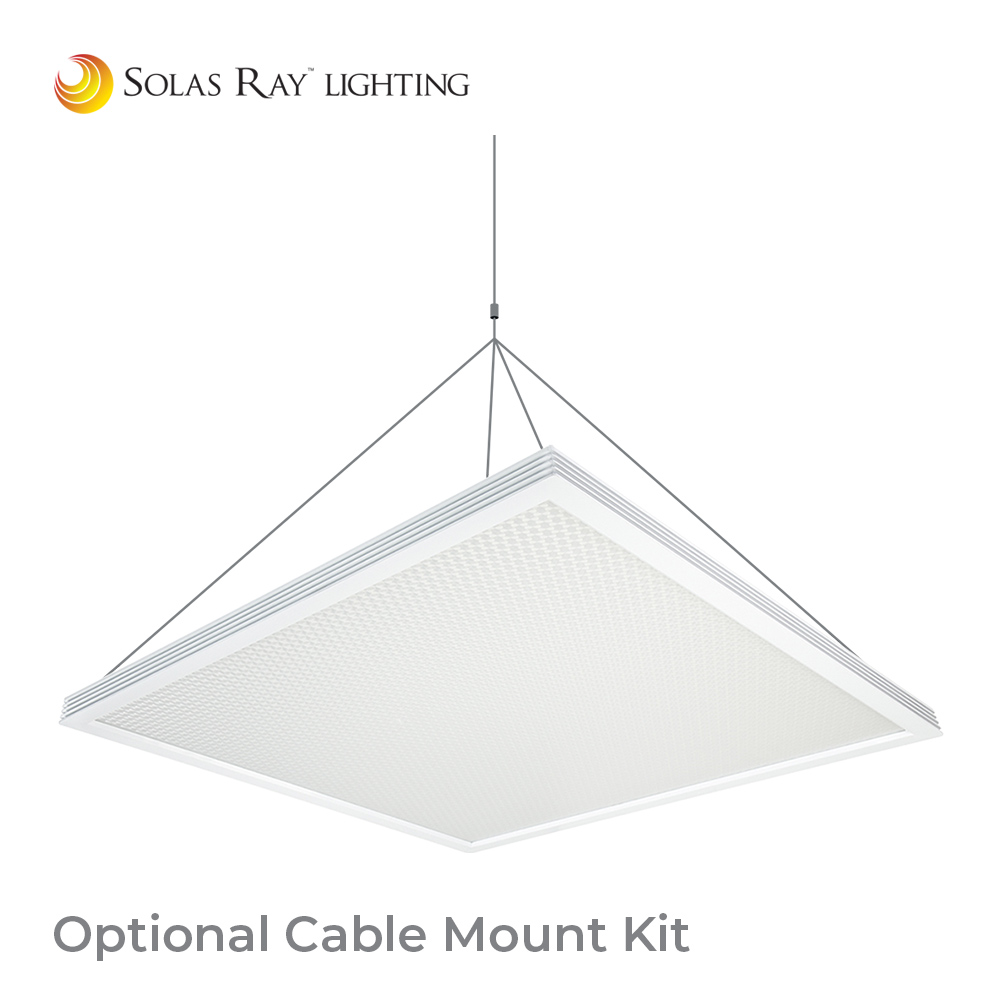

• Performs as a lay-in panel or can be cable-hung.
• Optional emergency battery backup.
• 0-10V dimming driver standard.
• Five year limited warranty
DOWNLOADS
SPECIFICATIONS
| Lumens | 19,500 lm |
| Voltage | 120-277 VAC |
| Wattage | 150W |
| Color Temp | 5000K std. / 4000K optional |
| Housing | Aluminum alloy |
| Color | White |
| Lens | PMMA anti-glare |
| Lifetime | 50,000 hrs L70 |
| CRI | 80+ |
| Beam Angle | 120° |
| Efficacy | 130 lm/W |
| Ambient Temperature | -25°C (-13°F) to 40°C (104°F) |
| Warranty | 5 Year Limited Warranty |
See specification sheet for product ordering selection, mounting options, weights and dimensions.
