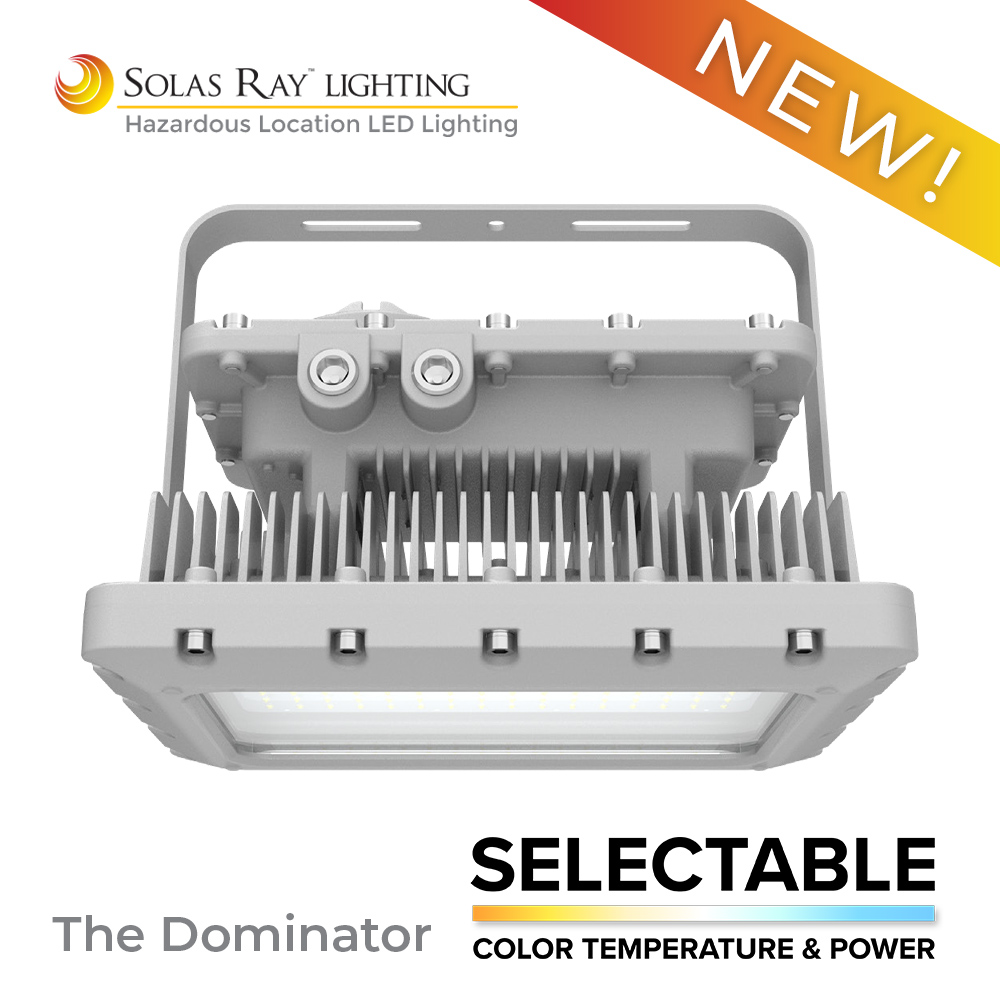

HJDS Series – The Dominator™
Hazardous Location LED Light
CERTIFICATIONS / RATINGS
UL STANDARDS
• UL 844 – Hazardous Locations | UL 1598 | UL 1598A
NEC and CEC
• Class I, Div 1 – Groups B, C, D
• Class I, Div 2 – Groups A, B, C, D
• Class II, Div 1 – Groups E, F, G
• Class II, Div 2 – Groups F, G
• Class III
• IP66
• IK10
• See Specification Sheet For Complete Listing
KEY FEATURES AND BENEFITS
• Hazardous Location lighting with selectable CCT and power.
• Ideal choice for high moisture, dirty, corrosive, windy, snowy, high temperature or high vibration environments (Vibration 3G certified).
• Round access cover for easy and convenient wiring.
• Marine rated powder coated finish for high corrosion resistance.
• Emergency battery available for larger model – 8W.
• IK10 impact rated.

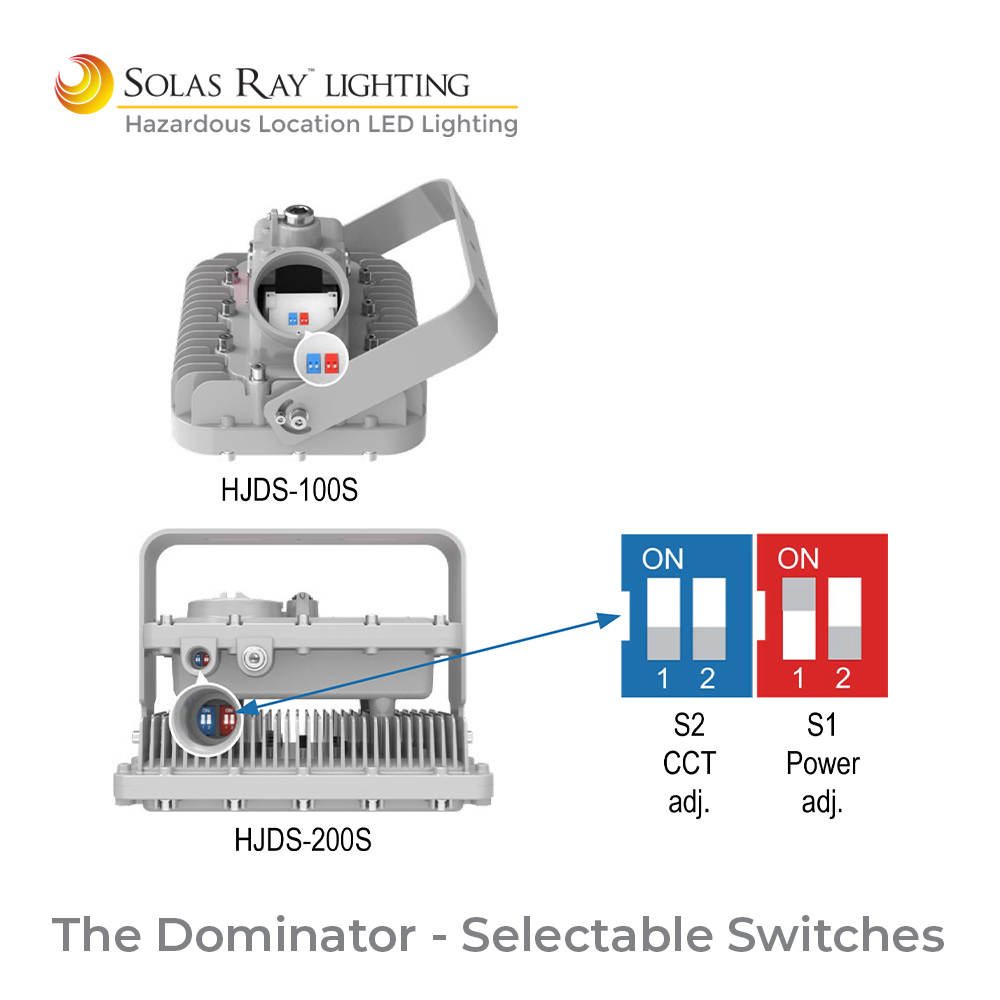

• Conveniently set color temperature and wattage with DIP switches.
• 1-10V Dimming.
• 500 hours salt spray test passed.
DOWNLOADS
SPECIFICATIONS
| Voltage | 120-277VAC / 277-480VAC |
| Wattage | (60W / 80W / 100W) (Selectable) |
| (120W /150W / 200W (Selectable) | |
| Color Temp | 4000 / 5000 / 6500 Kelvin (Selectable) |
| Housing | Die-cast aluminum |
| Color | Gray |
| Lens | Tempered glass / polycarbonate |
| Efficacy | 140-160 Lm/W |
| Power Factor | > 0.95 |
| CRI | > 70 |
| Beam Angles | 40° / 60° / 90° / 120° / Type II / Type III / Type V |
| Protection | IP66 / IK10 |
| Entry | 3/4” NPT (X3) |
| Warranty | 5 Year Limited Warranty |
AMBIENT TEMPERATURE / T-RATING
| Model | Class/Div | Ambient Temperature | T-Rating |

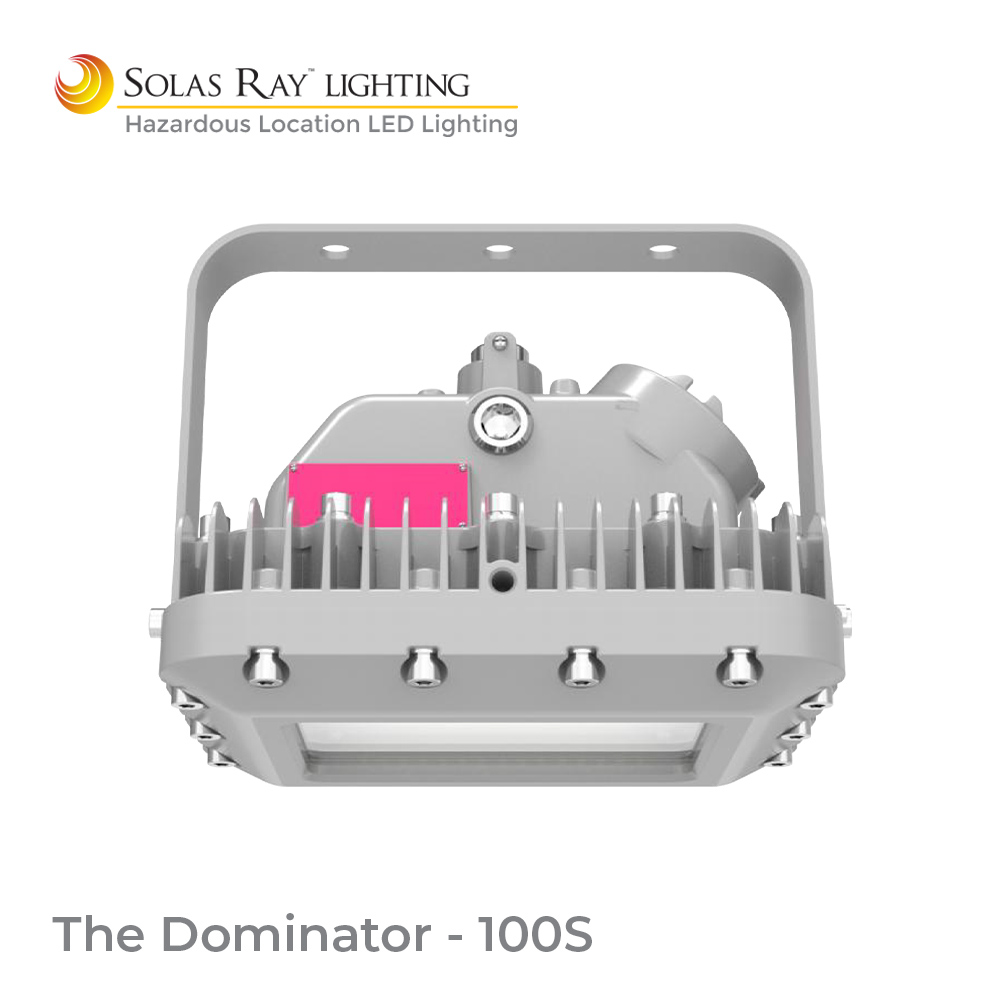

| HJDS-100S | CID1 / CID2 | -40°C (-40°F) to 55°C (131°F) | T4A |
| CIID1 / CIID2 / CIII | -40°C (-40°F) to 55°C (131°F) | T5 | |
| HJDS-200S | CID1 / CID2 | -40°C (-40°F) to 50°C (122°F) | T5 |
| CIID1 / CIID2 / CIII | -40°C (-40°F) to 40°C (104°F) | T5 |
LUMENS
| 60W | 80W | 100W | 120W | 150W | 200W |
| 8,000 | 10,400 | 12,800 | 19,300 | 24,000 | 31,600 |
See specification sheet for product ordering selection, mounting options, weights and dimensions.
