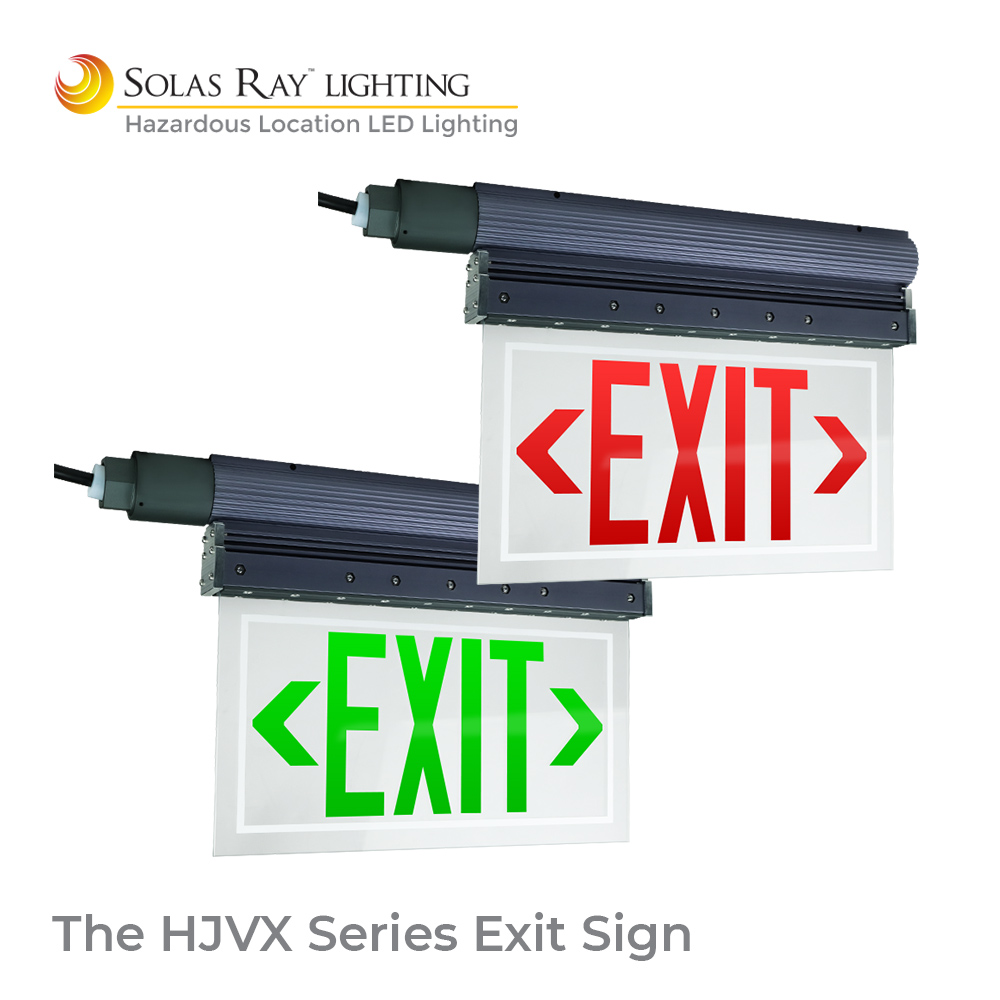

HJVX Series – Emergency Exit Sign
CERTIFICATIONS / RATINGS
UL STANDARDS
• UL 924
NEC and CEC
• Class I Div 2 – Groups A, B, C, D
• Class II Div 1 – Groups E, F, G
• Class II Div2 – Groups F, G
• Class III
• IP66
• Energy API
• IEC / IECEs
• See Specification Sheet For Complete Listing
KEY FEATURES AND BENEFITS
• Compact and heavy duty emergency sign with battery backup.
• Economical single sided design (lettering is reversed on back side).
• 3-hour emergency operation.

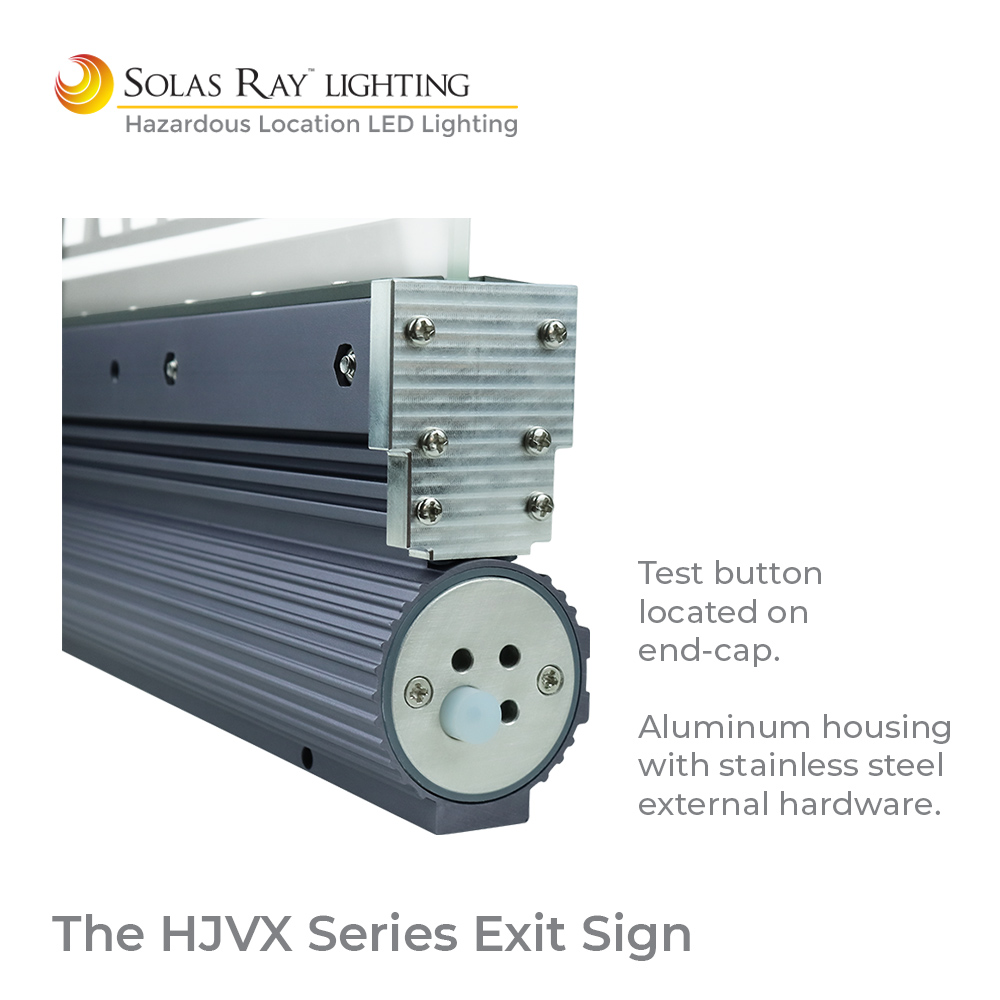

• Aluminum housing with tempered glass exit sign.
• Stainless steel exposed fasteners.
• Available with red or green lettering.
• IP66 rating.
• Integrated junction box for driver and emergency battery.
• Low energy consumption.
• High vibration and impact resistance.
DOWNLOADS
SPECIFICATIONS
| Voltage | 100-277 VAC |
| Wattage | 5W |
| Sign Color | Red or Green |
| Housing | Aluminum |
| Sign | Tempered glass |
| Lifetime | 50,000 hrs |
| Ambient Temperature | -20°C(-4°F) to 60°C(140°F) |
| Protection | IP66 |
| Battery Runtime | 180 minutes |
| Warranty | 5 Year Limited Warranty |
See specification sheet for product ordering selection, mounting options, weights and dimensions.
