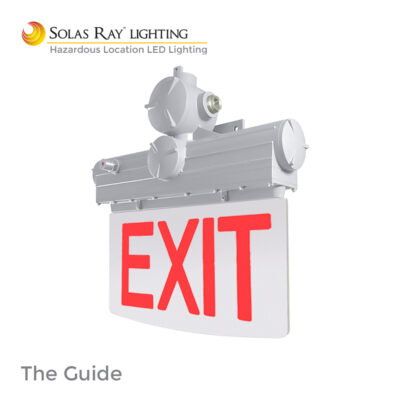

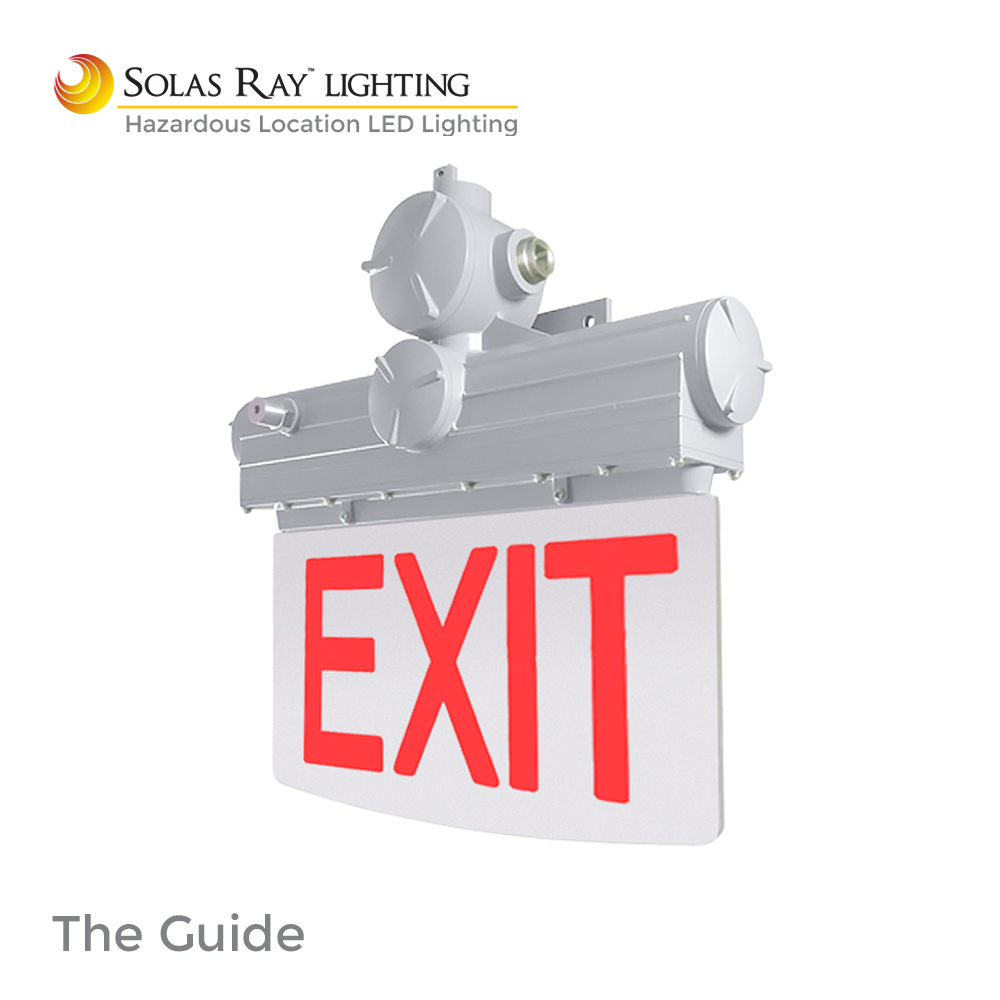

HJJES Series – The Guide HazLoc Exit Sign
CERTIFICATIONS / RATINGS
UL STANDARDS
• UL844 | UL 924
NEC and CEC
• Class I, Div 1 – Groups B, C, D
• Class I, Div 2 – Groups A, B, C, D
• Class II, Div 1 – Groups E, F, G
• Class II, Div 2 – Groups F, G
• Class III
• UL Listed
• IP66
• CSA C22.2 No. 137-18
• UL 121201 / CSA No. 213
• See Specification Sheet For Complete Listing
KEY FEATURES AND BENEFITS
• 180 minute battery backup.
• High vibration / anti-resonance design.
• Ambient temperature capabilities -10˚C (14˚F) to 60˚C (140˚F).
• Corrosion proof – coated aluminum alloy (copper free) housing.
• Low wattage requirements of 3w and 5w..
• Paint/spray listed for use in paint or powder booths.
• Suitable for wet locations.
• Double or single sided exit sign.
• One-piece silicone gasket.
• Stanless steel hardware and mounting sling
DOWNLOADS
SPECIFICATIONS
| Voltage | 100-277vAC |
| Wattage | 3w / 5w |
| Housing | A356T6 aluminum with baked-on gray epoxy finish |
| Color | Gray with red letters |
| Sign Plate | Tempered glass |
| Lifetime | 50,000 hrs L70 |
| Ambient Temperature | -10°C (14°F) to 60°C (140°F) |
| Power Factor | > 0.98 |
| NPT | 3/4” |
| Warranty | 5 Year Limited Warranty |
See specification sheet for product ordering selection, mounting options, weights and dimensions.
