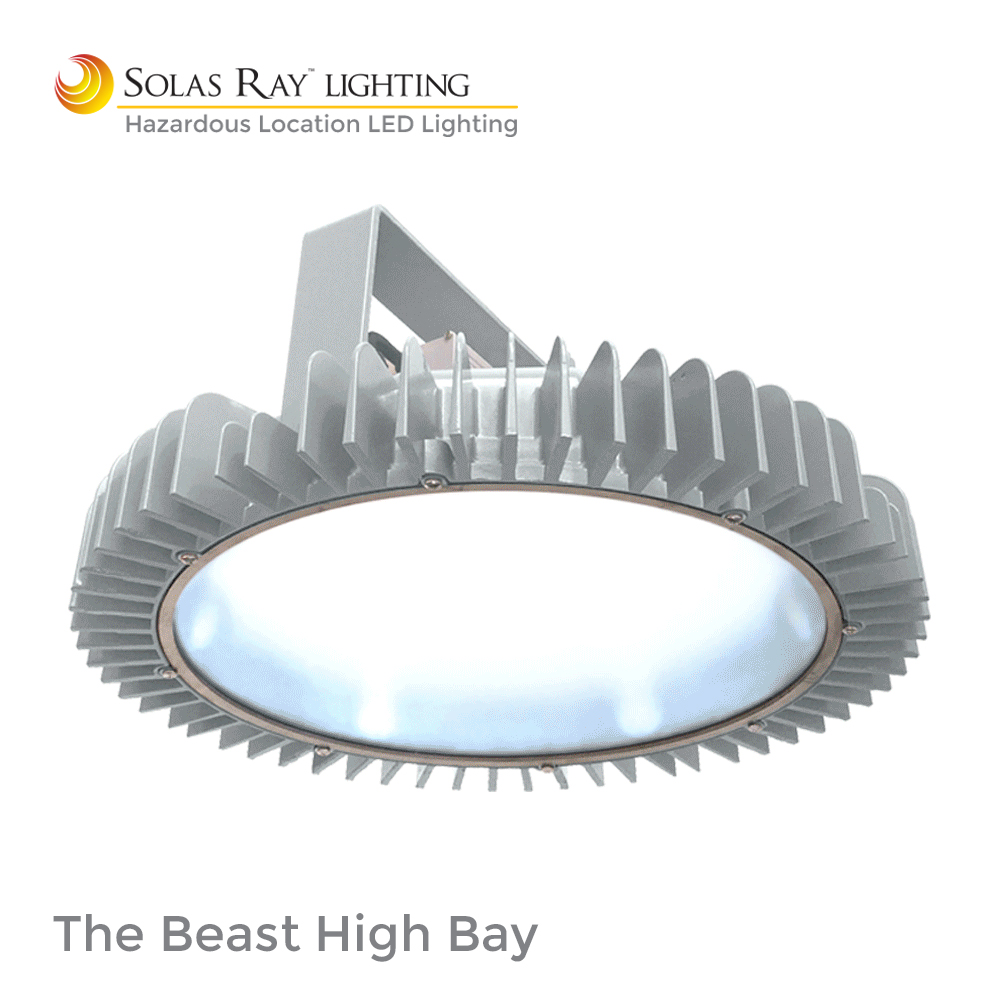

HH Series – The HazLoc Beast™
Hazardous Location LED High Bay Lighting
CERTIFICATIONS / RATINGS
UL STANDARDS
• UL 844 – Hazardous Locations | UL 1598
NEC and CEC
• Class I Div 2 – Groups A, B, C, D
• Class II Div 2 – Groups F, G
• ETL
• IP66
• DLC Listed
• CSA STD C22.2#250.0
• CSA STD C22.2#137
• See Specification Sheet For Complete Listing
KEY FEATURES AND BENEFITS
• 20” Diameter design delivers optimal light output to large surface areas.
• Ambient temperature capabilities: -40˚C to 65˚C (149˚F).
• Passive cooling radiator design for high temperature applications / locations.
• Corrosion proof – powder coated aluminum alloy housing.
• Gray nylon corrosion resistant powder coat.
• Angle mounted COB LEDs for high efficacy.
• Built-in 6kV DM (differential mode) and 10kV CM (common mode) surge protection.
• Proprietary silicone based potting compound used in driver for effective thermal conduction away from component.
DOWNLOADS
SPECIFICATIONS
| Voltage | 120-277vAC / 277-480vAC |
| Wattage | 49W / 104W / 144W / 175W / 219W / 260W / 328W |
| Color Temp | 5000 (Standard) / 4000 Kelvin |
| Housing | Die-cast aluminum |
| Color | Gray |
| Coating | Corrosion resistant nylon powder-coat |
| Lens | Flat tempered glass |
| Beam Angle | 150° |
| T-Rating | T5 |
| Protection | IP66 |
| Ambient Temperature | -40°C (-40°F) to 65°C (149°F) |
| NPT | 3/4” |
| Lifetime | 100,000 hrs L70 |
| CRI | > 70 |
| Power Factor | > 0.95 |
| Warranty | 5 Year Limited Warranty |
LUMENS
| 49w | 104w | 144w | 175w | 219w | 260w | 328w |
| 5,800 lm | 13,300 lm | 18,000 lm | 21,200 lm | 25,600 lm | 32,600 lm | 39,600 lm |

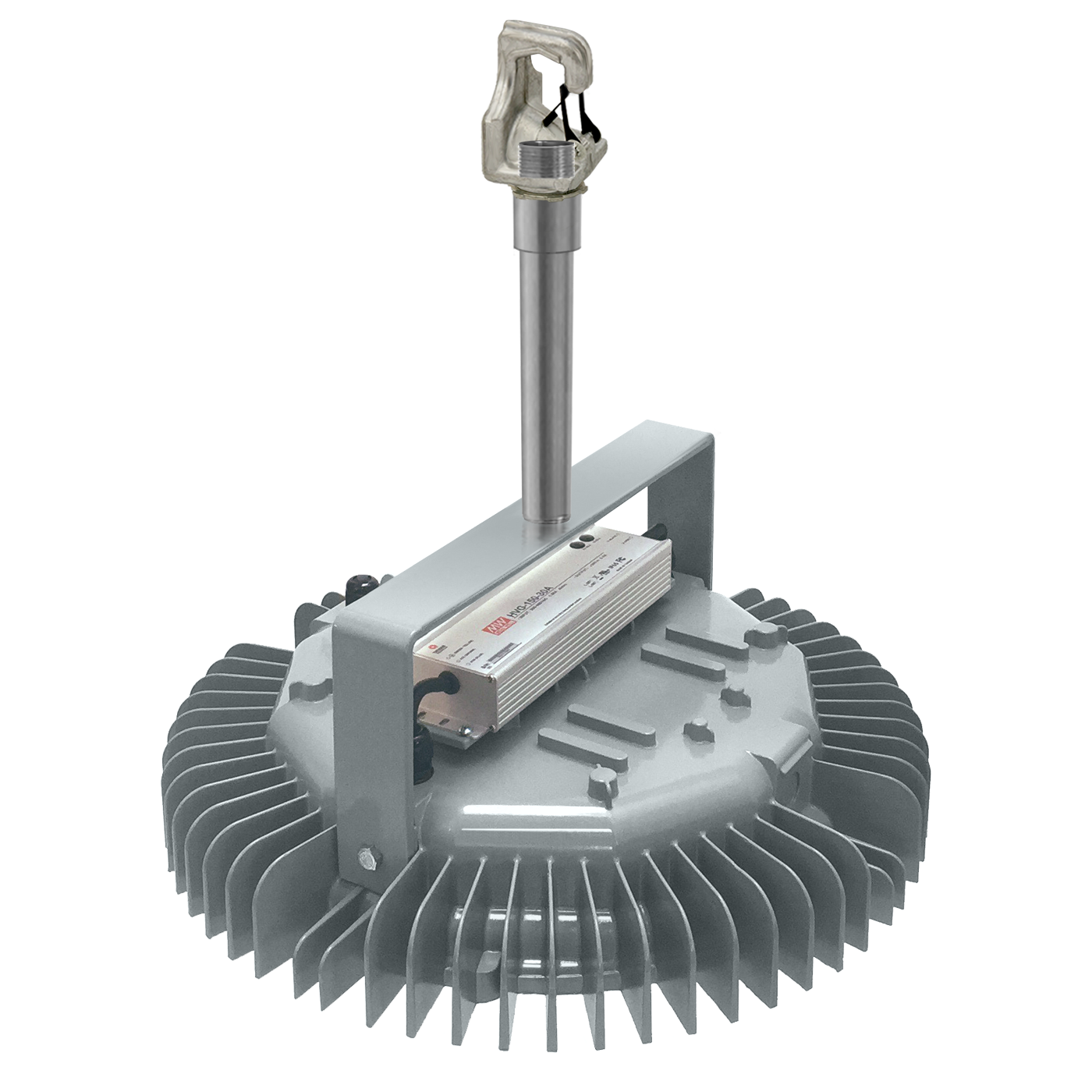

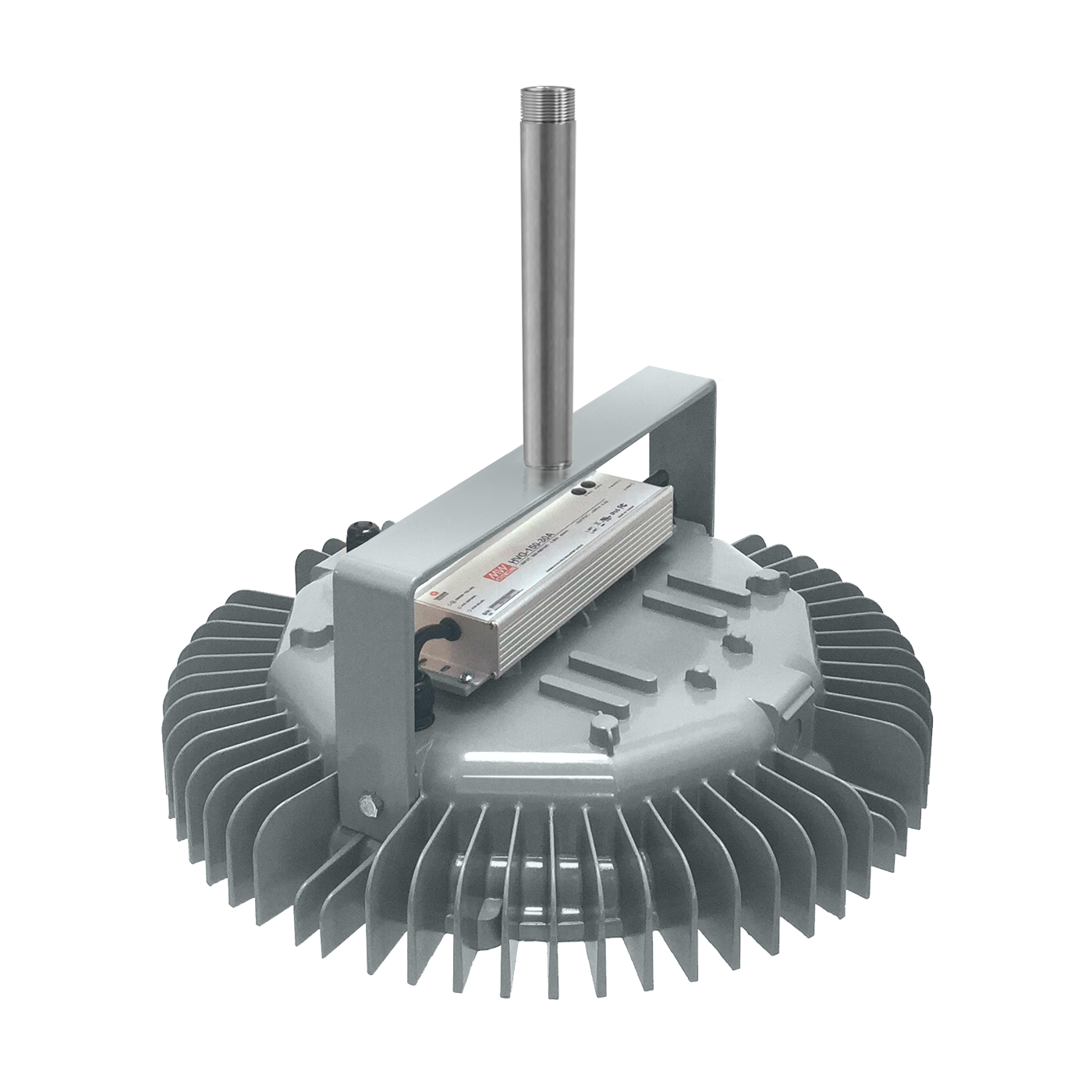

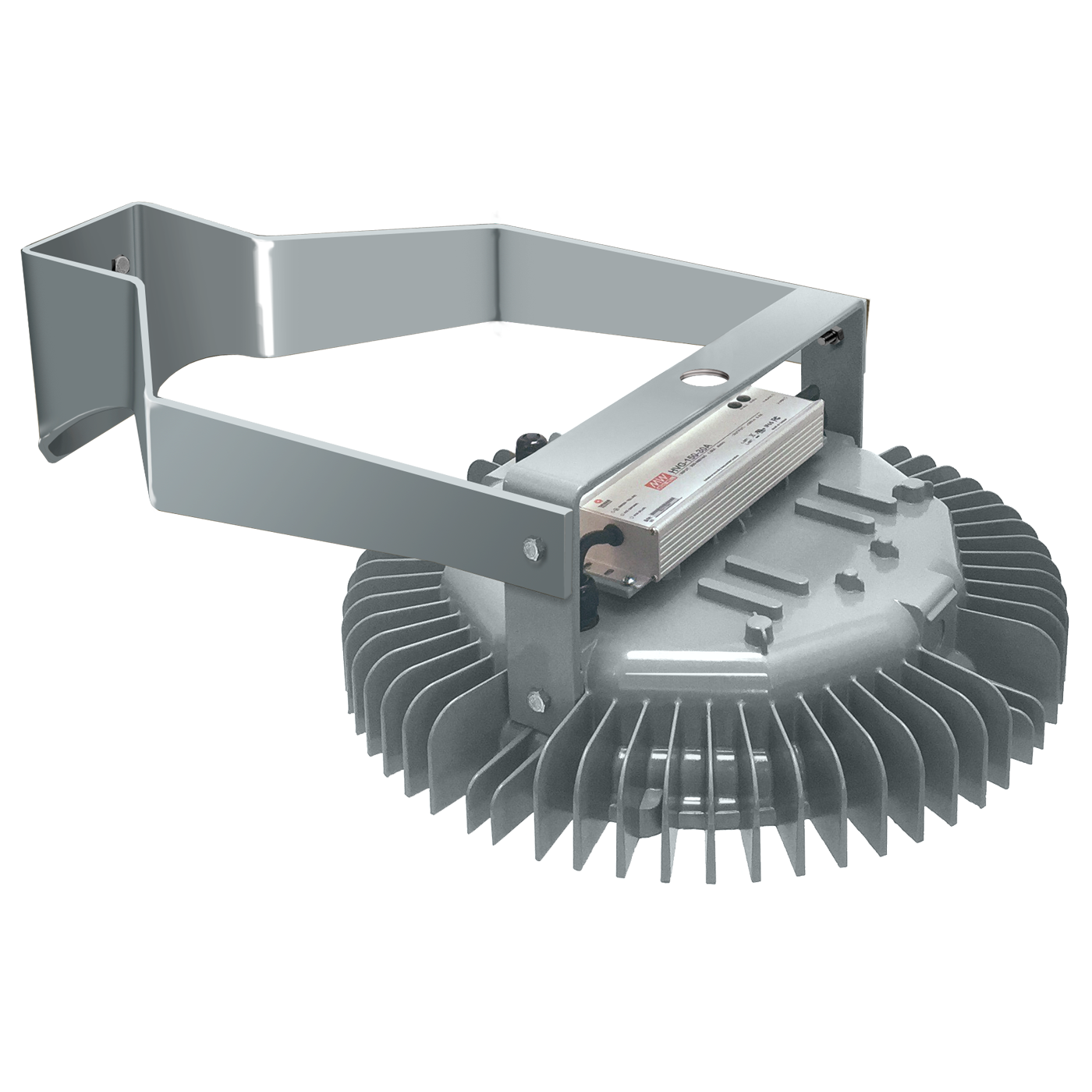

See specification sheet for product ordering selection, mounting options, weights and dimensions.
